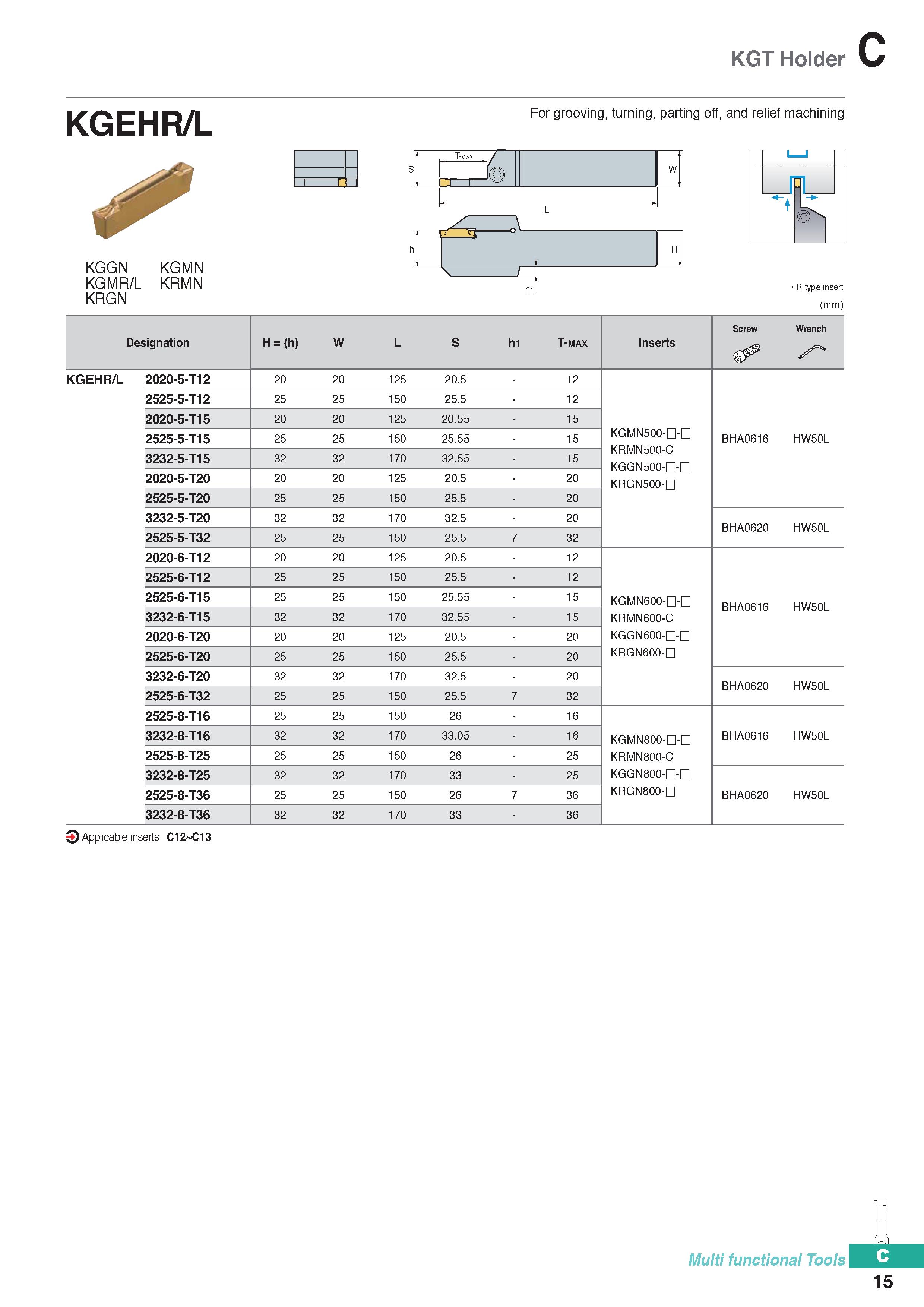

KGT Holder KGEHR/L KGGN KGMN KGMR/L KRMN KRGN For grooving, turning, parting off, and relief machining ' T-ma / j H R type insert (mm) Designation H = (h) W L s hi T-max Inserts Screw Wrench KGEHR/L 2020-5-T12 20 20 125 20.5 - 12 2525-5-T12 25 25 150 25.5 - 12 2020-5-T15 20 20 125 20.55 - 15 2525-5-T15 25 25 150 25.55 - 15 KGMN500-QD KRMN500-C KGGN500-QD KRGN500-D BHA0616 HW50L 3232-5-T15 32 32 170 32.55 - 15 2020-5-T20 20 20 125 20.5 - 20 2525-5-T20 25 25 150 25.5 - 20 3232-5-T20 32 32 170 32.5 - 20 BHA0620 HW50L 2525-5-T32 25 25 150 25.5 7 32 2020-6-T12 20 20 125 20.5 - 12 2525-6-T12 25 25 150 25.5 - 12 2525-6-T15 25 25 150 25.55 - 15 KGMN600-QD BHA0616 HW50L 3232-6-T15 32 32 170 32.55 - 15 KRMN600-C 2020-6-T20 20 20 125 20.5 - 20 KGGN600-QD 2525-6-T20 25 25 150 25.5 - 20 KRGN600-D 3232-6-T20 32 32 170 32.5 - 20 BHA0620 HW50L 2525-6-T32 25 25 150 25.5 7 32 2525-8-T16 25 25 150 26 - 16 3232-8-T16 32 32 170 33.05 - 16 KGMN800-QD BHA0616 HW50L 2525-8-T25 25 25 150 26 - 25 KRMN800-C 3232-8-T25 32 32 170 33 - 25 KGGN800-D-D 2525-8-T36 25 25 150 26 7 36 KRGN800-D BHA0620 HW50L 3232-8-T36 32 32 170 33 - 36 3 Applicable inserts C12 C13 S W L h Multi functional Tools mu 15
