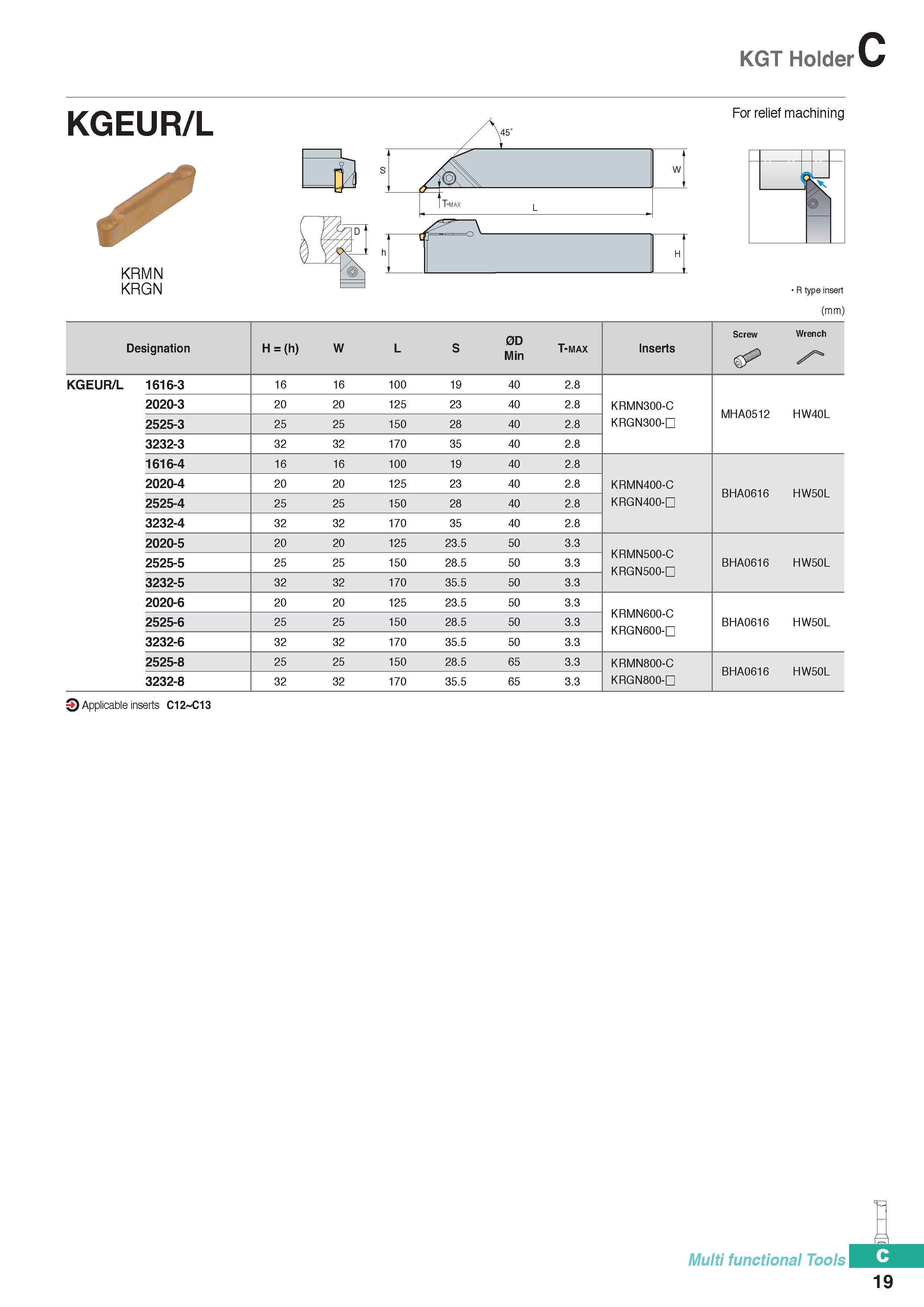

KGT Holder KGEUR/L KRMN KRGN For relief machining R type insert (mm) Designation H = (h) W L s 0D Min T-max Inserts Screw L ‘ Wrench KGEUR/L 1616-3 16 16 100 19 40 2.8 2020-3 20 20 125 23 40 2.8 KRMN300-C MHA0512 HW40L 2525-3 25 25 150 28 40 2.8 KRGN300-D 3232-3 32 32 170 35 40 2.8 1616-4 16 16 100 19 40 2.8 2020-4 20 20 125 23 40 2.8 KRMN400-C BHA0616 HW50L 2525-4 25 25 150 28 40 2.8 KRGN400-D 3232-4 32 32 170 35 40 2.8 2020-5 20 20 125 23.5 50 3.3 KRMN500-C KRGN500-D 2525-5 25 25 150 28.5 50 3.3 BHA0616 HW50L 3232-5 32 32 170 35.5 50 3.3 2020-6 20 20 125 23.5 50 3.3 KRMN600-C KRGN600-D 2525-6 25 25 150 28.5 50 3.3 BHA0616 HW50L 3232-6 32 32 170 35.5 50 3.3 2525-8 25 25 150 28.5 65 3.3 KRMN800-C BHA0616 HW50L 3232-8 32 32 170 35.5 65 3.3 KRGN800-D Applicable inserts C12 C13 Multi functional Tools mu 19
