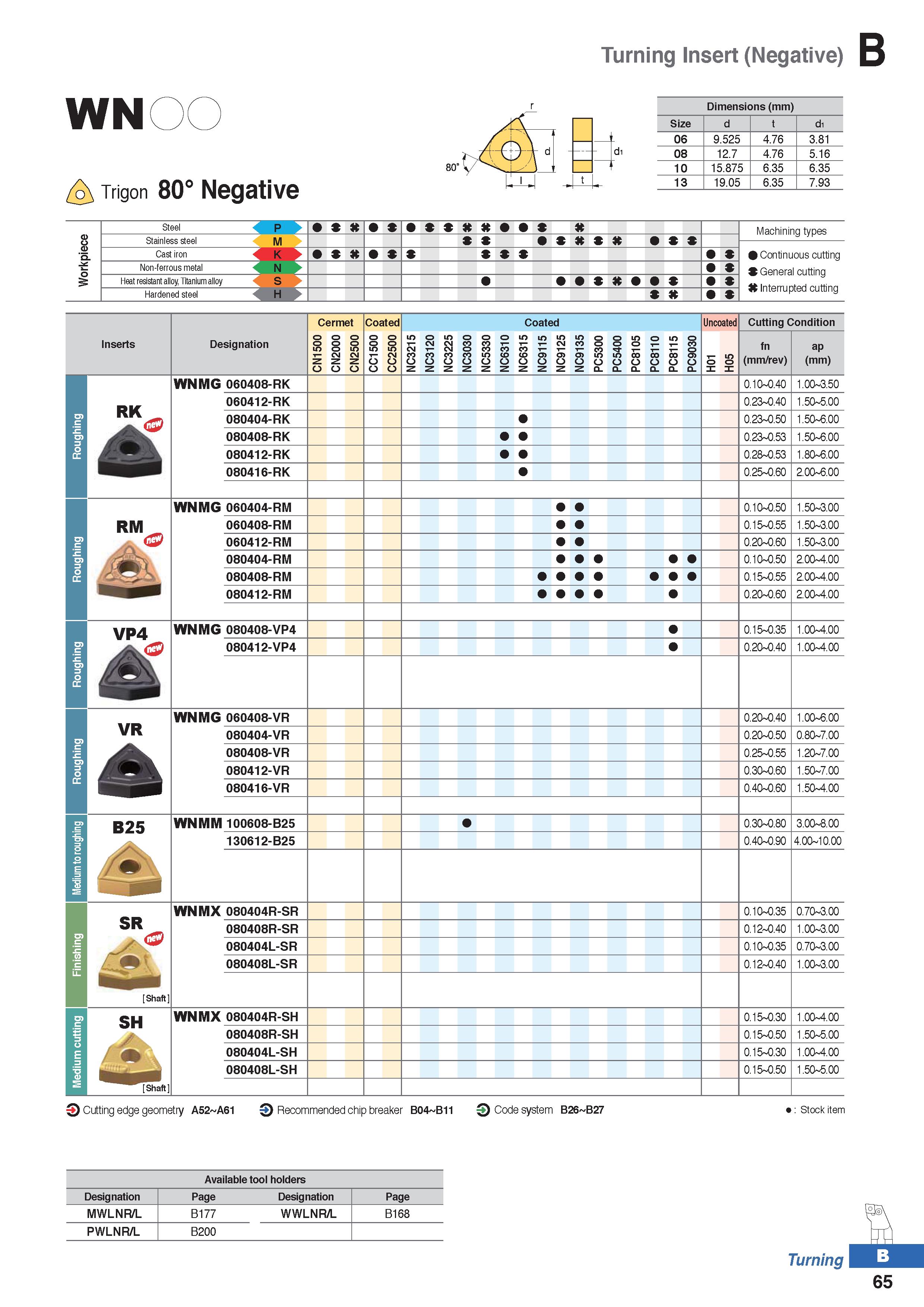

Turning Insert (Negative) WN Trigon 80° Negative Dimensions (mm) Size d t d1 06 9.525 4.76 3.81 08 12.7 4.76 5.16 10 15.875 6.35 6.35 13 19.05 6.35 7.93 Steel 4 Machining types e c Stainless steel M S s ie pi Cast iron K 0 Continuous cutting Non-ferrous metal N S General cutting Heat resistant alloy, Titanium alloy S Hardened steel A H It Interrupted cutting Inserts Designation Cermet Coated Coated Uncoated Cutting Condition 000 000 m o m t- N W NNN oo o 00 00 in in i- CJ CC 5050005555005050 i-cjcjeoeo- -cje - -eo cj-i-cjoeoeoeo-i i i-eo i i i-o cocococoin 0 0o>o>o>inincococoo> zzzzzzzzzza.a.a.a.a.0. H01 H05 fn (mm/rev) ap (mm) RK jo WNMG 060408-RK 0.10-0.40 1.00-3.50 060412-RK 0.23-0.40 1.50-5.00 080404-RK 0.23-0.50 1.50-6.00 080408-RK 0.23-0.53 1.50-6.00 080412-RK 0.28-0.53 1.80-6.00 080416-RK 0.25-0.60 2.00-6.00 RM WNMG 060404-RM 0.10-0.50 1.50-3.00 060408-RM 0.15-0.55 1.50-3.00 060412-RM 0.20-0.60 1.50-3.00 080404-RM 0.10-0.50 2.00-4.00 080408-RM 0.15-0.55 2.00-4.00 iUrn 080412-RM 0.20-0.60 2.00-4.00 VP4 WNMG 080408-VP4 0.15-0.35 1.00-4.00 080412-VP4 0.20-0.40 1.00-4.00 VR A WNMG 060408-VR 0.20-0.40 1.00-6.00 080404-VR 0.20-0.50 0.80-7.00 080408-VR 0.25-0.55 1.20-7.00 080412-VR 0.30-0.60 1.50-7.00 080416-VR 0.40-0.60 1.50-4.00 B25 WNMM 100608-B25 0.30-0.80 3.00-8.00 130612-B25 0.40-0.90 4.00-10.00 SR / mm Shaft WNMX 080404R-SR 0.10-0.35 0.70-3.00 080408R-SR 0.12-0.40 1.00-3.00 080404L-SR 0.10-0.35 0.70-3.00 080408L-SR 0.12-0.40 1.00-3.00 SH WNMX 080404R-SH 0.15-0.30 1.00-4.00 080408R-SH 0.15-0.50 1.50-5.00 080404L-SH 0.15-0.30 1.00-4.00 080408L-SH 0.15-0.50 1.50-5.00 Shaft 0 Cutting edge geometry A52 A61 0 Recommended chip breaker B04 B11 0 Code system B26 B27 Stock item Available tool holders Designation Page Designation Page MWLNR/L B177 WWLNR/L B168 PWLNR/L B200 Turning 65
