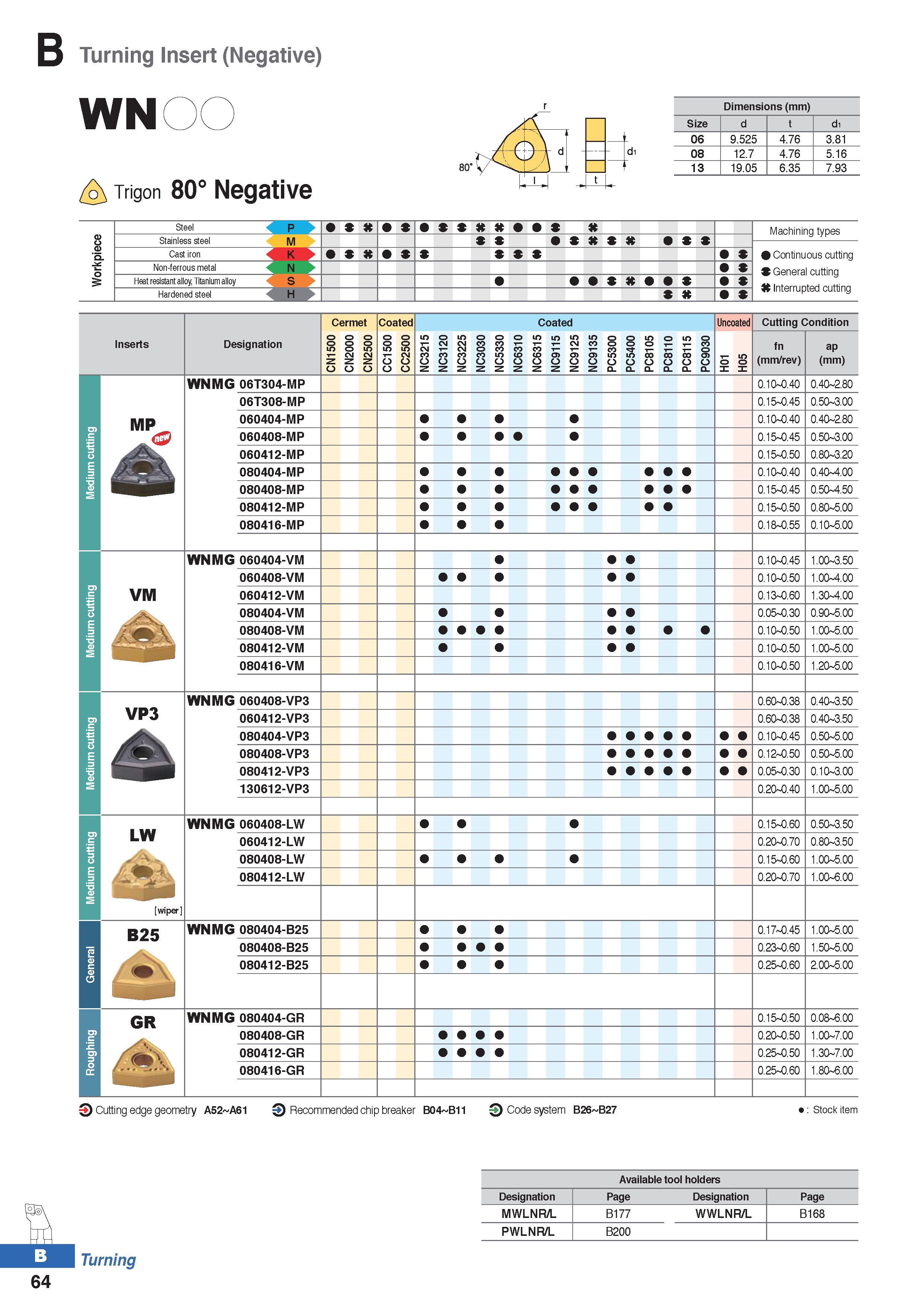

Turning Insert (Negative) WN Trigon 80° Negative Dimensions (mm) Size d t d1 06 9.525 4.76 3.81 08 12.7 4.76 5.16 13 19.05 6.35 7.93 Steel P tt Machining types e c Stainless steel M s s It ie pi Cast iron K 0 Continuous cutting Non-ferrous metal N % General cutting Heat resistant alloy, Titanium alloy S Hardened steel H K Interrupted cutting Inserts Designation Cermet Coated Coated Uncoated Cutting Condition CN1500 CN2000 CN2500 CC1500 CC2500 NC3215 NC3120 NC3225 NC3030 NC5330 NC6310 NC6315 NC9115 NC9125 NC9135 PC5300 PC5400 PC8105 PC8110 PC8115 0 3 0 9 C 0. 01 H H05 fn (mm/rev) ap (mm) Medium cutting MP WNMG 06T304-MP 0.10 0.40 0.40-2.80 06T308-MP 0.15 0.45 0.50-3.00 060404-MP 0.10 0.40 0.40-2.80 060408-MP 0.15 0.45 0.50-3.00 060412-MP 0.15 0.50 0.80-3.20 080404-MP 0.10 0.40 0.40 4.00 080408-MP 0.15 0.45 0.50 4.50 080412-MP 0.15 0.50 0.80 5.00 080416-MP 0.18 0.55 0.10 5.00 Medium cutting VM WNMG 060404-VM 0.10 0.45 1.00-3.50 060408-VM 0.10 0.50 1.00 4.00 060412-VM 0.13 0.60 1.30 4.00 080404-VM 0.05 0.30 0.90 5.00 080408-VM 0.10 0.50 1.00-5.00 080412-VM 0.10 0.50 1.00-5.00 080416-VM 0.10 0.50 1.20 5.00 g in tti u c m iu di e M VP3 WNMG 060408-VP3 0.60 0.38 0.40-3.50 060412-VP3 0.60 0.38 0.40-3.50 080404-VP3 0.10 0.45 0.50 5.00 080408-VP3 0.12 0.50 0.50 5.00 080412-VP3 0.05 0.30 0.10-3.00 130612-VP3 0.20 0.40 1.00-5.00 g in tti u c m iu di e M LW & wiper WNMG 060408-LW 0.15 0.60 0.50-3.50 060412-LW 0.20 0.70 0.80-3.50 080408-LW 0.15 0.60 1.00-5.00 080412-LW 0.20 0.70 1.00-6.00 General B25 WNMG 080404-B25 0.17 0.45 1.00-5.00 080408-B25 0.23 0.60 1.50-5.00 080412-B25 0.25 0.60 2.00-5.00 Roughing GR /% WNMG 080404-GR 0.15 0.50 0.08-6.00 080408-GR 0.20 0.50 1.00-7.00 080412-GR 0.25 0.50 1.30-7.00 080416-GR 0.25 0.60 1.80-6.00 Cutting edge geometry A52 A61 0 Recommended chip breaker B04 B11 0 Code system B26 B27 Stock item Turning 64 Available tool holders Designation Page Designation Page MWLNR/L B177 WWLNR/L B168 PWLNR/L B200
