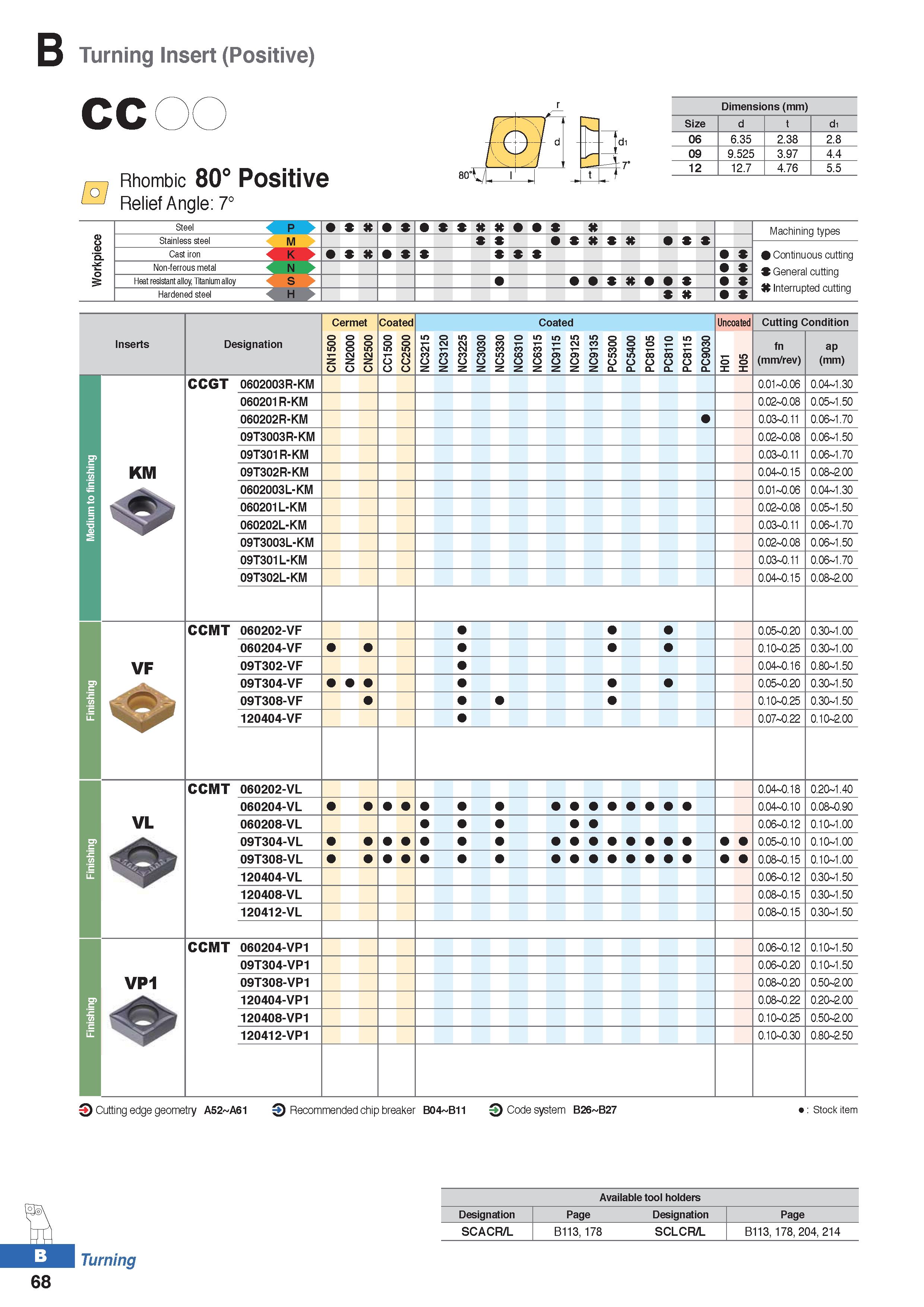

Turning Insert (Positive) CC Rhombic 80° Positive Relief Angle: 7° MId Dimensions (mm) Size d t d1 06 6.35 2.38 2.8 09 9.525 3.97 4.4 12 12.7 4.76 5.5 Steel P Machining types a) o Stainless steel M s s It 'a. Cast iron K 0 Continuous cutting Non-ferrous metal N % General cutting Heat resistant alloy, Titanium alloy S Hardened steel H K Interrupted cutting Inserts Designation Cermet Coated Coated Uncoated Cutting Condition CN1500 CN2000 CN2500 CC1500 CC2500 NC3215 NC3120 5 CN 3 C N NC3030 NC5330 NC6310 NC6315 NC9115 NC9125 NC9135 PC5300 PC5400 PC8105 PC8110 5 81 C P PC9030 01 X H05 fn (mm/rev) ap (mm) KM CCGT 0602003R-KM 0.01 0.06 0.04-1.30 060201R-KM 0.02 0.08 0.05-1.50 060202R-KM 0.03-0.11 0.06-1.70 09T3003R-KM 0.02 0.08 0.06-1.50 09T301R-KM 0.03-0.11 0.06-1.70 09T302R-KM 0.04-0.15 0.08-2.00 0602003L-KM 0.01-0.06 0.04-1.30 060201L-KM 0.02-0.08 0.05-1.50 060202L-KM 0.03-0.11 0.06-1.70 09T3003L-KM 0.02-0.08 0.06-1.50 09T301L-KM 0.03-0.11 0.06-1.70 09T302L-KM 0.04-0.15 0.08-2.00 VF ❖ CCMT 060202-VF 0.05-0.20 0.30-1.00 060204-VF 0.10-0.25 0.30-1.00 09T302-VF 0.04-0.16 0.80-1.50 09T304-VF 0.05-0.20 0.30-1.50 09T308-VF 0.10-0.25 0.30-1.50 120404-VF H H H H H 1 0.07-0.22 0.10-2.00 VL CCMT 060202-VL 0.04-0.18 0.20-1.40 060204-VL 0.04-0.10 0.08-0.90 060208-VL 0.06-0.12 0.10-1.00 09T304-VL 0.05-0.10 0.10-1.00 09T308-VL 0.08-0.15 0.10-1.00 120404-VL 0.06-0.12 0.30-1.50 120408-VL 0.08-0.15 0.30-1.50 120412-VL 0.08-0.15 0.30-1.50 VP1 CCMT 060204-VP1 0.06-0.12 0.10-1.50 09T304-VP1 0.06-0.20 0.10-1.50 09T308-VP1 0.08-0.20 0.50-2.00 120404-VP1 0.08-0.22 0.20-2.00 120408-VP1 0.10-0.25 0.50-2.00 120412-VP1 0.10-0.30 0.80-2.50 Cutting edge geometry A52 A61 0 Recommended chip breaker B04 B11 0 Code system B26 B27 Stock item Available tool holders Designation Page Designation Page SCACR/L B113, 178 SCLCR/L B113, 178, 204, 214 Turning 68
