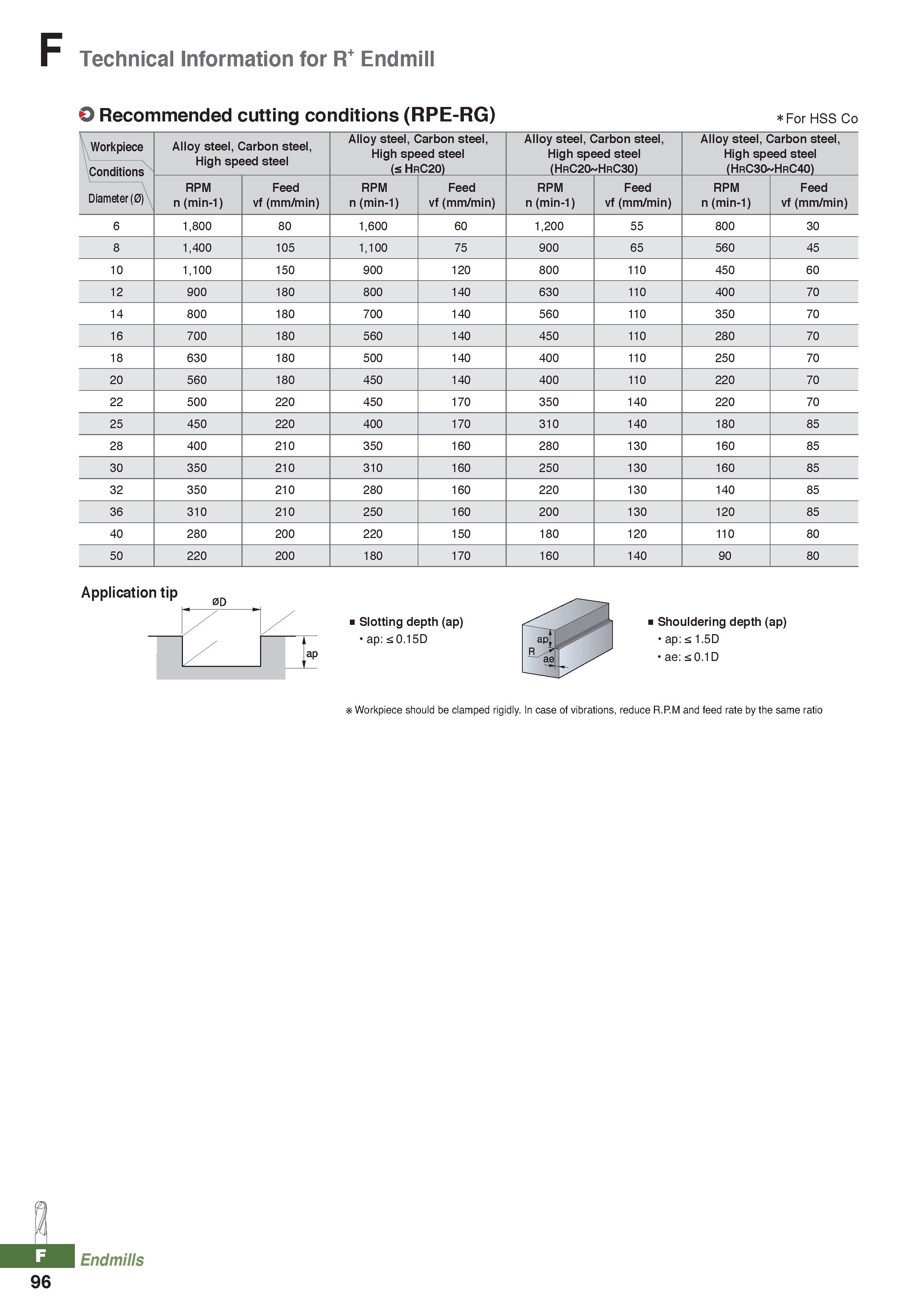

Technical Information for R+ Endmill O Recommended cutting conditions (RPE-RG) For HSS Co Workpiece Alloy steel, Carbon steel, High speed steel Alloy steel, Carbon steel, High speed steel (s HrC20) Alloy steel, Carbon steel, High speed steel (HrC20 HrC30) Alloy steel, Carbon steel, High speed steel (HrC30 HrC40) Conditions RPM Feed RPM Feed RPM Feed RPM Feed Diameter (0) n (min-1) vf (mm/min) n (min-1) vf (mm/min) n (min-1) vf (mm/min) n (min-1) vf (mm/min) 6 1,800 80 1,600 60 1,200 55 800 30 8 1,400 105 1,100 75 900 65 560 45 10 1,100 150 900 120 800 110 450 60 12 900 180 800 140 630 110 400 70 14 800 180 700 140 560 110 350 70 16 700 180 560 140 450 110 280 70 18 630 180 500 140 400 110 250 70 20 560 180 450 140 400 110 220 70 22 500 220 450 170 350 140 220 70 25 450 220 400 170 310 140 180 85 28 400 210 350 160 280 130 160 85 30 350 210 310 160 250 130 160 85 32 350 210 280 160 220 130 140 85 36 310 210 250 160 200 130 120 85 40 280 200 220 150 180 120 110 80 50 220 200 180 170 160 140 90 80 Workpiece should be clamped rigidly. In case of vibrations, reduce R.P.M and feed rate by the same ratio Endmills 96
