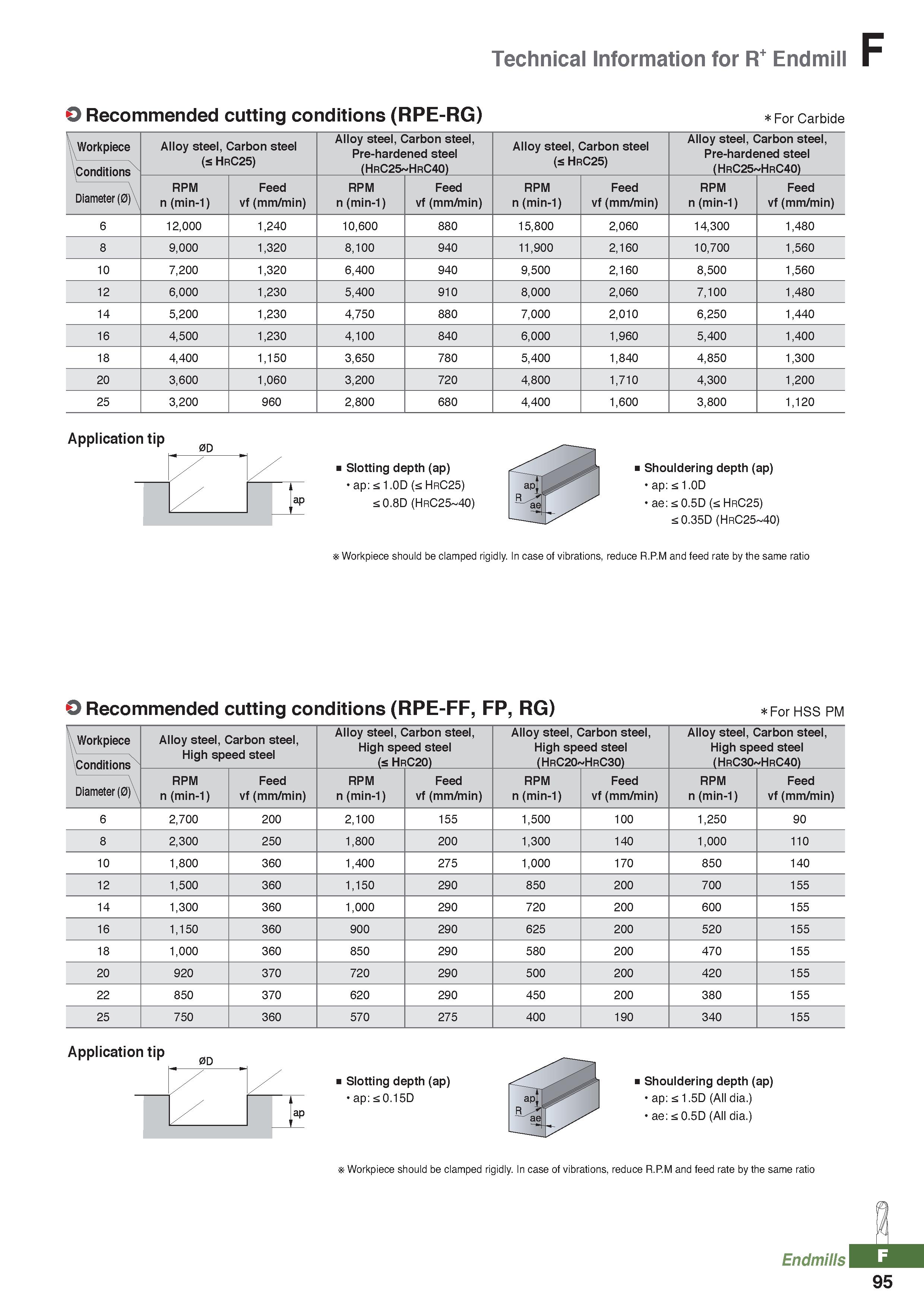

Technical Information for R+ Endmill O Recommended cutting conditions (RPE-RG) For Carbide Workpiece Conditions Alloy steel, Carbon steel (s HrC25) Alloy steel, Carbon steel, Pre-hardened steel (HrC25 HrC40) Alloy steel, Carbon steel (s HrC25) Alloy steel, Carbon steel, Pre-hardened steel (HrC25 HrC40) Diameter (0) RPM n (min-1) Feed vf (mm/min) RPM n (min-1) Feed vf (mm/min) RPM n (min-1) Feed vf (mm/min) RPM n (min-1) Feed vf (mm/min) 6 12,000 1,240 10,600 880 15,800 2,060 14,300 1,480 8 9,000 1,320 8,100 940 11,900 2,160 10,700 1,560 10 7,200 1,320 6,400 940 9,500 2,160 8,500 1,560 12 6,000 1,230 5,400 910 8,000 2,060 7,100 1,480 14 5,200 1,230 4,750 880 7,000 2,010 6,250 1,440 16 4,500 1,230 4,100 840 6,000 1,960 5,400 1,400 18 4,400 1,150 3,650 780 5,400 1,840 4,850 1,300 20 3,600 1,060 3,200 720 4,800 1,710 4,300 1,200 25 3,200 960 2,800 680 4,400 1,600 3,800 1,120 Application tip 0D Jap Slotting depth (ap) ap:a1.0D(sHRC25) s0.8D (HrC25-40) Shouldering depth (ap) ap:a1.0D ae:a0.5D(sHRC25) S0.35D (HrC25-40) Workpiece should be clamped rigidly. In case of vibrations, reduce R.P.M and feed rate by the same ratio O Recommended cutting conditions (RPE-FF, FP, RG) For hss pm Workpiece Conditions Alloy steel, Carbon steel, High speed steel Alloy steel, Carbon steel, High speed steel (s HrC20) Alloy steel, Carbon steel, High speed steel (HrC20 HrC30) Alloy steel, Carbon steel, High speed steel (HrC30 HrC40) Diameter (0) RPM n (min-1) Feed vf (mm/min) RPM n (min-1) Feed vf (mm/min) RPM n (min-1) Feed vf (mm/min) RPM n (min-1) Feed vf (mm/min) 6 2,700 200 2,100 155 1,500 100 1,250 90 8 2,300 250 1,800 200 1,300 140 1,000 110 10 1,800 360 1,400 275 1,000 170 850 140 12 1,500 360 1,150 290 850 200 700 155 14 1,300 360 1,000 290 720 200 600 155 16 1,150 360 900 290 625 200 520 155 18 1,000 360 850 290 580 200 470 155 20 920 370 720 290 500 200 420 155 22 850 370 620 290 450 200 380 155 25 750 360 570 275 400 190 340 155 Application tip 0D Jap Slotting depth (ap) ap:a0.15D Shouldering depth (ap) ap:a1.5D (All dia.) ae: a 0.5D (All dia.) Workpiece should be clamped rigidly. In case of vibrations, reduce R.P.M and feed rate by the same ratio Endmill 95
