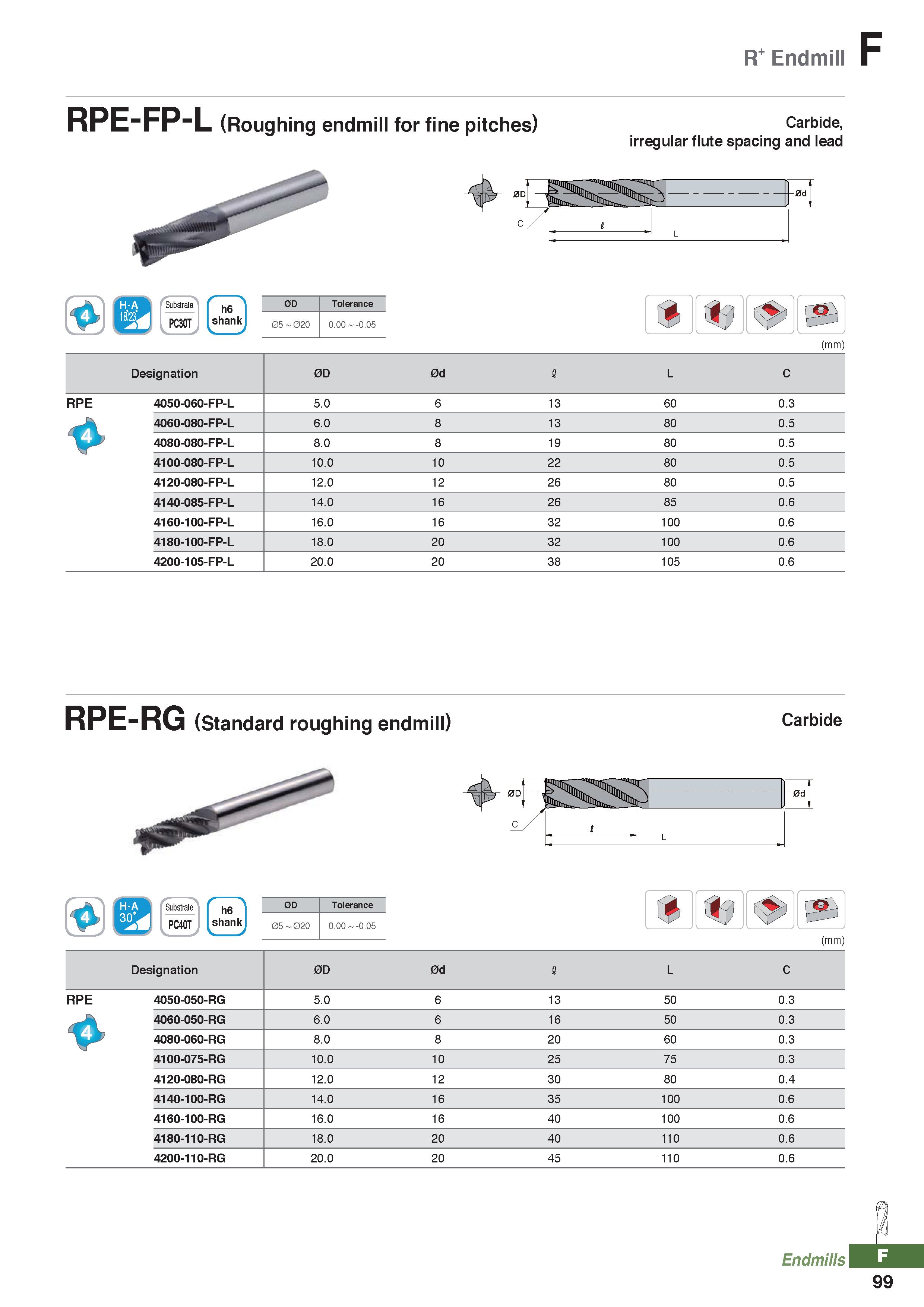

R Endmill F RPE-FP-L (Roughing endmill for fine pitches) ( ) Carbide, irregular flute spacing and lead h6 shank 0D Tolerance 05 - 020 0.00 - -0.05 % \ i L (mm) Designation 0D 0d I L C RPE 4050-060-FP-L 5.0 6 13 60 0.3 4060-080-FP-L 6.0 8 13 80 0.5 4080-080-FP-L 8.0 8 19 80 0.5 4100-080-FP-L 10.0 10 22 80 0.5 4120-080-FP-L 12.0 12 26 80 0.5 4140-085-FP-L 14.0 16 26 85 0.6 4160-100-FP-L 16.0 16 32 100 0.6 4180-100-FP-L 18.0 20 32 100 0.6 4200-105-FP-L 20.0 20 38 105 0.6 RPE-RG (Standard roughing endmill) (3) PC40T h6 shank 0D Tolerance 05 - 020 0.00 - -0.05 % 'tl> Carbide I L (mm) Designation 0D 0d I L C RPE 4050-050-RG 5.0 6 13 50 0.3 4060-050-RG 6.0 6 16 50 0.3 4080-060-RG 8.0 8 20 60 0.3 4100-075-RG 10.0 10 25 75 0.3 4120-080-RG 12.0 12 30 80 0.4 4140-100-RG 14.0 16 35 100 0.6 4160-100-RG 16.0 16 40 100 0.6 4180-110-RG 18.0 20 40 110 0.6 4200-110-RG 20.0 20 45 110 0.6 Endmills J. 99 C Substrate
