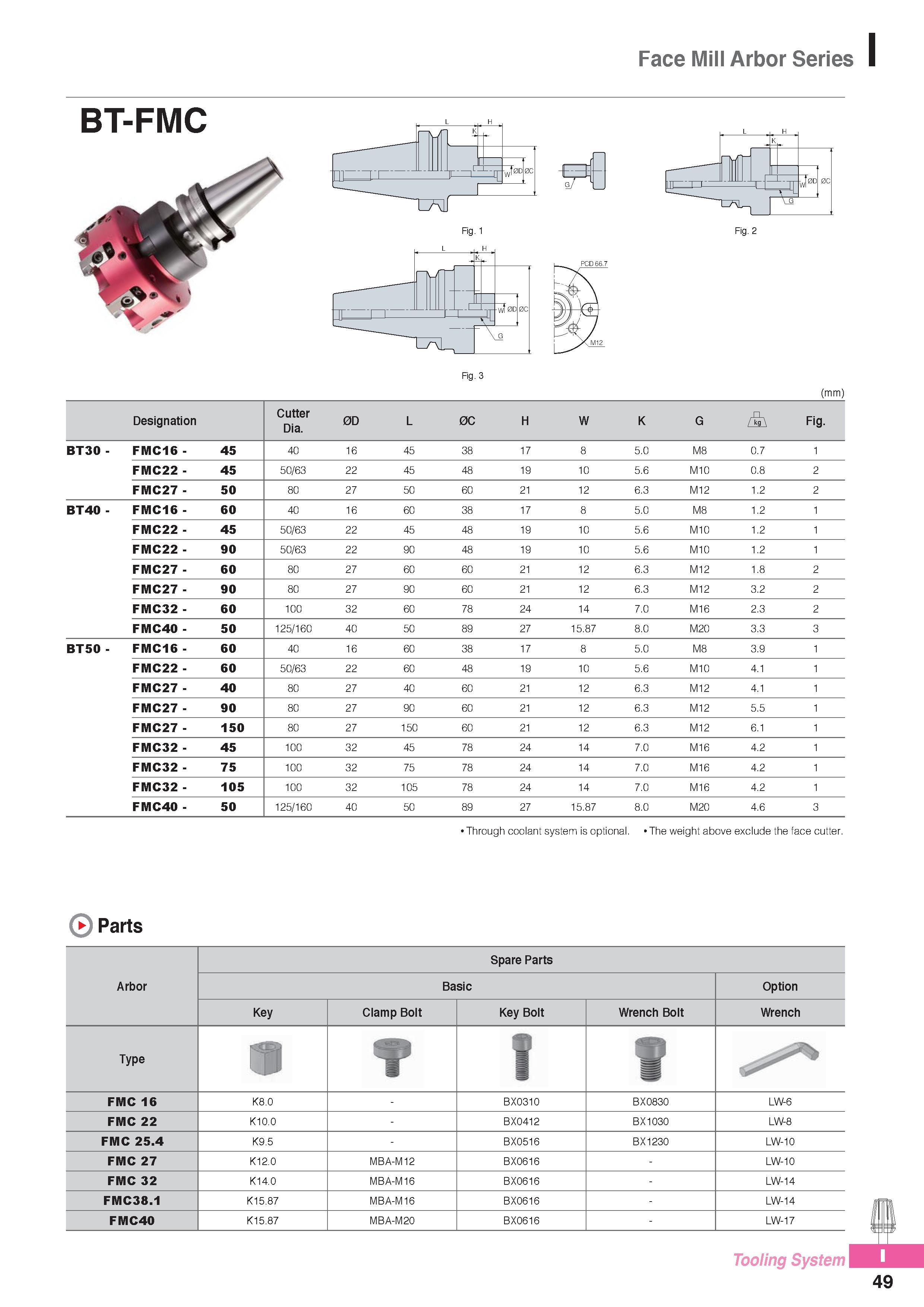

Face Mill Arbor Series BT-FMC K In rn "71" W0D 0C -4 Fig. 2 Fig. 3 (mm) Designation Cutter Dia. 0D L 0C H W K G A Fig. BT30 - FMC16 - 45 40 16 45 38 17 8 5.0 M8 0.7 1 FMC22 - 45 50/63 22 45 48 19 10 5.6 M10 0.8 2 FMC27 - 50 80 27 50 60 21 12 6.3 M12 1.2 2 BT40 - FMC16 - 60 40 16 60 38 17 8 5.0 M8 1.2 1 FMC22 - 45 50/63 22 45 48 19 10 5.6 M10 1.2 1 FMC22 - 90 50/63 22 90 48 19 10 5.6 M10 1.2 1 FMC27 - 60 80 27 60 60 21 12 6.3 M12 1.8 2 FMC27 - 90 80 27 90 60 21 12 6.3 M12 3.2 2 FMC32 - 60 100 32 60 78 24 14 7.0 M16 2.3 2 FMC40 - 50 125/160 40 50 89 27 15.87 8.0 M20 3.3 3 BT50 - FMC16 - 60 40 16 60 38 17 8 5.0 M8 3.9 1 FMC22 - 60 50/63 22 60 48 19 10 5.6 M10 4.1 1 FMC27 - 40 80 27 40 60 21 12 6.3 M12 4.1 1 FMC27 - 90 80 27 90 60 21 12 6.3 M12 5.5 1 FMC27 - 150 80 27 150 60 21 12 6.3 M12 6.1 1 FMC32 - 45 100 32 45 78 24 14 7.0 M16 4.2 1 FMC32 - 75 100 32 75 78 24 14 7.0 M16 4.2 1 FMC32 - 105 100 32 105 78 24 14 7.0 M16 4.2 1 FMC40 - 50 125/160 40 50 89 27 15.87 8.0 M20 4.6 3 Through coolant system is optional. The weight above exclude the face cutter. Parts Arbor Spare Parts Basic Option Key Clamp Bolt Key Bolt Wrench Bolt Wrench Type m T I V FMC 16 K8.0 - BX0310 BX0830 LW-6 FMC 22 K10.0 - BX0412 BX1030 LW-8 FMC 25.4 K9.5 - BX0516 BX1230 LW-10 FMC 27 K12.0 MBA-M12 BX0616 - LW-10 FMC 32 K14.0 MBA-M16 BX0616 - LW-14 FMC38.1 K15.87 MBA-M16 BX0616 - LW-14 FMC40 K15.87 MBA-M20 BX0616 - LW-17 Tooling Syste l 49
