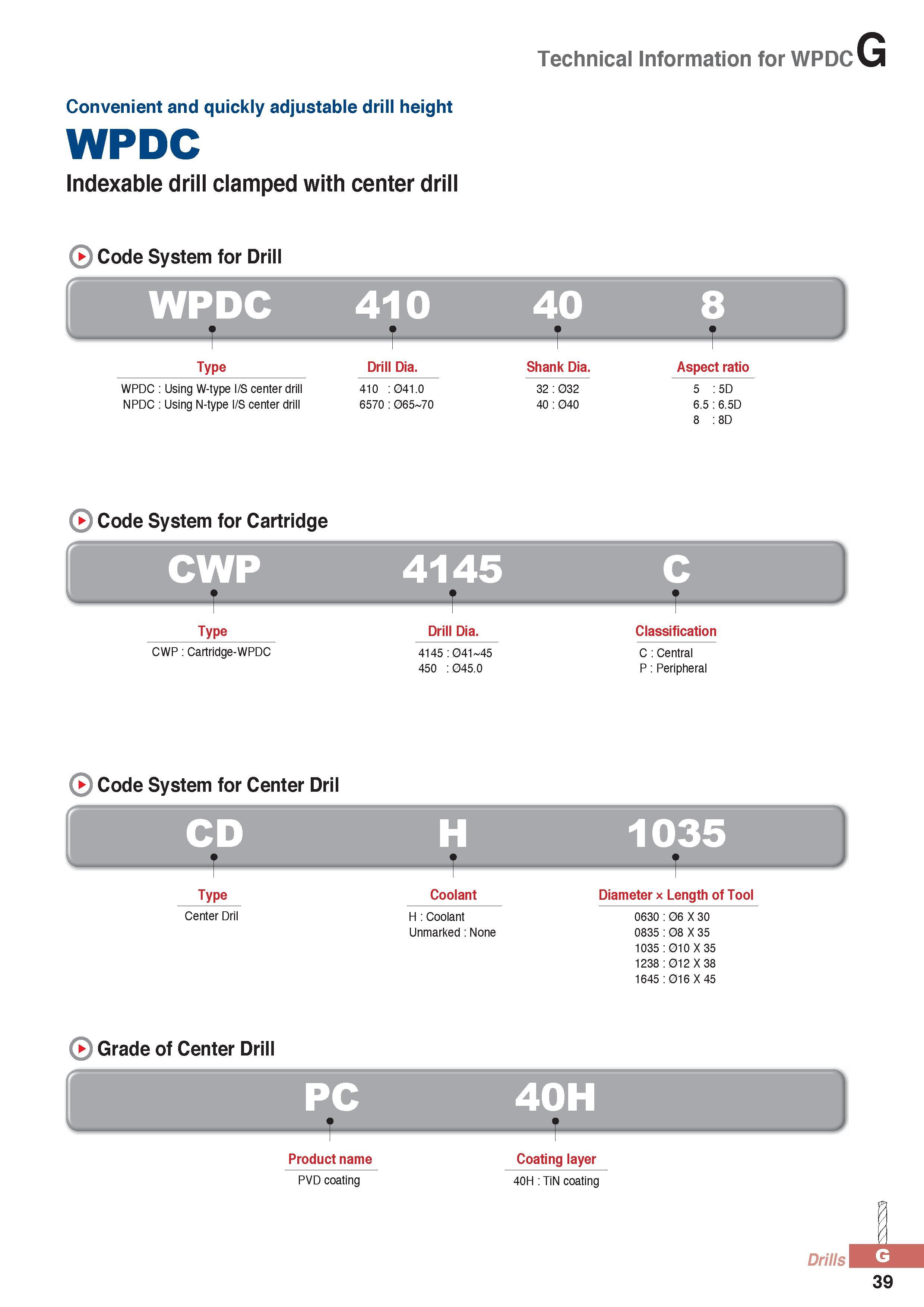

Technical Information for WPDC Convenient and quickly adjustable drill height WPDC Indexable drill clamped with center drill Code System for Drill WPDC 410 40 8 1 A Type Drill Dia. Shank Dia. Aspect ratio WPDC Using W-type I/S center drill NPDC Using N-type I/S center drill 410 041.0 6570 065 70 32 032 40 040 5 5D 6.5 6.5D 8 8D Code System for Cartridge CWP k. 4145 - 1 C Type Drill Dia. Classification CWP Cartridge-WPDC 4145 041 45 450 045.0 C Central P Peripheral Code System for Center Dril CD H 1035 1 J Type Coolant Diameter x Length of Tool Center Dril H Coolant Unmarked None 0630 0835 1035 1238 1645 06 X 30 08 X 35 010 X 35 012 X 38 016 X 45 Grade of Center Drill y PC 40H 1 J Product name Coating layer PVD coating 40H TiN coating J. 39
