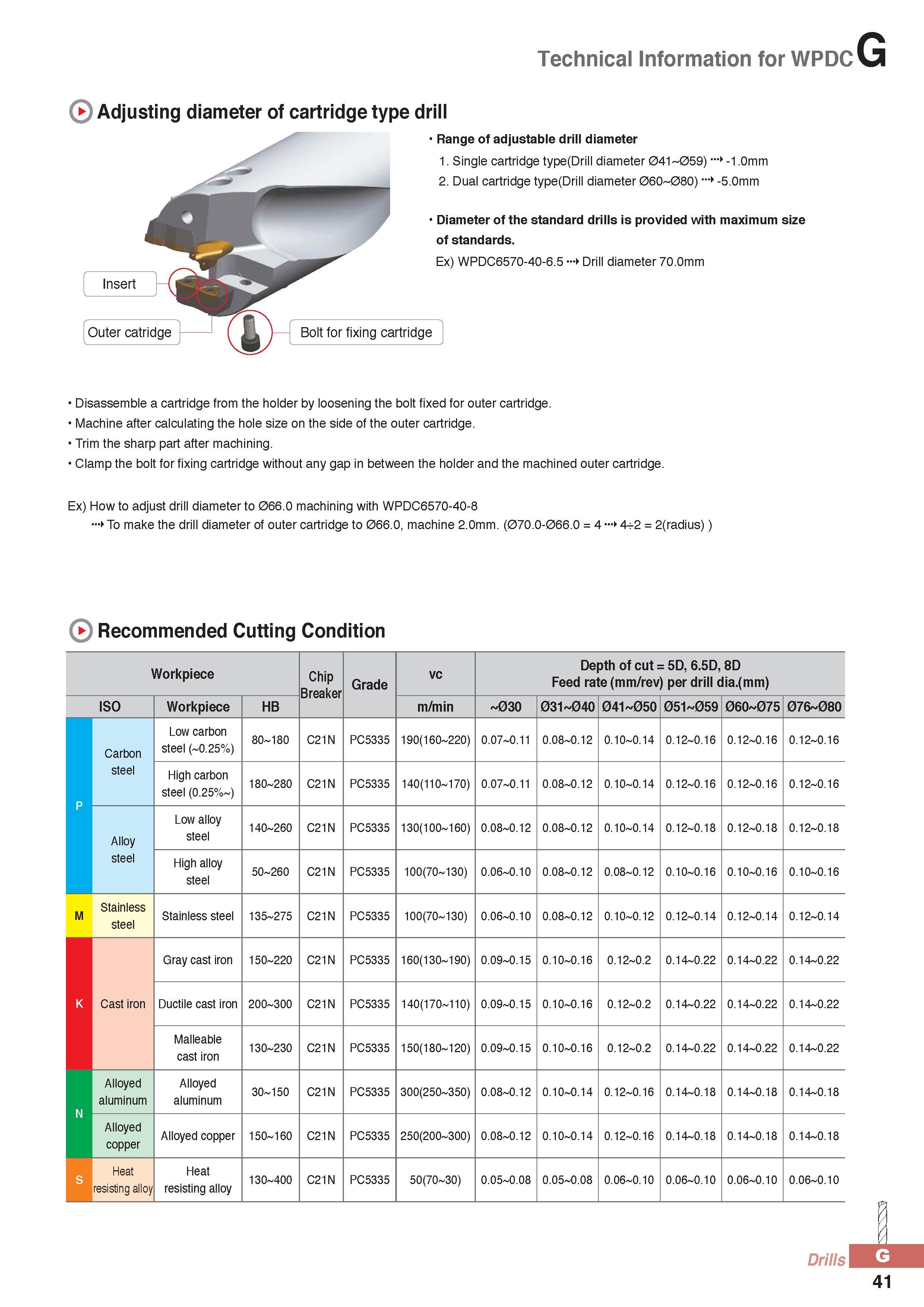

Technical Information for WPDC Adjusting diameter of cartridge type drill Range of adjustable drill diameter 1. Single cartridge type(Drill diameter 041-059) -1.0mm 2. Dual cartridge type(Drill diameter 060-080) -5.0mm Diameter of the standard drills is provided with maximum size of standards. Ex) WPDC6570-40-6.5 Drill diameter 70.0mm Disassemble a cartridge from the holder by loosening the bolt fixed for outer cartridge. Machine after calculating the hole size on the side of the outer cartridge. Trim the sharp part after machining. Clamp the bolt for fixing cartridge without any gap in between the holder and the machined outer cartridge. Ex) How to adjust drill diameter to 066.0 machining with WPDC6570-40-8 To make the drill diameter of outer cartridge to 066.0, machine 2.0mm. (070.0-066.0 = 4 4 2 = 2(radius) ) Recommended Cutting Condition Workpiece Chip Breaker Grade vc Depth of cut = 5D, 6.5D, 8D Feed rate (mm/rev) per drill dia.(mm) ISO Workpiece HB m/min 03O 031 04O 041 05O 051 059 06O 075 076 08O Carbon Low carbon steel (-0.25%) 80-180 C21N PC5335 190(160-220) 0.07-0.11 0.08-0.12 0.10-0.14 0.12-0.16 0.12-0.16 0.12-0.16 steel High carbon steel (0.25%-) 180-280 C21N PC5335 140(110-170) 0.07-0.11 0.08-0.12 0.10-0.14 0.12-0.16 0.12-0.16 0.12-0.16 p P Alloy Low alloy steel 140-260 C21N PC5335 130(100-160) 0.08-0.12 0.08-0.12 0.10-0.14 0.12-0.18 0.12-0.18 0.12-0.18 steel High alloy steel 50-260 C21N PC5335 100(70-130) 0.06-0.10 0.08-0.12 0.08-0.12 0.10-0.16 0.10-0.16 0.10-0.16 M Stainless steel Stainless steel 135-275 C21N PC5335 100(70-130) 0.06-0.10 0.08-0.12 0.10-0.12 0.12-0.14 0.12-0.14 0.12-0.14 Gray cast iron 150-220 C21N PC5335 160(130-190) 0.09-0.15 0.10-0.16 0.12-0.2 0.14-0.22 0.14-0.22 0.14-0.22 K Cast iron Ductile cast iron 200-300 C21N PC5335 140(170-110) 0.09-0.15 0.10-0.16 0.12-0.2 0.14-0.22 0.14-0.22 0.14-0.22 Malleable cast iron 130-230 C21N PC5335 150(180-120) 0.09-0.15 0.10-0.16 0.12-0.2 0.14-0.22 0.14-0.22 0.14-0.22 N Alloyed aluminum Alloyed aluminum 30-150 C21N PC5335 300(250-350) 0.08-0.12 0.10-0.14 0.12-0.16 0.14-0.18 0.14-0.18 0.14-0.18 Alloyed copper Alloyed copper 150-160 C21N PC5335 250(200-300) 0.08-0.12 0.10-0.14 0.12-0.16 0.14-0.18 0.14-0.18 0.14-0.18 S Heat resisting alloy Heat resisting alloy 130-400 C21N PC5335 50(70-30) 0.05-0.08 0.05-0.08 0.06-0.10 0.06-0.10 0.06-0.10 0.06-0.10 “J- Drill 41
