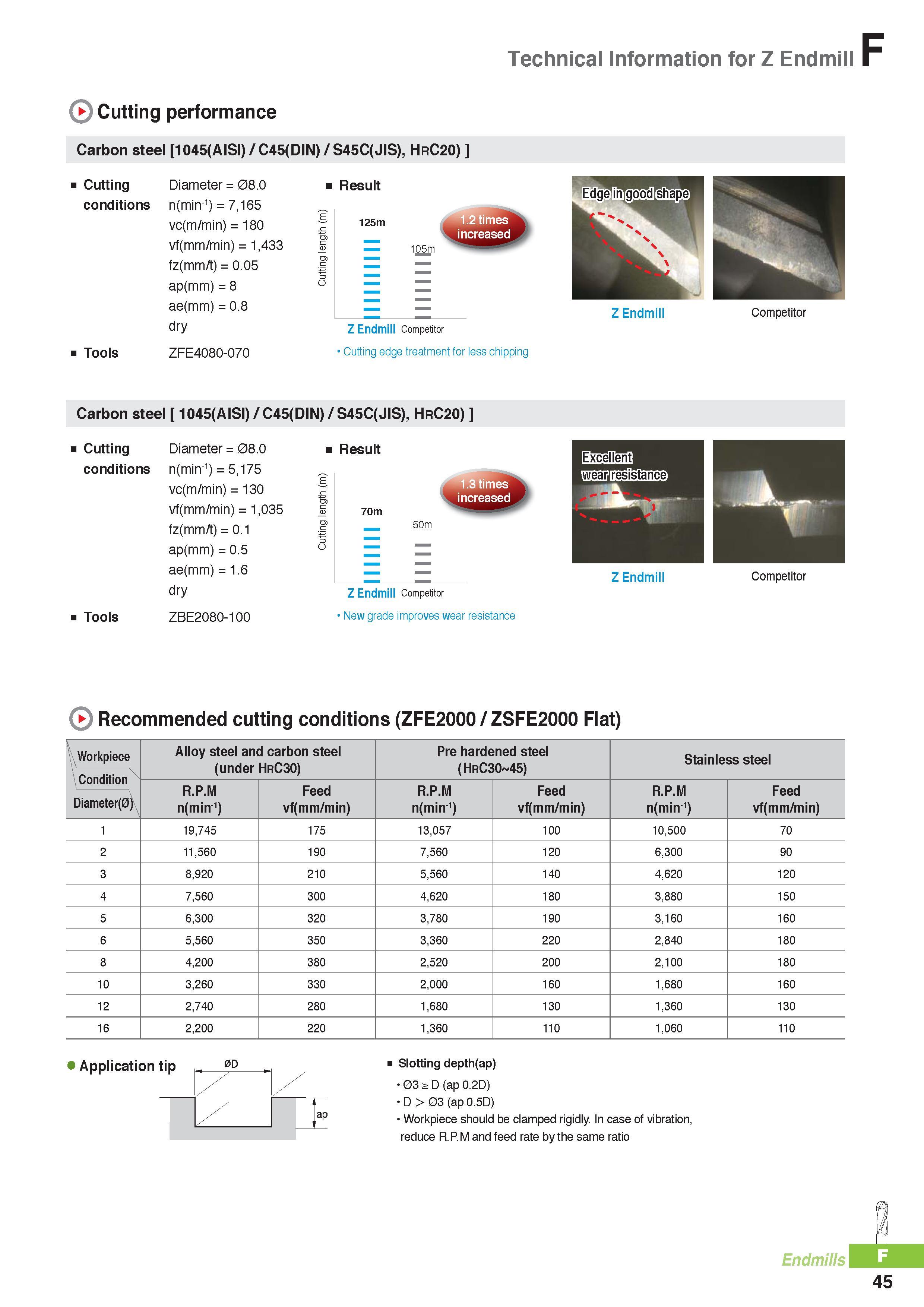

Technical Information for Z Endmill Cutting performance Carbon steel 1045(AISI) / C45(DIN) / S45C(JIS), HrC20) Cutting Diameter = 08.0 conditions n(min'1) = 7,165 vc(m/min) = 180 vt(mm/min) = 1,433 fz(mm/t) = 0.05 ap(mm) = 8 ae(mm) = 0.8 dry Tools ZFE4O8O-O7O Result Z Endmill Competitor Cutting edge treatment for less chipping Z Endmill Competitor Carbon steel 1045(AISI) / C45(DIN) / S45C(JIS), HrC20) Cutting conditions Tools Diameter = 08.0 Result n(min'1) = 5,175 vc(m/min) = 130 1.3 times increased vf(mm/min) = 1,035 S 70m fz(mm/t) = 0.1 J 5Om ap(mm) = 0.5 mmm, ae(mm) = 1.6 dry Z Endmill Competitor ZBE2O8O-1OO New grade improves wear resistance Z Endmill Competitor Recommended cutting conditions (ZFE2000 / ZSFE2000 Flat) Workpiece Condition Alloy steel and carbon steel (under HrC30) Pre hardened steel (HrC30 45) Stainless steel R.P.M Feed R.P.M Feed R.P.M Feed Diameter(0) n(min-1) vf(mm/min) n(min-1) vf(mm/min) n(min-1) vf(mm/min) 1 19,745 175 13,O57 1OO 1O,5OO 7O 2 11,56O 19O 7,56O 12O 6,3OO 9O 3 8,92O 21O 5,56O 14O 4,62O 12O 4 7,56O 3OO 4,62O 18O 3,88O 15O 5 6,3OO 32O 3,78O 19O 3,16O 16O 6 5,56O 35O 3,36O 22O 2,84O 18O 8 4,2OO 38O 2,52O 2OO 2,1OO 18O 1O 3,26O 33O 2,OOO 16O 1,68O 16O 12 2,74O 28O 1,68O 13O 1,36O 13O 16 2,2OO 22O 1,36O 11O 1,O6O 11O Application tip Slotting depth(ap) 03>D (ap 0.2D) D > 03 (ap O.5D) Workpiece should be clamped rigidly. In case of vibration, reduce R.P.M and feed rate by the same ratio Endmill F 45
