771 Каталог KORLOY 2016 Металлорежущий инструмент и станочная оснастка ENG Стр.F48

Каталог KORLOY 2016 Инструмент и оснастка Стр. F48 0771 ENG Lab2u

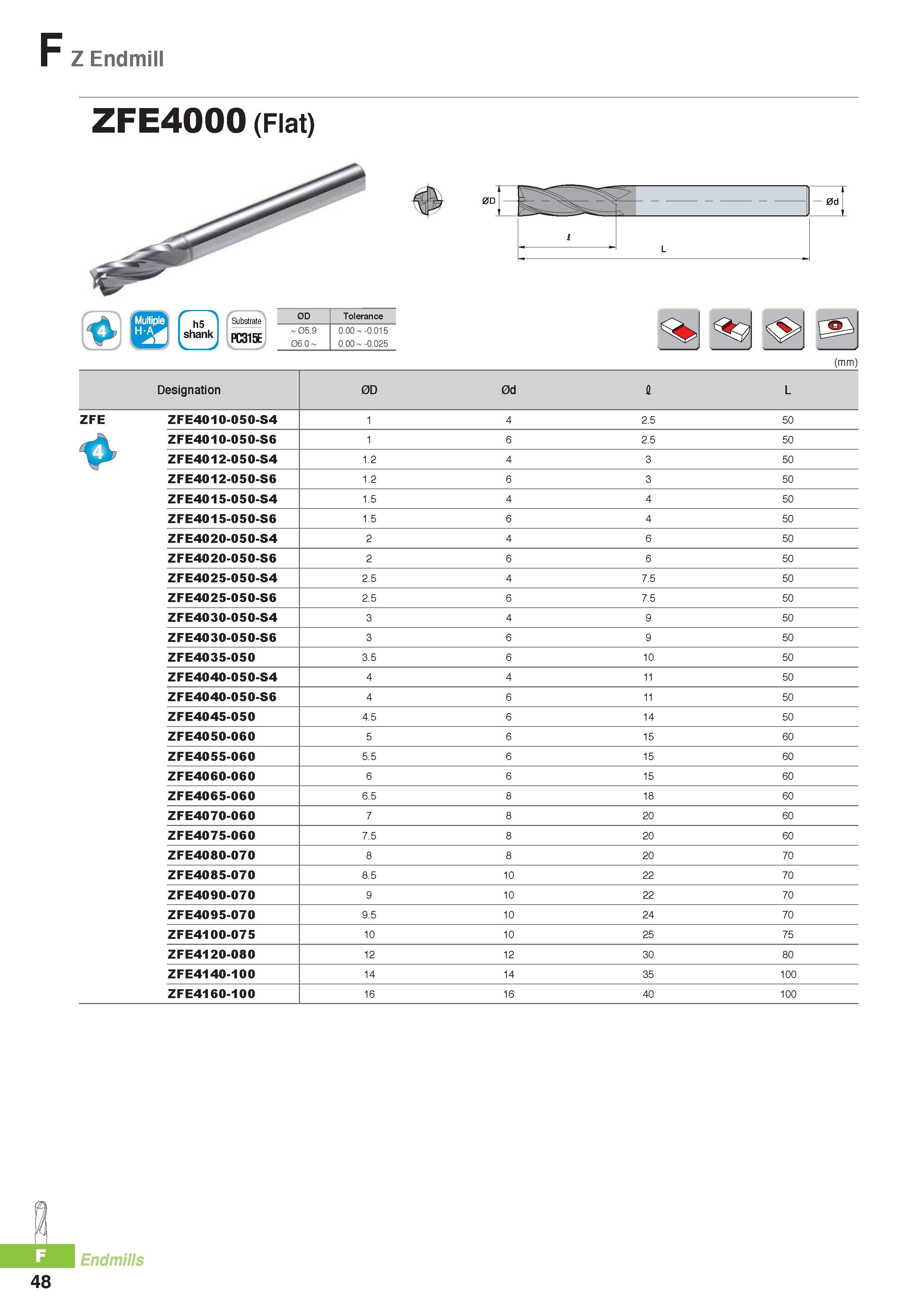

Z Endmill h5 shank 0D Tolerance -05.9 0.00 0.015 06.0- 0.00 0.025 (mm) Designation 0D 0d I L ZFE ZFE4010-050-S4 4 2.5 5O ZFE4010-050-S6 6 2.5 5O ZFE4012-050-S4 1.2 4 3 5O ZFE4012-050-S6 1.2 6 3 5O ZFE4015-050-S4 1.5 4 4 5O ZFE4015-050-S6 1.5 6 4 5O ZFE4020-050-S4 2 4 6 5O ZFE4020-050-S6 2 6 6 5O ZFE4025-050-S4 2.5 4 7.5 5O ZFE4025-050-S6 2.5 6 7.5 5O ZFE4030-050-S4 3 4 9 5O ZFE4030-050-S6 3 6 9 5O ZFE4035-050 3.5 6 1O 5O ZFE4040-050-S4 4 4 11 5O ZFE4040-050-S6 4 6 11 5O ZFE4045-050 4.5 6 14 5O ZFE4050-060 5 6 15 6O ZFE4055-060 5.5 6 15 6O ZFE4060-060 6 6 15 6O ZFE4065-060 6.5 8 18 6O ZFE4070-060 7 8 2O 6O ZFE4075-060 7.5 8 2O 6O ZFE4080-070 8 8 2O 7O ZFE4085-070 8.5 1O 22 7O ZFE4090-070 9 1O 22 70 ZFE4095-070 9.5 1O 24 70 ZFE4100-075 1O 1O 25 75 ZFE4120-080 12 12 3O 80 ZFE4140-100 14 14 35 100 ZFE4160-100 16 16 4O 100 Endmills 48
