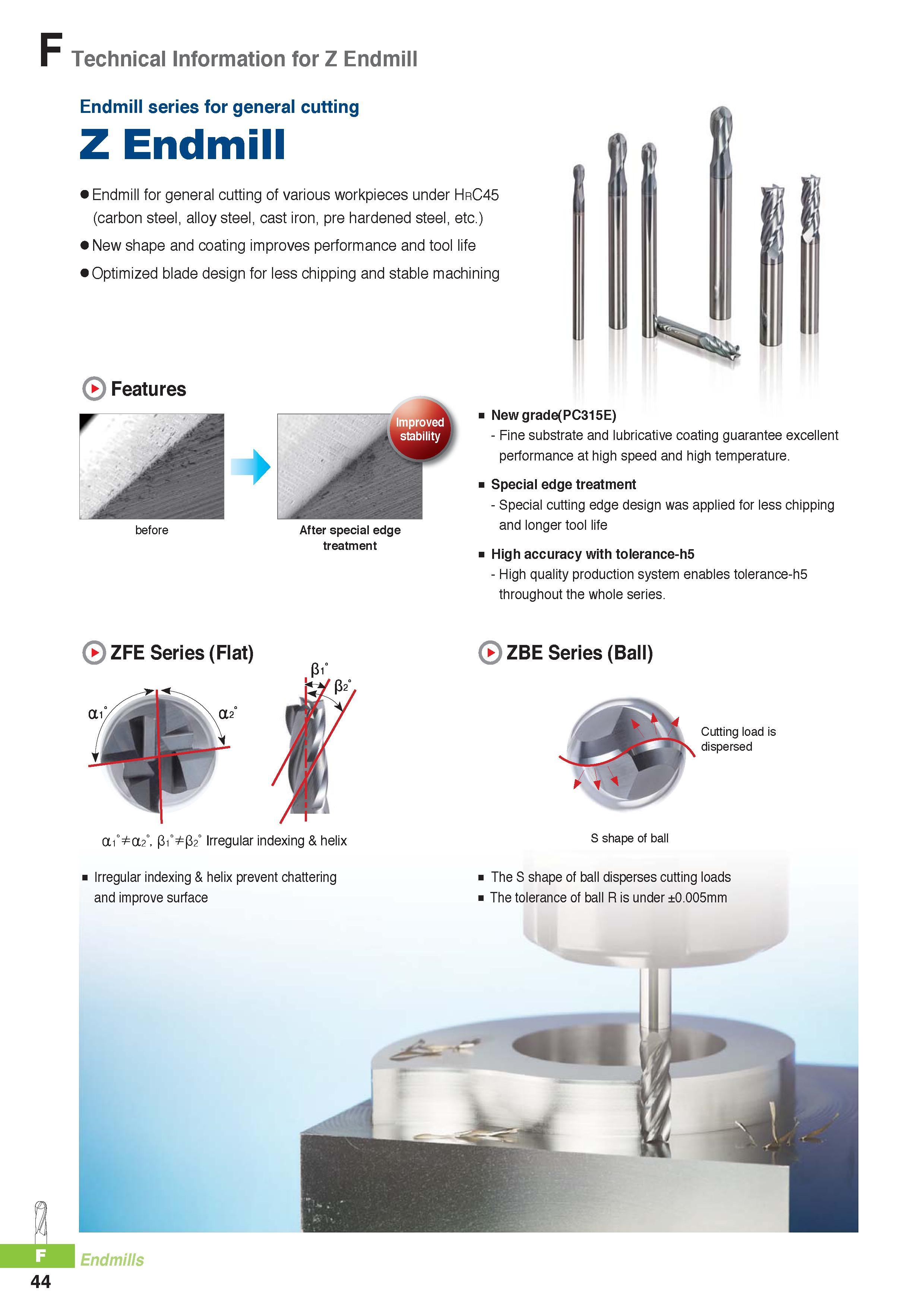

Technical Information for Z Endmill Endmill series for general cutting Z Endmill Endmill for general cutting of various workpieces under HrC45 (carbon steel, alloy steel, cast iron, pre hardened steel, etc.) New shape and coating improves performance and tool life Optimized blade design for less chipping and stable machining Features before After special edge treatment New grade(PC315E) - Fine substrate and lubricative coating guarantee excellent performance at high speed and high temperature. Special edge treatment - Special cutting edge design was applied for less chipping and longer tool life High accuracy with tolerance-h5 - High quality production system enables tolerance-h5 throughout the whole series. ( ZFE Series (Flat) ar a2°, Pi° P2° Irregular indexing & helix ZBE Series (Ball) A S shape of ball Cutting load is dispersed Irregular indexing & helix prevent chattering and improve surface The S shape of ball disperses cutting loads The tolerance of ball R is under ±0.005mm Endmills 44
