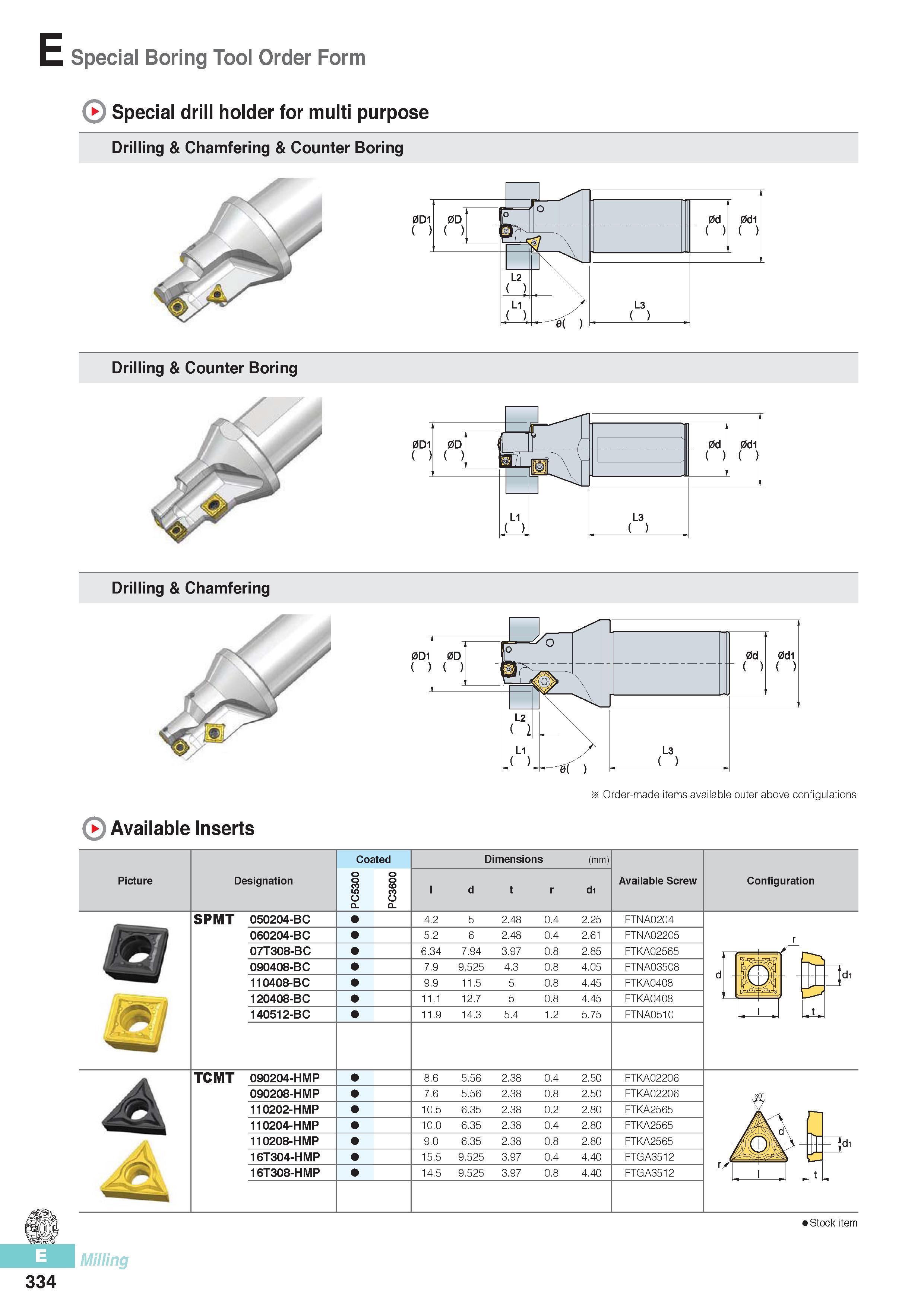

E Special Boring Tool Order Form Special drill holder for multi purpose Drilling & Chamfering & Counter Boring Drilling & Counter Boring Drilling & Chamfering Order-made items available outer above configulations Available Inserts Picture Designation Coated Dimensions (mm) Available Screw Configuration SPMT 050204-BC 060204-BC 07T308-BC 090408-BC 110408-BC 120408-BC 140512-BC 4.2 0.4 2.25 FTNA0204 5.2 0.4 2.61 FTNA02205 6.34 7.94 3.97 0.8 2.85 FTKA02565 7.9 9.525 4.3 0.8 4.05 FTNA03508 9.9 11.5 0.8 4.45 FTKA0408 1 1 .1 1 2.7 0.8 4.45 FTKA0408 1 1 .9 14.3 5.4 1 .2 5.75 FTNA051C d TCMT 090204-HMP 090208-HMP 110202-HMP 110204-HMP 110208-HMP 16T304-HMP 16T308-HMP 8.6 5.56 2.38 0.4 2.50 FTKA02206 7.6 5.56 2.38 0.8 2.50 FTKA02206 1 0.5 6.35 2.38 0.2 FTKA2565 1 0.0 6.35 2.38 0.4 FTKA2565 9.0 6.35 2.38 0.8 FTKA2565 15.5 9.525 3.97 0.4 4.40 FTGA3512 14.5 9.525 3.97 0.8 4.40 FTGA3512 Stock item Milling 334 5 6 5 5 6U
