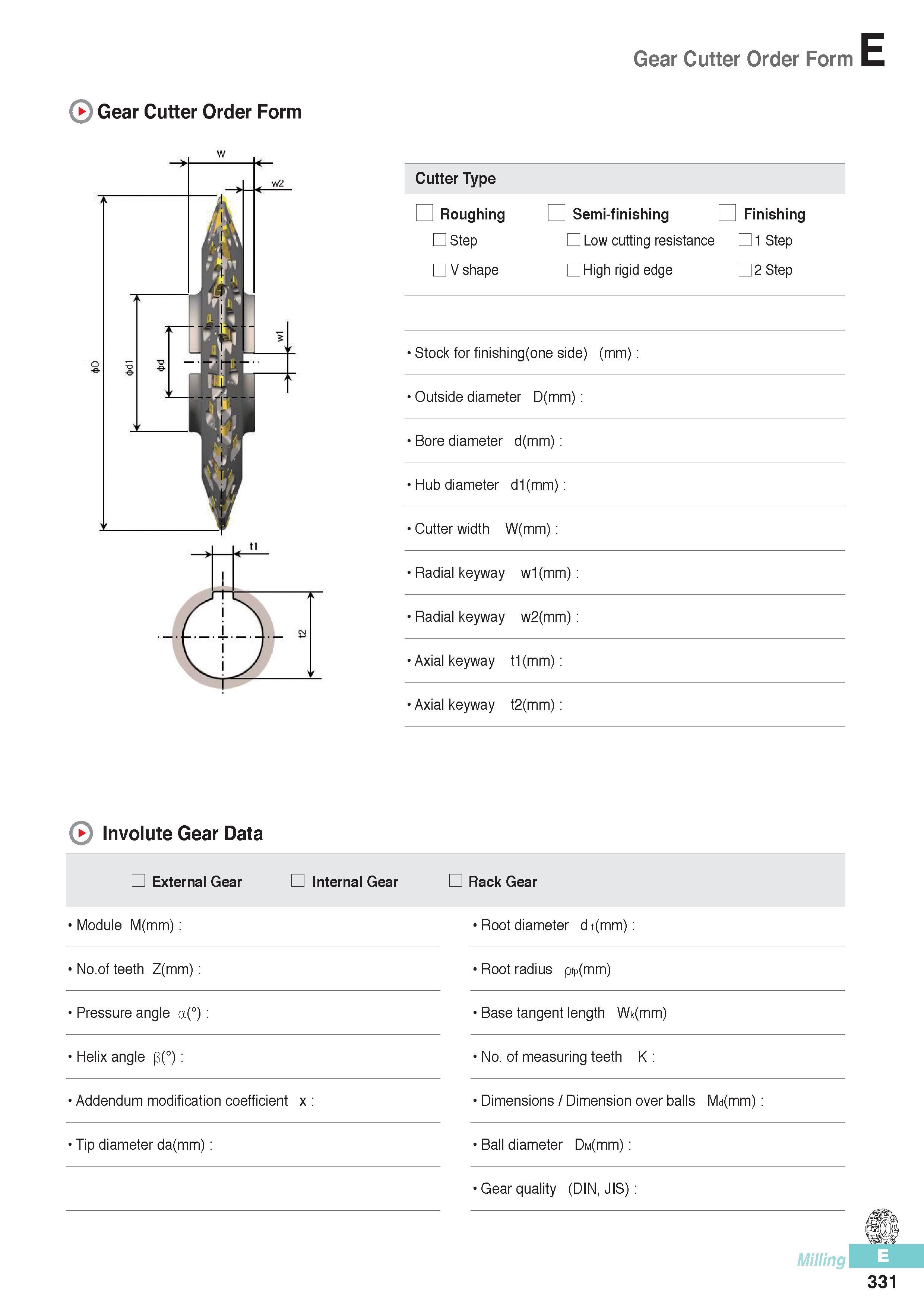

Gear Cutter Order Form Gear Cutter Order Form Involute Gear Data Cutter Type Roughing Step V shape Semi-finishing O Finishing Low cutting resistance 1 Step d High rigid edge D2Step 1 Stock for finishing(one side) (mm) 1 Outside diameter D(mm) Bore diameter d(mm): Hubdiameter d1(mm): 1 Cutter width W(mm) Radialkeyway w1(mm) Radial keyway w2(mm) Axial keyway t1(mm) Axial keyway t2(mm) External Gear Internal Gear Rack Gear Module M(mm): No.of teeth Z(mm): Pressure angle a(°): Helix angle p(°): Addendum modification coefficient x Tip diameter da(mm): Root diameter d t(mm) Root radius ptP(mm) Base tangent length Wk(mm) No. of measuring teeth K Dimensions / Dimension over balls Md(mm) Ball diameter DM(mm) Gearquality (DIN.JIS): Milling 331
