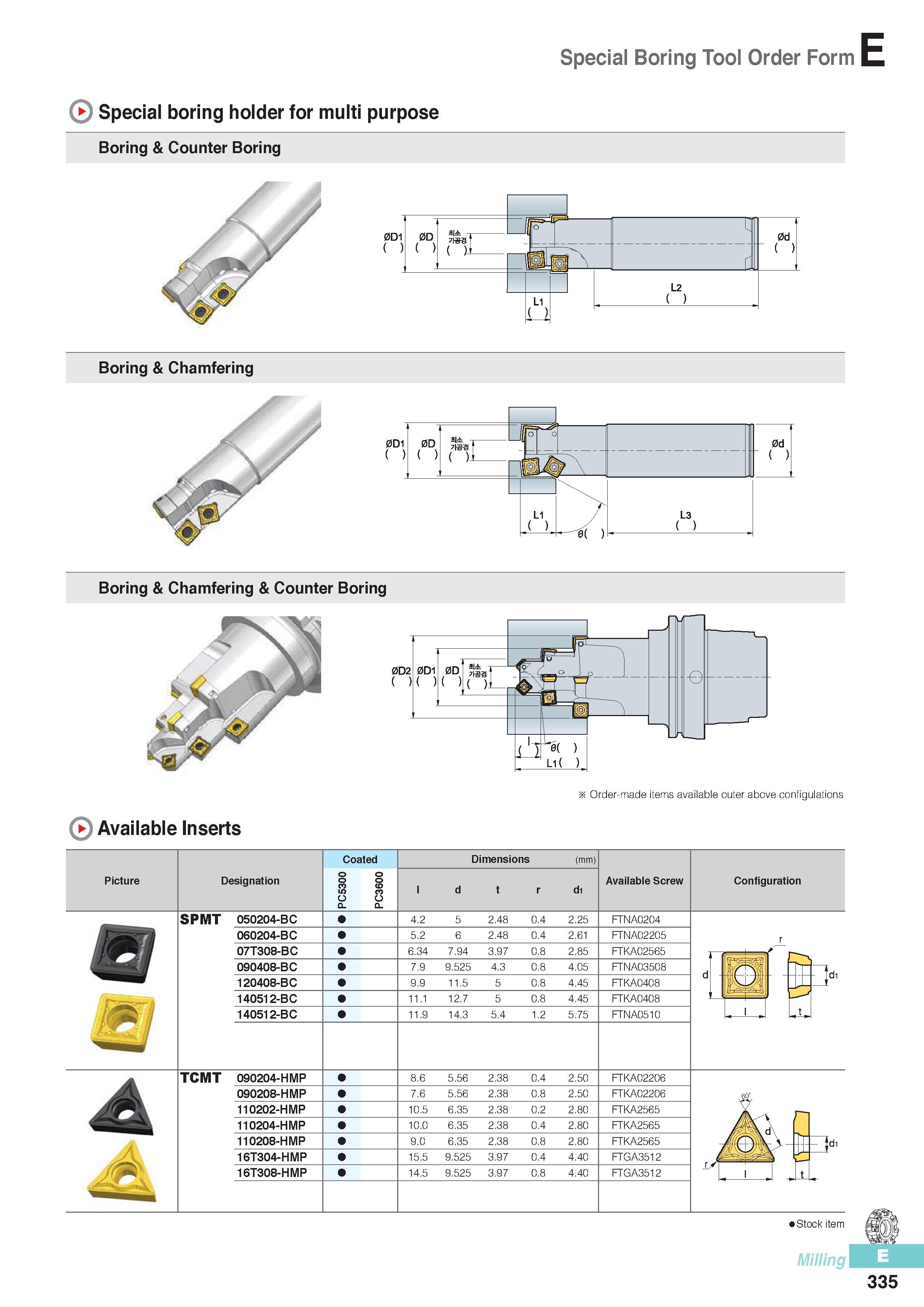

Special Boring Tool Order Form E Special boring holder for multi purpose Boring & Counter Boring Boring & Chamfering Boring & Chamfering & Counter Boring Order-made items available outer above configulations ( Available Inserts Picture Designation Coated Dimensions (mm) Available Screw Configuration SPMT 050204-BC 060204-BC 07T308-BC 090408-BC 120408-BC 140512-BC 140512-BC 4.2 0.4 2.25 FTNA0204 5.2 0.4 2.61 FTNA02205 6.34 7.94 3.97 0.8 2.85 FTKA02565 7.9 9.525 4.3 0.8 4.05 FTNA03508 9.9 11.5 0.8 4.45 FTKA0408 11.1 12.7 0.8 4.45 FTKA0408 11.9 14.3 5.4 1.2 5.75 FTNA051C TCMT 090204-HMP 090208-HMP 110202-HMP 110204-HMP 110208-HMP 16T304-HMP 16T308-HMP 8.6 5.56 2.38 0.4 2.50 FTKA02206 7.6 5.56 2.38 0.8 2.50 FTKA02206 10.5 6.35 2.38 0.2 FTKA2565 10.0 6.35 2.38 0.4 FTKA2565 9.0 6.35 2.38 0.8 FTKA2565 15.5 9.525 3.97 0.4 4.40 FTGA3512 14.5 9.525 3.97 0.8 4.40 FTGA3512 Stock item Milling 335 5 6 5 5 5U
