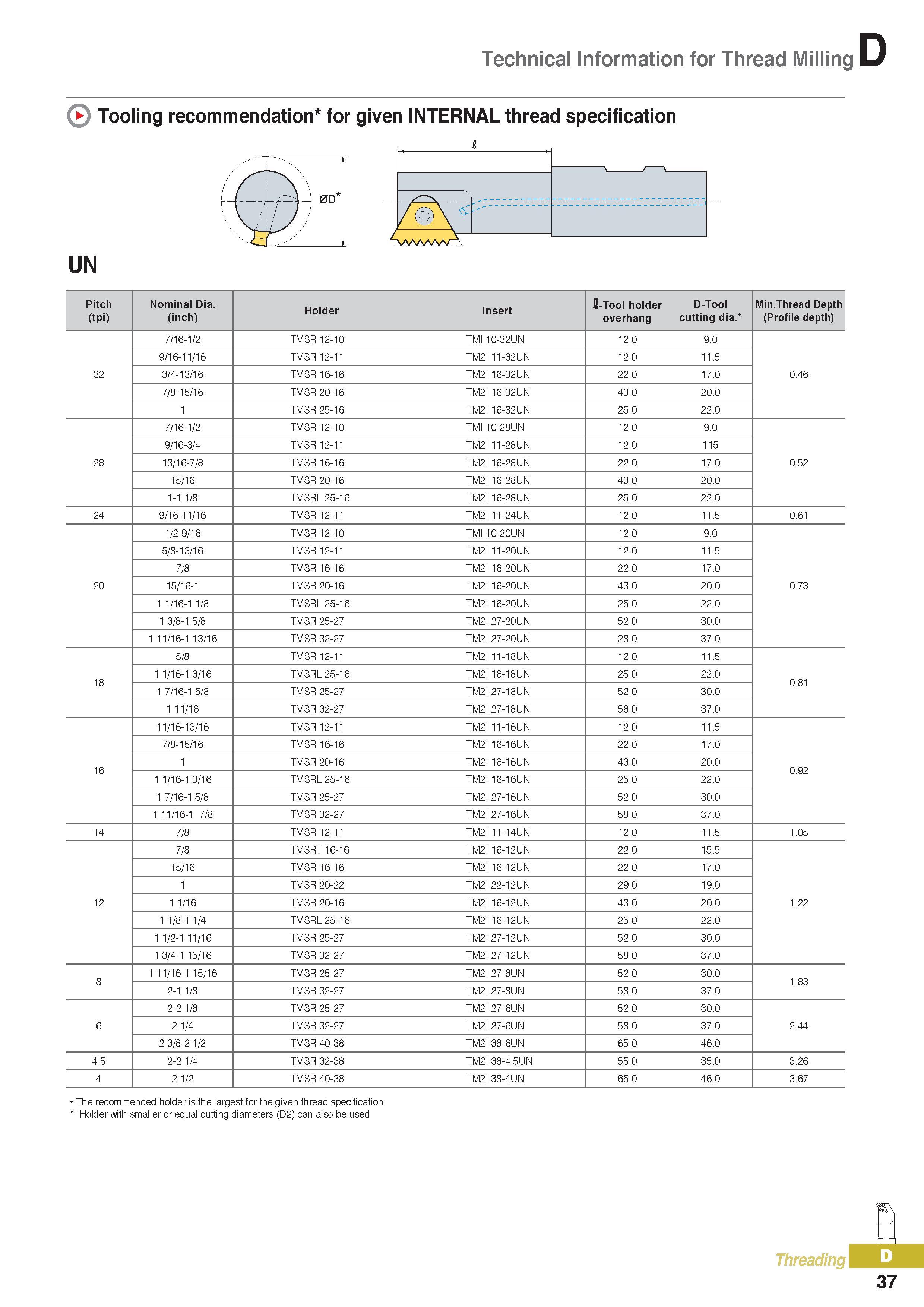

Technical Information for Thread Milling Tooling recommendation for given INTERNAL thread specification UN Pitch Nominal Dia. Holder Insert fi-Tool holder D-Tool Min.Thread Depth (tpi) (inch) overhang cutting dia. (Profile depth) 7/16-1/2 TMSR 12-10 TMI 10-32UN 12.0 9.0 9/16-11/16 TMSR 12-11 TM2I 11-32UN 12.0 11.5 32 3/4-13/16 TMSR 16-16 TM2I 16-32UN 22.0 17.0 0.46 7/8-15/16 TMSR 20-16 TM2I 16-32UN 43.0 20.0 1 TMSR 25-16 TM2I 16-32UN 25.0 22.0 7/16-1/2 TMSR 12-10 TMI 10-28UN 12.0 9.0 9/16-3/4 TMSR 12-11 TM2I 11-28UN 12.0 115 28 13/16-7/8 TMSR 16-16 TM2I 16-28UN 22.0 17.0 0.52 15/16 TMSR 20-16 TM2I 16-28UN 43.0 20.0 1-1 1/8 TMSRL 25-16 TM2I 16-28UN 25.0 22.0 24 9/16-11/16 TMSR 12-11 TM2I 11-24UN 12.0 11.5 0.61 1/2-9/16 TMSR 12-10 TMI 10-20UN 12.0 9.0 5/8-13/16 TMSR 12-11 TM2I 11-20UN 12.0 11.5 7/8 TMSR 16-16 TM2I 16-20UN 22.0 17.0 20 15/16-1 TMSR 20-16 TM2I 16-20UN 43.0 20.0 0.73 1 1/16-1 1/8 TMSRL 25-16 TM2I 16-20UN 25.0 22.0 1 3/8-1 5/8 TMSR 25-27 TM2I 27-20UN 52.0 30.0 1 11/16-1 13/16 TMSR 32-27 TM2I 27-20UN 28.0 37.0 5/8 TMSR 12-11 TM2I 11-18UN 12.0 11.5 18 1 1/16-1 3/16 TMSRL 25-16 TM2I 16-18UN 25.0 22.0 0.81 1 7/16-1 5/8 TMSR 25-27 TM2I 27-18UN 52.0 30.0 1 11/16 TMSR 32-27 TM2I 27-18UN 58.0 37.0 11/16-13/16 TMSR 12-11 TM2I 11-16UN 12.0 11.5 7/8-15/16 TMSR 16-16 TM2I 16-16UN 22.0 17.0 16 1 TMSR 20-16 TM2I 16-16UN 43.0 20.0 0.92 1 1/16-1 3/16 TMSRL 25-16 TM2I 16-16UN 25.0 22.0 1 7/16-1 5/8 TMSR 25-27 TM2I 27-16UN 52.0 30.0 1 11/16-1 7/8 TMSR 32-27 TM2I 27-16UN 58.0 37.0 14 7/8 TMSR 12-11 TM2I 11-14UN 12.0 11.5 1.05 7/8 TMSRT 16-16 TM2I 16-12UN 22.0 15.5 15/16 TMSR 16-16 TM2I 16-12UN 22.0 17.0 1 TMSR 20-22 TM2I 22-12UN 29.0 19.0 12 1 1/16 TMSR 20-16 TM2I 16-12UN 43.0 20.0 1.22 1 1/8-1 1/4 TMSRL 25-16 TM2I 16-12UN 25.0 22.0 1 1/2-1 11/16 TMSR 25-27 TM2I 27-12UN 52.0 30.0 1 3/4-1 15/16 TMSR 32-27 TM2I 27-12UN 58.0 37.0 8 1 11/16-1 15/16 TMSR 25-27 TM2I 27-8UN 52.0 30.0 1.83 2-1 1/8 TMSR 32-27 TM2I 27-8UN 58.0 37.0 2-2 1/8 TMSR 25-27 TM2I 27-6UN 52.0 30.0 6 2 1/4 TMSR 32-27 TM2I 27-6UN 58.0 37.0 2.44 2 3/8-2 1/2 TMSR 40-38 TM2I 38-6UN 65.0 46.0 4.5 2-2 1/4 TMSR 32-38 TM2I 38-4.5UN 55.0 35.0 3.26 4 2 1/2 TMSR 40-38 TM2I 38-4UN 65.0 46.0 3.67 The recommended holder is the largest for the given thread specification Holder with smaller or equal cutting diameters (D2) can also be used J. Threading 37
