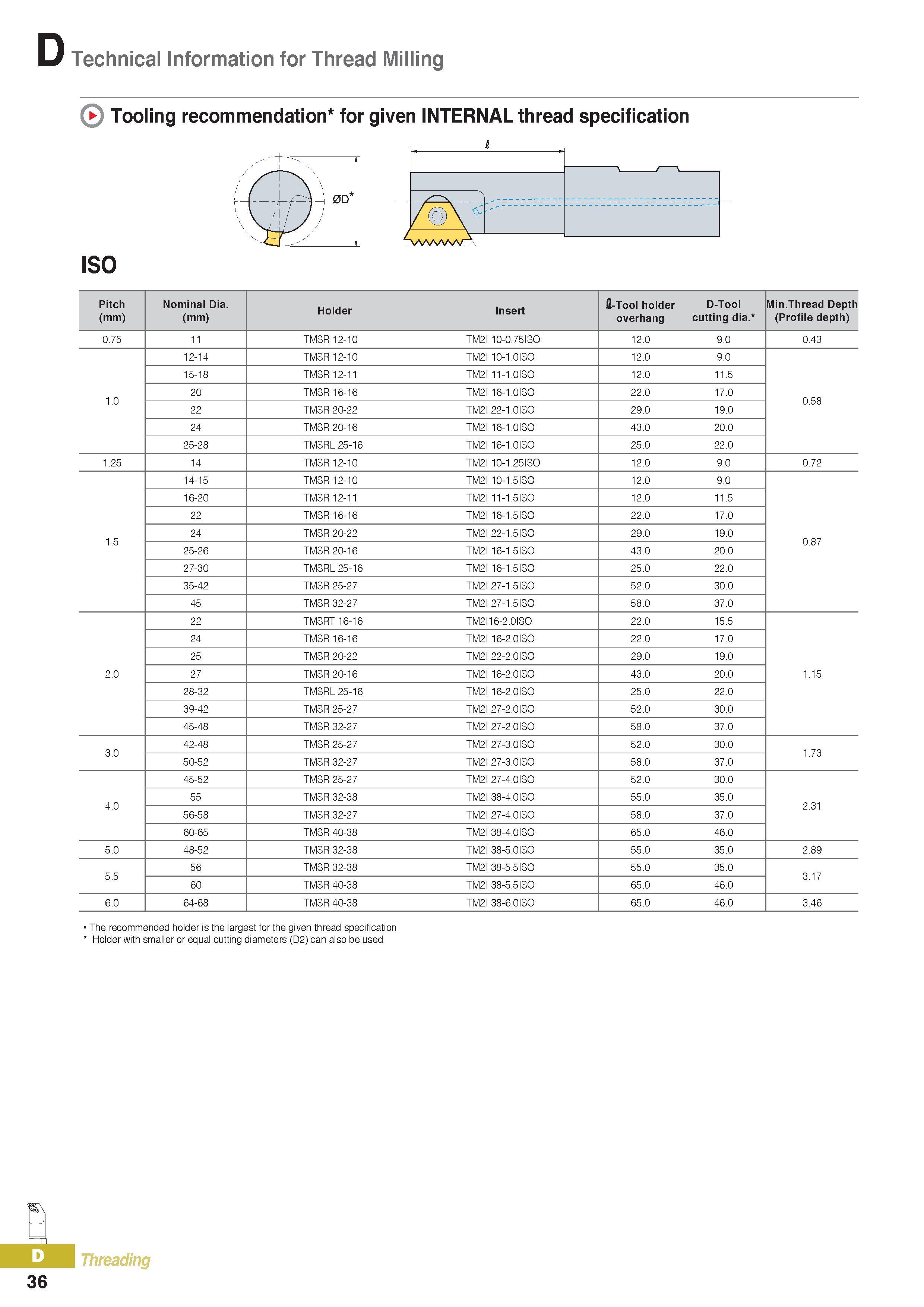

D Technical Information for Thread Milling Tooling recommendation for given INTERNAL thread specification ISO Pitch Nominal Dia. Holder Insert fi-Tool holder D-Tool Min.Thread Depth (mm) (mm) overhang cutting dia. (Profile depth) 0.75 11 TMSR 12-10 TM2I 10-0.75ISO 12.0 9.0 0.43 12-14 TMSR 12-10 TM2I 10-1.0SD 12.0 9.0 15-18 TMSR 12-11 TM2I 11-1.0ISO 12.0 11.5 1.0 20 TMSR 16-16 TM2I 16-1.0ISO 22.0 17.0 0.58 22 TMSR 20-22 TM2I 22-1.0ISO 29.0 19.0 24 TMSR 20-16 TM2I 16-1.0ISO 43.0 20.0 25-28 TMSRL 25-16 TM2I 16-1.0ISO 25.0 22.0 1.25 14 TMSR 12-10 TM2I 10-1.25ISO 12.0 9.0 0.72 14-15 TMSR 12-10 TM2I 10-1.5ISO 12.0 9.0 16-20 TMSR 12-11 TM2I 11-1.5ISO 12.0 11.5 22 TMSR 16-16 TM2I 16-1.5ISO 22.0 17.0 1.5 24 TMSR 20-22 TM2I 22-1.5ISO 29.0 19.0 0.87 25-26 TMSR 20-16 TM2I 16-1.5ISO 43.0 20.0 27-30 TMSRL 25-16 TM2I 16-1.5ISO 25.0 22.0 35-42 TMSR 25-27 TM2I 27-1.5ISO 52.0 30.0 45 TMSR 32-27 TM2I 27-1.5ISO 58.0 37.0 22 TMSRT 16-16 TM2I16-2.0ISO 22.0 15.5 24 TMSR 16-16 TM2I 16-2.0ISO 22.0 17.0 25 TMSR 20-22 TM2I 22-2.0ISO 29.0 19.0 2.0 27 TMSR 20-16 TM2I 16-2.0ISO 43.0 20.0 1.15 28-32 TMSRL 25-16 TM2I 16-2.0ISO 25.0 22.0 39-42 TMSR 25-27 TM2I 27-2.0ISO 52.0 30.0 45-48 TMSR 32-27 TM2I 27-2.0ISO 58.0 37.0 3.0 42-48 TMSR 25-27 TM2I 27-3.0ISO 52.0 30.0 1.73 50-52 TMSR 32-27 TM2I 27-3.0ISO 58.0 37.0 45-52 TMSR 25-27 TM2I 27-4.0ISO 52.0 30.0 4.0 55 TMSR 32-38 TM2I 38-4.0ISO 55.0 35.0 2.31 56-58 TMSR 32-27 TM2I 27-4.0ISO 58.0 37.0 60-65 TMSR 40-38 TM2I 38-4.0ISO 65.0 46.0 5.0 48-52 TMSR 32-38 TM2I 38-5.0ISO 55.0 35.0 2.89 5.5 56 TMSR 32-38 TM2I 38-5.5ISO 55.0 35.0 3.17 60 TMSR 40-38 TM2I 38-5.5ISO 65.0 46.0 6.0 64-68 TMSR 40-38 TM2I 38-6.0ISO 65.0 46.0 3.46 The recommended holder is the largest for the given thread specification Holder with smaller or equal cutting diameters (D2) can also be used Jm Threading 36
