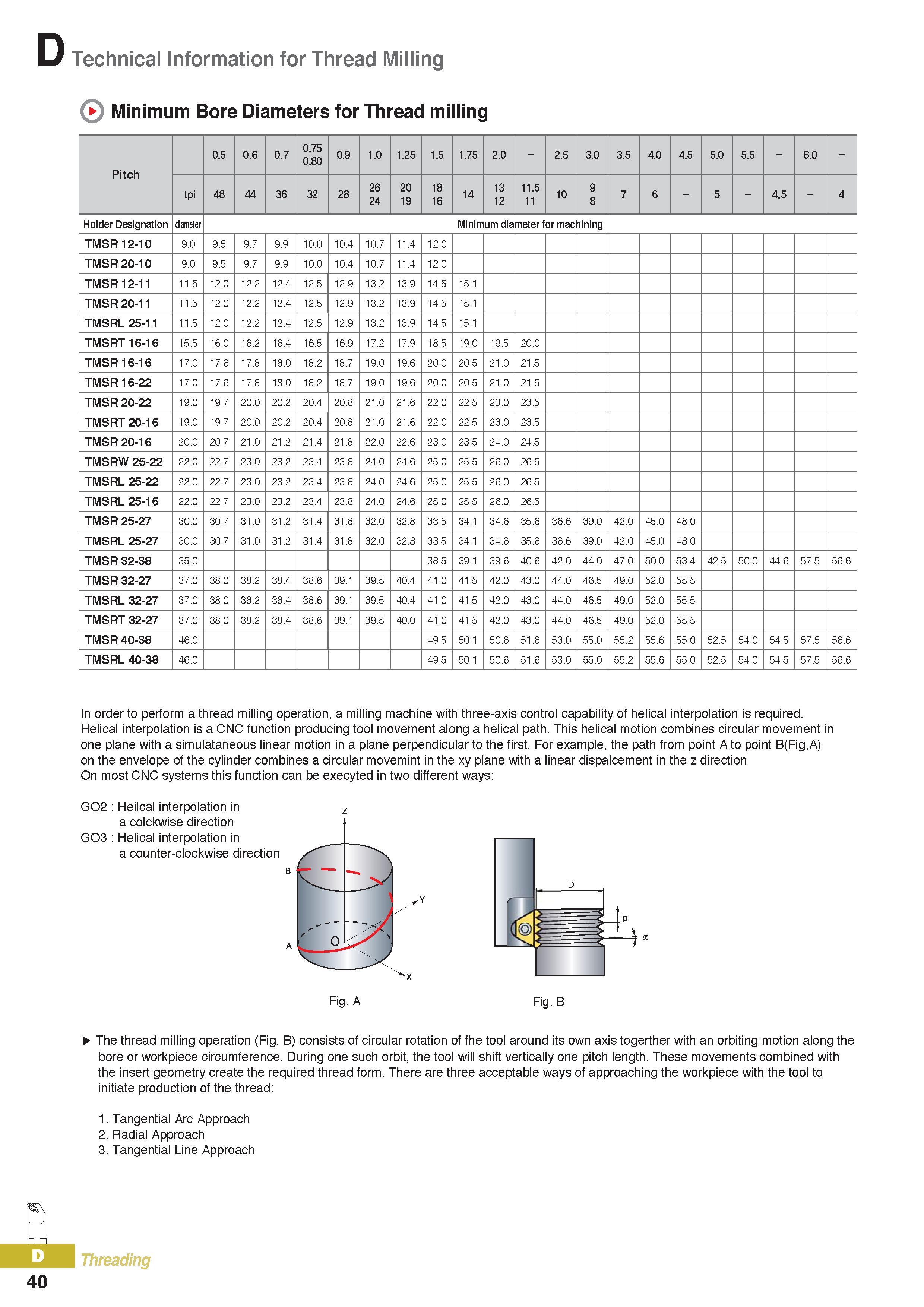

D Technical Information for Thread Milling Minimum Bore Diameters for Thread milling Pitch 0.5 0.6 0.7 .75.80 0.9 1.0 1.25 1.5 1.75 2.0 - 2.5 3.0 3.5 4.0 4.5 5.0 5.5 - 6.0 - tpi 48 44 36 32 28 26 24 20 19 18 16 14 13 12 11.5 11 10 9 8 7 6 - 5 - 4.5 - 4 Holder Designation diameter Minimum diameter for machining TMSR 12-10 9.0 9.5 9.7 9.9 10.0 10.4 10.7 11.4 12.0 TMSR 20-10 9.0 9.5 9.7 9.9 10.0 10.4 10.7 11.4 12.0 TMSR 12-11 11.5 12.0 12.2 12.4 12.5 12.9 13.2 13.9 14.5 15.1 TMSR 20-11 11.5 12.0 12.2 12.4 12.5 12.9 13.2 13.9 14.5 15.1 TMSRL 25-11 11.5 12.0 12.2 12.4 12.5 12.9 13.2 13.9 14.5 15.1 TMSRT 16-16 15.5 16.0 16.2 16.4 16.5 16.9 17.2 17.9 18.5 19.0 19.5 20.0 TMSR 16-16 17.0 17.6 17.8 18.0 18.2 18.7 19.0 19.6 20.0 20.5 21.0 21.5 TMSR 16-22 17.0 17.6 17.8 18.0 18.2 18.7 19.0 19.6 20.0 20.5 21.0 21.5 TMSR 20-22 19.0 19.7 20.0 20.2 20.4 20.8 21.0 21.6 22.0 22.5 23.0 23.5 TMSRT 20-16 19.0 19.7 20.0 20.2 20.4 20.8 21.0 21.6 22.0 22.5 23.0 23.5 TMSR 20-16 20.0 20.7 21.0 21.2 21.4 21.8 22.0 22.6 23.0 23.5 24.0 24.5 TMSRW 25-22 22.0 22.7 23.0 23.2 23.4 23.8 24.0 24.6 25.0 25.5 26.0 26.5 TMSRL 25-22 22.0 22.7 23.0 23.2 23.4 23.8 24.0 24.6 25.0 25.5 26.0 26.5 TMSRL 25-16 22.0 22.7 23.0 23.2 23.4 23.8 24.0 24.6 25.0 25.5 26.0 26.5 TMSR 25-27 30.0 30.7 31.0 31.2 31.4 31.8 32.0 32.8 33.5 34.1 34.6 35.6 36.6 39.0 42.0 45.0 48.0 TMSRL 25-27 30.0 30.7 31.0 31.2 31.4 31.8 32.0 32.8 33.5 34.1 34.6 35.6 36.6 39.0 42.0 45.0 48.0 TMSR 32-38 35.0 38.5 39.1 39.6 40.6 42.0 44.0 47.0 50.0 53.4 42.5 50.0 44.6 57.5 56.6 TMSR 32-27 37.0 38.0 38.2 38.4 38.6 39.1 39.5 40.4 41.0 41.5 42.0 43.0 44.0 46.5 49.0 52.0 55.5 TMSRL 32-27 37.0 38.0 38.2 38.4 38.6 39.1 39.5 40.4 41.0 41.5 42.0 43.0 44.0 46.5 49.0 52.0 55.5 TMSRT 32-27 37.0 38.0 38.2 38.4 38.6 39.1 39.5 40.0 41.0 41.5 42.0 43.0 44.0 46.5 49.0 52.0 55.5 TMSR 40-38 46.0 49.5 50.1 50.6 51.6 53.0 55.0 55.2 55.6 55.0 52.5 54.0 54.5 57.5 56.6 TMSRL 40-38 46.0 49.5 50.1 50.6 51.6 53.0 55.0 55.2 55.6 55.0 52.5 54.0 54.5 57.5 56.6 In order to perform a thread milling operation, a milling machine with three-axis control capability of helical interpolation is required. Helical interpolation is a CNC function producing tool movement along a helical path. This helical motion combines circular movement in one plane with a simulataneous linear motion in a plane perpendicular to the first. For example, the path from point A to point B(Fig,A) on the envelope of the cylinder combines a circular movemint in the xy plane with a linear dispalcement in the z direction On most CNC systems this function can be execyted in two different ways: GO2 Heilcal interpolation in a colckwise direction GO3 Helical interpolation in a counter-clockwise direction Fig. A Fig. B The thread milling operation (Fig. B) consists of circular rotation of fhe tool around its own axis togerther with an orbiting motion along the bore or workpiece circumference. During one such orbit, the tool will shift vertically one pitch length. These movements combined with the insert geometry create the required thread form. There are three acceptable ways of approaching the workpiece with the tool to initiate production of the thread: 1. Tangential Arc Approach 2. Radial Approach 3. Tangential Line Approach Jm Threading 40
