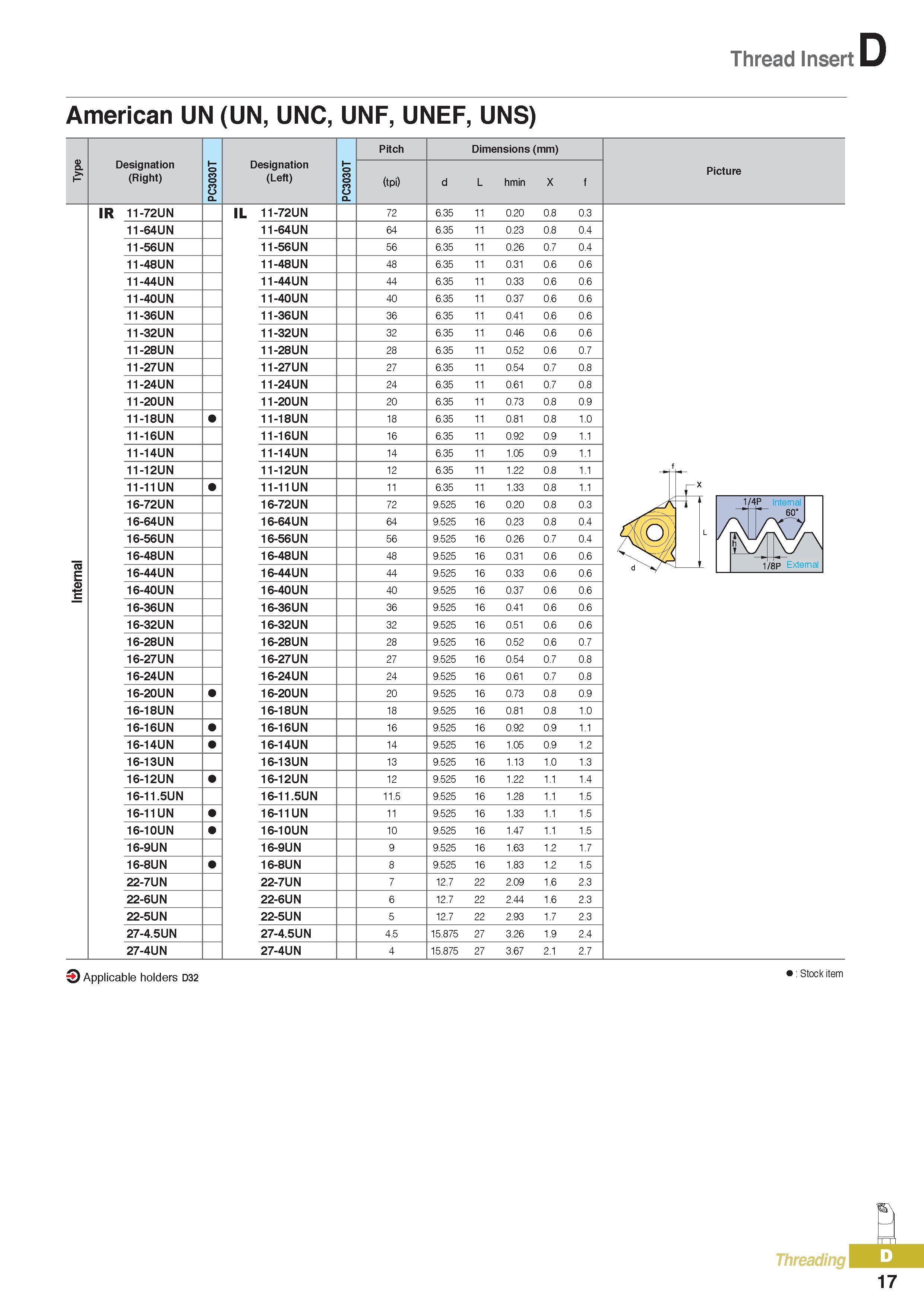

Thread Insert American UN (UN, UNC, UNF, UNEF, UNS) Designation (Right) PC3Q3QT Designation (Left) PC3Q3QT Pitch Dimensions (mm) (tpi) d L hmin X f IR 11-72UN IL 11-72UN 72 6.35 11 0.20 0.8 0.3 11-64UN 11-64UN 64 6.35 11 0.23 0.8 0.4 11-56UN 11-56UN 56 6.35 11 0.26 0.7 0.4 11-48UN 11-48UN 48 6.35 11 0.31 0.6 0.6 11-44UN 11-44UN 44 6.35 11 0.33 0.6 0.6 11-40UN 11-40UN 40 6.35 11 0.37 0.6 0.6 11-36UN 11-36UN 36 6.35 11 0.41 0.6 0.6 11-32UN 11-32UN 32 6.35 11 0.46 0.6 0.6 11-28UN 11-28UN 28 6.35 11 0.52 0.6 0.7 11-27UN 11-27UN 27 6.35 11 0.54 0.7 0.8 11-24UN 11-24UN 24 6.35 11 0.61 0.7 0.8 11-20UN 11-20UN 20 6.35 11 0.73 0.8 0.9 11-18UN 11-18UN 18 6.35 11 0.81 0.8 1.0 11-16UN 11-16UN 16 6.35 11 0.92 0.9 1.1 11-14UN 11-14UN 14 6.35 11 1.05 0.9 1.1 11-12UN 11-12UN 12 6.35 11 1.22 0.8 1.1 11-11UN 11-11UN 11 6.35 11 1.33 0.8 1.1 16-72UN 16-72UN 72 9.525 16 0.20 0.8 0.3 16-64UN 16-64UN 64 9.525 16 0.23 0.8 0.4 16-56UN 16-56UN 56 9.525 16 0.26 0.7 0.4 16-48UN 16-48UN 48 9.525 16 0.31 0.6 0.6 16-44UN 16-44UN 44 9.525 16 0.33 0.6 0.6 16-40UN 16-40UN 40 9.525 16 0.37 0.6 0.6 16-36UN 16-36UN 36 9.525 16 0.41 0.6 0.6 16-32UN 16-32UN 32 9.525 16 0.51 0.6 0.6 16-28UN 16-28UN 28 9.525 16 0.52 0.6 0.7 16-27UN 16-27UN 27 9.525 16 0.54 0.7 0.8 16-24UN 16-24UN 24 9.525 16 0.61 0.7 0.8 16-20UN 16-20UN 20 9.525 16 0.73 0.8 0.9 16-18UN 16-18UN 18 9.525 16 0.81 0.8 1.0 16-16UN 16-16UN 16 9.525 16 0.92 0.9 1.1 16-14UN 16-14UN 14 9.525 16 1.05 0.9 1.2 16-13UN 16-13UN 13 9.525 16 1.13 1.0 1.3 16-12UN 16-12UN 12 9.525 16 1.22 1.1 1.4 16-11.5UN 16-11.5UN 11.5 9.525 16 1.28 1.1 1.5 16-11UN 16-11UN 11 9.525 16 1.33 1.1 1.5 16-10UN 16-10UN 10 9.525 16 1.47 1.1 1.5 16-9UN 16-9UN 9 9.525 16 1.63 1.2 1.7 16-8UN 16-8UN 8 9.525 16 1.83 1.2 1.5 22-7UN 22-7UN 7 12.7 22 2.09 1.6 2.3 22-6UN 22-6UN 6 12.7 22 2.44 1.6 2.3 22-5UN 22-5UN 5 12.7 22 2.93 1.7 2.3 27-4.5UN 27-4.5UN 4.5 15.875 27 3.26 1.9 2.4 27-4UN 27-4UN 4 15.875 27 3.67 2.1 2.7 Picture 1/4P Internal 60 External O Applicable holders D32 Stock item Threadin D 17
