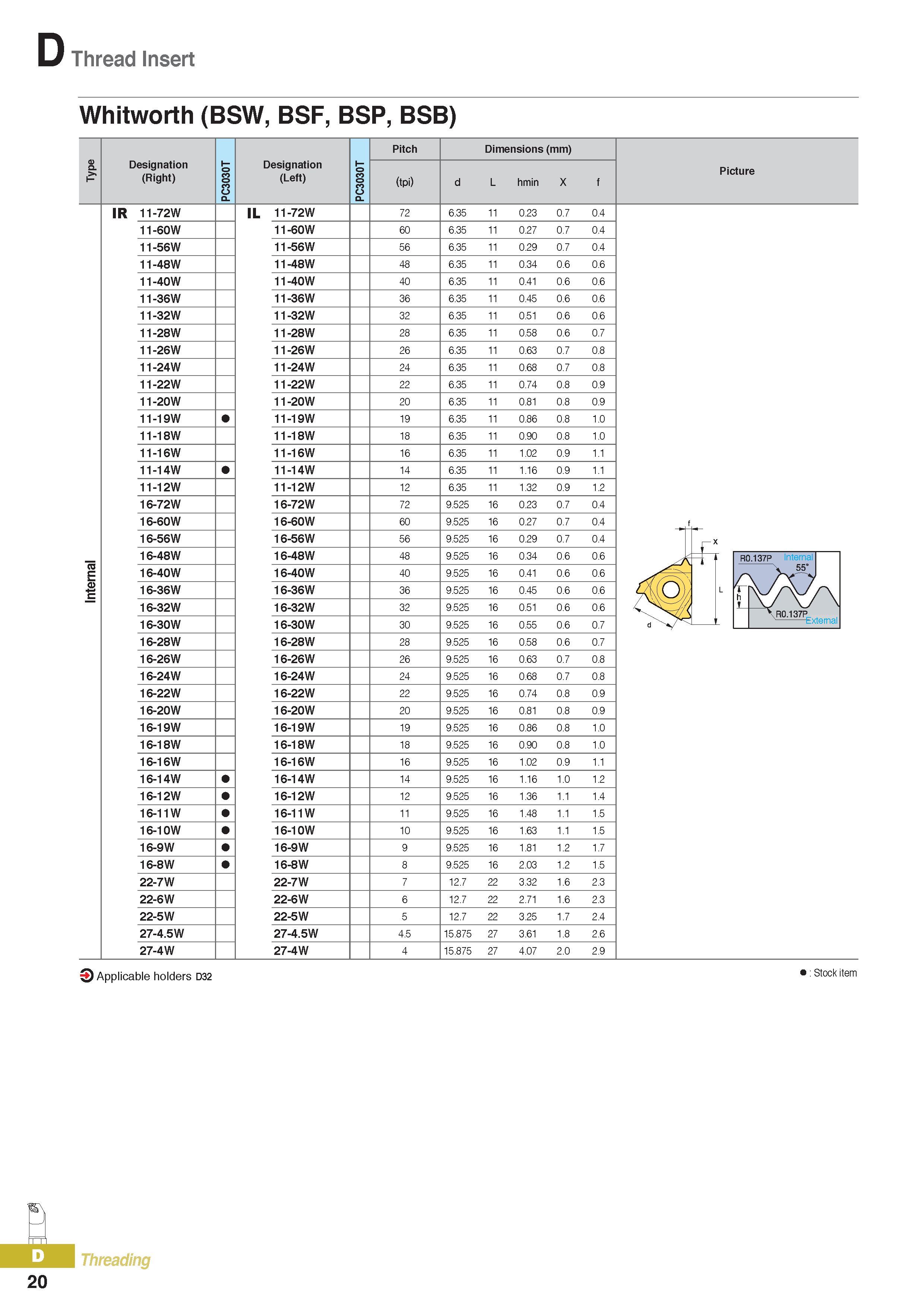

Thread Insert Whitworth (BSW, BSF, BSP, BSB) Designation (Right) PC3030T Designation (Left) PC3030T Pitch Dimensions (mm) (tpi) d L hmin X f IR 11-72W IL 11-72W 72 6.35 11 0.23 0.7 0.4 11-60W 11-60W 60 6.35 11 0.27 0.7 0.4 11-56W 11-56W 56 6.35 11 0.29 0.7 0.4 11-48W 11-48W 48 6.35 11 0.34 0.6 0.6 11-40W 11-40W 40 6.35 11 0.41 0.6 0.6 11-36W 11-36W 36 6.35 11 0.45 0.6 0.6 11-32W 11-32W 32 6.35 11 0.51 0.6 0.6 11-28W 11-28W 28 6.35 11 0.58 0.6 0.7 11-26W 11-26W 26 6.35 11 0.63 0.7 0.8 11-24W 11-24W 24 6.35 11 0.68 0.7 0.8 11-22W 11-22W 22 6.35 11 0.74 0.8 0.9 11-20W 11-20W 20 6.35 11 0.81 0.8 0.9 11-19W 11-19W 19 6.35 11 0.86 0.8 1.0 11-18W 11-18W 18 6.35 11 0.90 0.8 1.0 11-16W 11-16W 16 6.35 11 1.02 0.9 1.1 11-14W 11-14W 14 6.35 11 1.16 0.9 1.1 11-12W 11-12W 12 6.35 11 1.32 0.9 1.2 16-72W 16-72W 72 9.525 16 0.23 0.7 0.4 16-60W 16-60W 60 9.525 16 0.27 0.7 0.4 16-56W 16-56W 56 9.525 16 0.29 0.7 0.4 16-48W 16-48W 48 9.525 16 0.34 0.6 0.6 16-40W 16-40W 40 9.525 16 0.41 0.6 0.6 16-36W 16-36W 36 9.525 16 0.45 0.6 0.6 16-32W 16-32W 32 9.525 16 0.51 0.6 0.6 16-30W 16-30W 30 9.525 16 0.55 0.6 0.7 16-28W 16-28W 28 9.525 16 0.58 0.6 0.7 16-26W 16-26W 26 9.525 16 0.63 0.7 0.8 16-24W 16-24W 24 9.525 16 0.68 0.7 0.8 16-22W 16-22W 22 9.525 16 0.74 0.8 0.9 16-20W 16-20W 20 9.525 16 0.81 0.8 0.9 16-19W 16-19W 19 9.525 16 0.86 0.8 1.0 16-18W 16-18W 18 9.525 16 0.90 0.8 1.0 16-16W 16-16W 16 9.525 16 1.02 0.9 1.1 16-14W 16-14W 14 9.525 16 1.16 1.0 1.2 16-12W 16-12W 12 9.525 16 1.36 1.1 1.4 16-11W 16-11W 11 9.525 16 1.48 1.1 1.5 16-10W 16-10W 10 9.525 16 1.63 1.1 1.5 16-9W 16-9W 9 9.525 16 1.81 1.2 1.7 16-8W 16-8W 8 9.525 16 2.03 1.2 1.5 22-7W 22-7W 7 12.7 22 3.32 1.6 2.3 22-6W 22-6W 6 12.7 22 2.71 1.6 2.3 22-5W 22-5W 5 12.7 22 3.25 1.7 2.4 27-4.5W 27-4.5W 4.5 15.875 27 3.61 1.8 2.6 27-4W 27-4W 4 15.875 27 4.07 2.0 2.9 Picture O Applicable holders D32 Stock item Jm Threading 20
