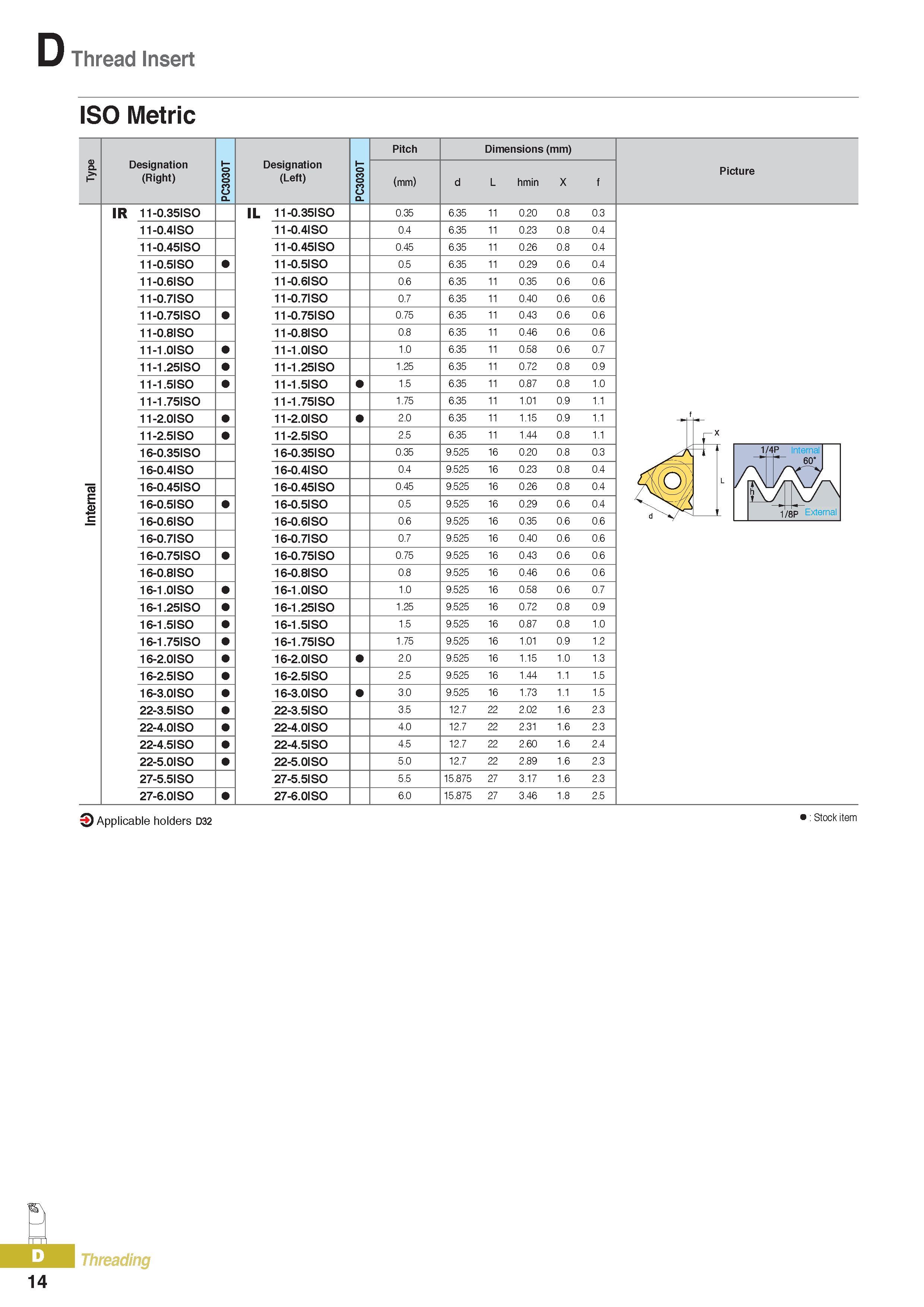

Thread Insert ISO Metric Designation (Right) PC3030T Designation (Left) PC3030T Pitch Dimensions (mm) (mm) d L hmin X f IR 11-0.35ISO IL 11-0.35IS0 0.35 6.35 11 0.20 0.8 0.3 11-0.4ISO 11-0.4IS0 0.4 6.35 11 0.23 0.8 0.4 11-0.45ISO 11-0.45IS0 0.45 6.35 11 0.26 0.8 0.4 11-0.5ISO 11-0.5IS0 0.5 6.35 11 0.29 0.6 0.4 11-0.6ISO 11-0.6IS0 0.6 6.35 11 0.35 0.6 0.6 11-0.7ISO 11-0.7IS0 0.7 6.35 11 0.40 0.6 0.6 11-0.75ISO 11-0.75IS0 0.75 6.35 11 0.43 0.6 0.6 11-0.8ISO 11-0.8IS0 0.8 6.35 11 0.46 0.6 0.6 11-1.0ISO 11-1.0IS0 1.0 6.35 11 0.58 0.6 0.7 11-1.25ISO 11-1.25ISO 1.25 6.35 11 0.72 0.8 0.9 11-1.5ISO 11-1.5ISO 1.5 6.35 11 0.87 0.8 1.0 11-1.75ISO 11-1.75ISO 1.75 6.35 11 1.01 0.9 1.1 11-2.0ISO 11-2.0IS0 2.0 6.35 11 1.15 0.9 1.1 11-2.5ISO 11-2.5ISO 2.5 6.35 11 1.44 0.8 1.1 16-0.35ISO 16-0.35IS0 0.35 9.525 16 0.20 0.8 0.3 16-0.4ISO 16-0.4IS0 0.4 9.525 16 0.23 0.8 0.4 16-0.45ISO 16-0.45IS0 0.45 9.525 16 0.26 0.8 0.4 16-0.5ISO 16-0.5IS0 0.5 9.525 16 0.29 0.6 0.4 16-0.6ISO 16-0.6IS0 0.6 9.525 16 0.35 0.6 0.6 16-0.7ISO 16-0.7IS0 0.7 9.525 16 0.40 0.6 0.6 16-0.75ISO 16-0.75IS0 0.75 9.525 16 0.43 0.6 0.6 16-0.8ISO 16-0.8IS0 0.8 9.525 16 0.46 0.6 0.6 16-1.0ISO 16-1.0IS0 1.0 9.525 16 0.58 0.6 0.7 16-1.25ISO 16-1.25ISO 1.25 9.525 16 0.72 0.8 0.9 16-1.5ISO 16-1.5ISO 1.5 9.525 16 0.87 0.8 1.0 16-1.75ISO 16-1.75ISO 1.75 9.525 16 1.01 0.9 1.2 16-2.0ISO 16-2.0IS0 2.0 9.525 16 1.15 1.0 1.3 16-2.5ISO 16-2.5ISO 2.5 9.525 16 1.44 1.1 1.5 16-3.0ISO 16-3.0IS0 3.0 9.525 16 1.73 1.1 1.5 22-3.5ISO 22-3.5ISO 3.5 12.7 22 2.02 1.6 2.3 22-4.0ISO 22-4.0IS0 4.0 12.7 22 2.31 1.6 2.3 22-4.5ISO 22-4.5ISO 4.5 12.7 22 2.60 1.6 2.4 22-5.0ISO 22-5.0IS0 5.0 12.7 22 2.89 1.6 2.3 27-5.5ISO 27-5.5ISO 5.5 15.875 27 3.17 1.6 2.3 27-6.QISO 27-6.0IS0 6.0 15.875 27 3.46 1.8 2.5 Picture Internal External 0 Applicable holders D32 Stock item Jm Threading 14
