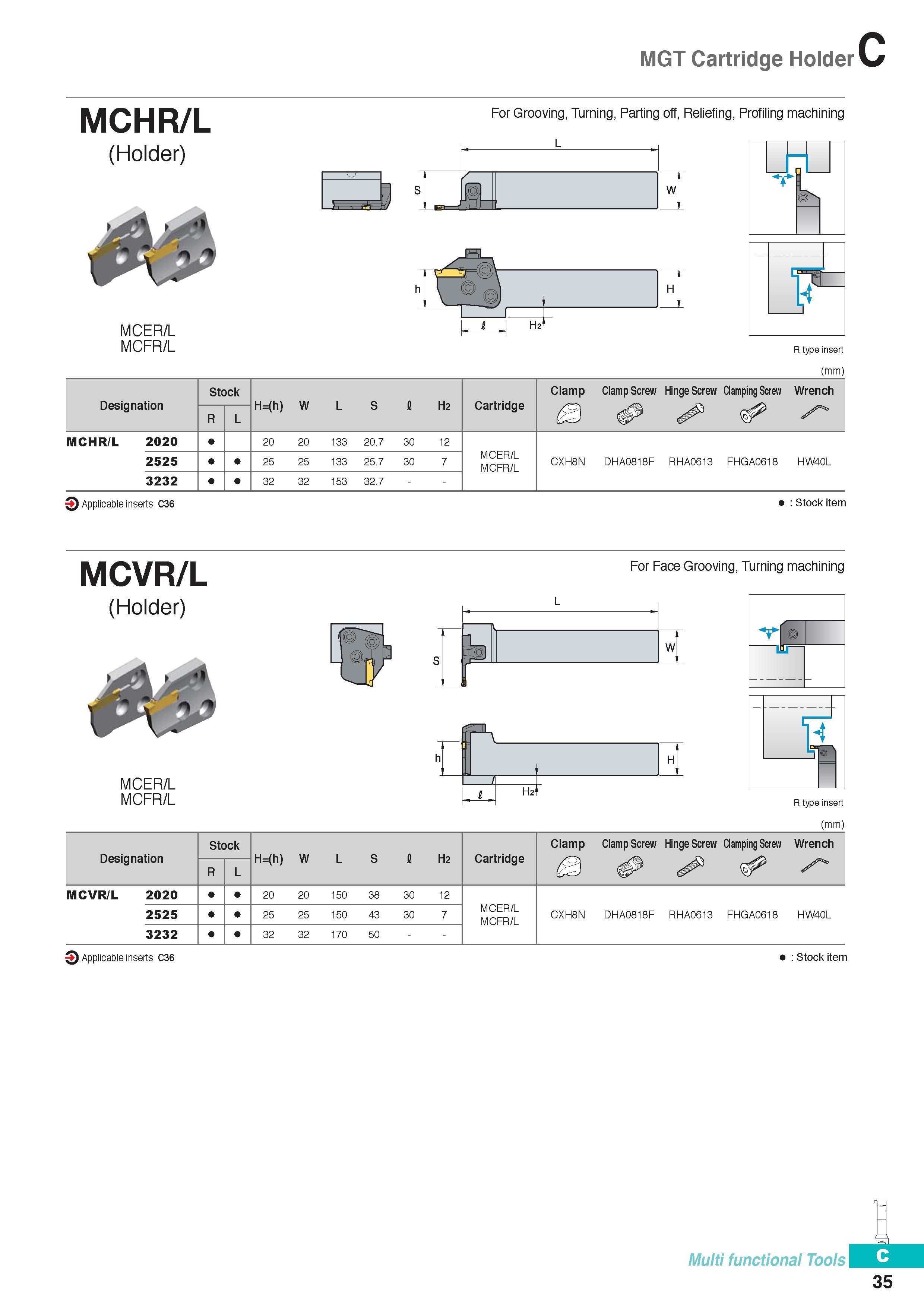

MGT Cartridge Holder MCHR/L (Holder) MCER/L MCFR/L For Grooving, Turning, Parting off, Reliefing, Profiling machining L W H<:o))V J i, H i' 4 s 'J 1 R type insert (mm) Designation Stock H-(h) W L S I H2 Cartridge Clamp a Clamp Screw Hinge Screw Clamping Screw Wrench R L MCHR/L 2020 20 20 133 20.7 30 12 2525 25 25 133 25.7 30 7 MCER/L MCFR/L CXH8N DHA0818F RHA0613 FHGA0618 HW40L 3232 32 32 153 32.7 3 Applicable inserts C36 Stock item MCVR/L (Holder) MCER/L MCFR/L For Face Grooving, Turning machining w IT h r / if, Hal R type insert (mm) Designation Stock H=(h) W L S I H2 Cartridge Clamp Clamp Screw Hinge Screw Clamping Screw cP Wrench R L MCVR/L 2020 20 20 150 38 30 12 2525 25 25 150 43 30 7 MCER/L MCFR/L CXH8N DHA0818F RHA0613 FHGA0618 HW40L 3232 32 32 170 50 3 Applicable inserts C36 Stock item Multi functional Tools 35
