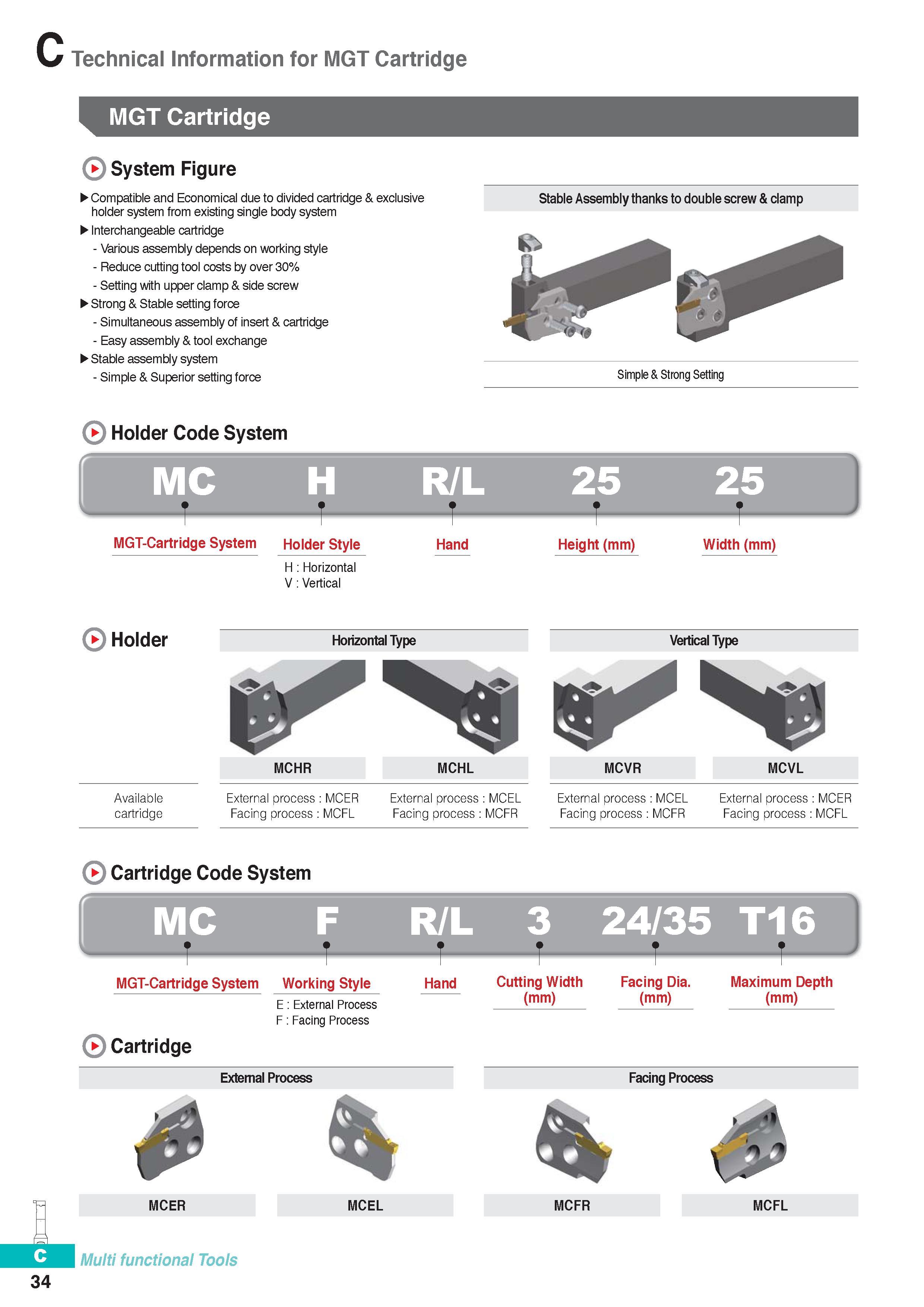

MGT Cartridge Korloy System Figure Compatible and Economical due to divided cartridge & exclusive holder system from existing single body system Interchangeable cartridge - Various assembly depends on working style - Reduce cutting tool costs by over 30% - Setting with upper clamp & side screw Strong & Stable setting force - Simultaneous assembly of insert & cartridge - Easy assembly & tool exchange Stable assembly system - Simple & Superior setting force Stable Assembly thanks to double screw & clamp Holder Code System MC MGT-Cartridge System Holder Style H Horizontal V Vertical R/L Hand Simple & Strong Setting 25 Height (mm) 25 Width (mm) Holder Horizontal Type Vertical Type Kk f MCHR MCHL MCVR MCVL Available External process MCER External process MCEL External process MCEL External process MCER cartridge Facing process MCFL Facing process MCFR Facing process MCFR Facing process MCFL Cartridge Code System MC R/L 3 24/35 T16 MGT-Cartridge System Working Style E External Process F Facing Process Cartridge Hand Cutting Width (mm) Facing Dia. (mm) Maximum Depth (mm) External Process MCER MCEL MCFR Facing Process MCFL Multi functional Tools 34 C Technical Information for MGT Cartridge
