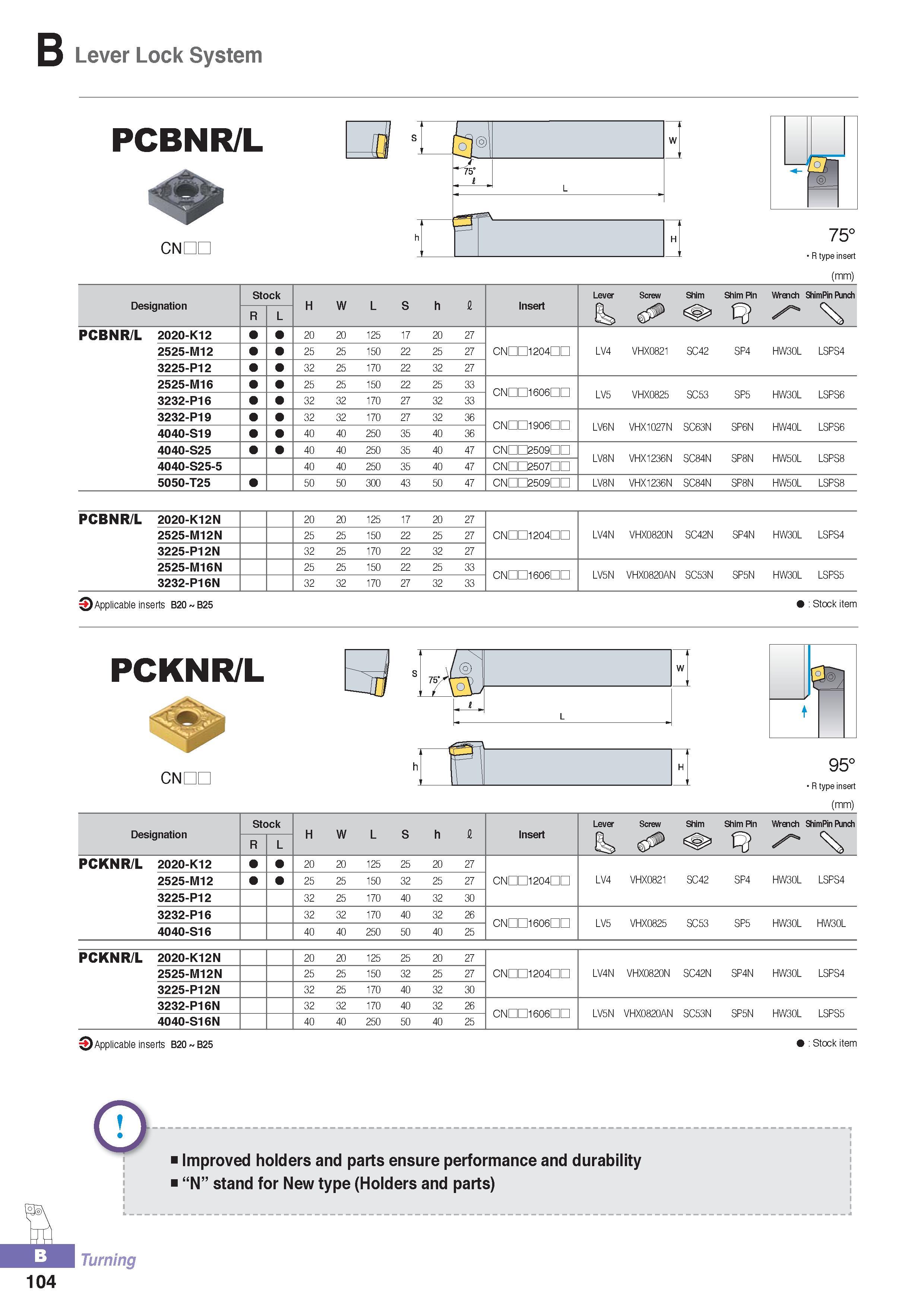

Lever Lock System PCBNR/L CNDC 75° R type insert (mm) Designation Stock H W L S h fi Lever Screw Shim Shim Pin Wrench ShimPin Punch R L Insert PCBNR/L 2020-K12 20 20 125 17 20 27 2525-M12 25 25 150 22 25 27 CNnni204nn LV4 VHX0821 SC42 SP4 HW30L LSPS4 3225-P12 32 25 170 22 32 27 2525-M16 25 25 150 22 25 33 CNDni606Dn LV5 VHX0825 SC53 SP5 HW30L LSPS6 3232-P16 32 32 170 27 32 33 3232-P19 32 32 170 27 32 36 CNDni906Dn LV6N VHX1027N SC63N SP6N HW40L LSPS6 4040-S19 40 40 250 35 40 36 4040-S25 40 40 250 35 40 47 CNDD2509nn LV8N VHX1236N SC84N SP8N HW50L LSPS8 4040-S25-5 40 40 250 35 40 47 CNDD2507nn 5050-T25 50 50 300 43 50 47 CNDD2509nn LV8N VHX1236N SC84N SP8N HW50L LSPS8 PCBNR/L 2020-K12N 20 20 125 17 20 27 2525-M12N 25 25 150 22 25 27 CNDni204Dn LV4N VHX0820N SC42N SP4N HW30L LSPS4 3225-P12N 32 25 170 22 32 27 2525-M16N 25 25 150 22 25 33 CNDni606Dn LV5N VHX0820AN SC53N SP5N HW30L LSPS5 3232-P16N 32 32 170 27 32 33 Applicable inserts B20 B25 Stock item PCKNR/L CNDC H 95° R type insert (mm) PCKNR/L 2020-K12N 20 20 125 25 20 27 2525-M12N 25 25 150 32 25 27 CNDni204Dn LV4N VHX0820N SC42N SP4N HW30L LSPS4 3225-P12N 32 25 170 40 32 30 3232-P16N 32 32 170 40 32 26 CNDni606Dn LV5N VHX0820AN SC53N SP5N HW30L LSPS5 4040-S16N 40 40 250 50 40 25 Applicable inserts B20 B25 Stock item co Improved holders and parts ensure performance and durability “N” stand for New type (Holders and parts) Turning 104
