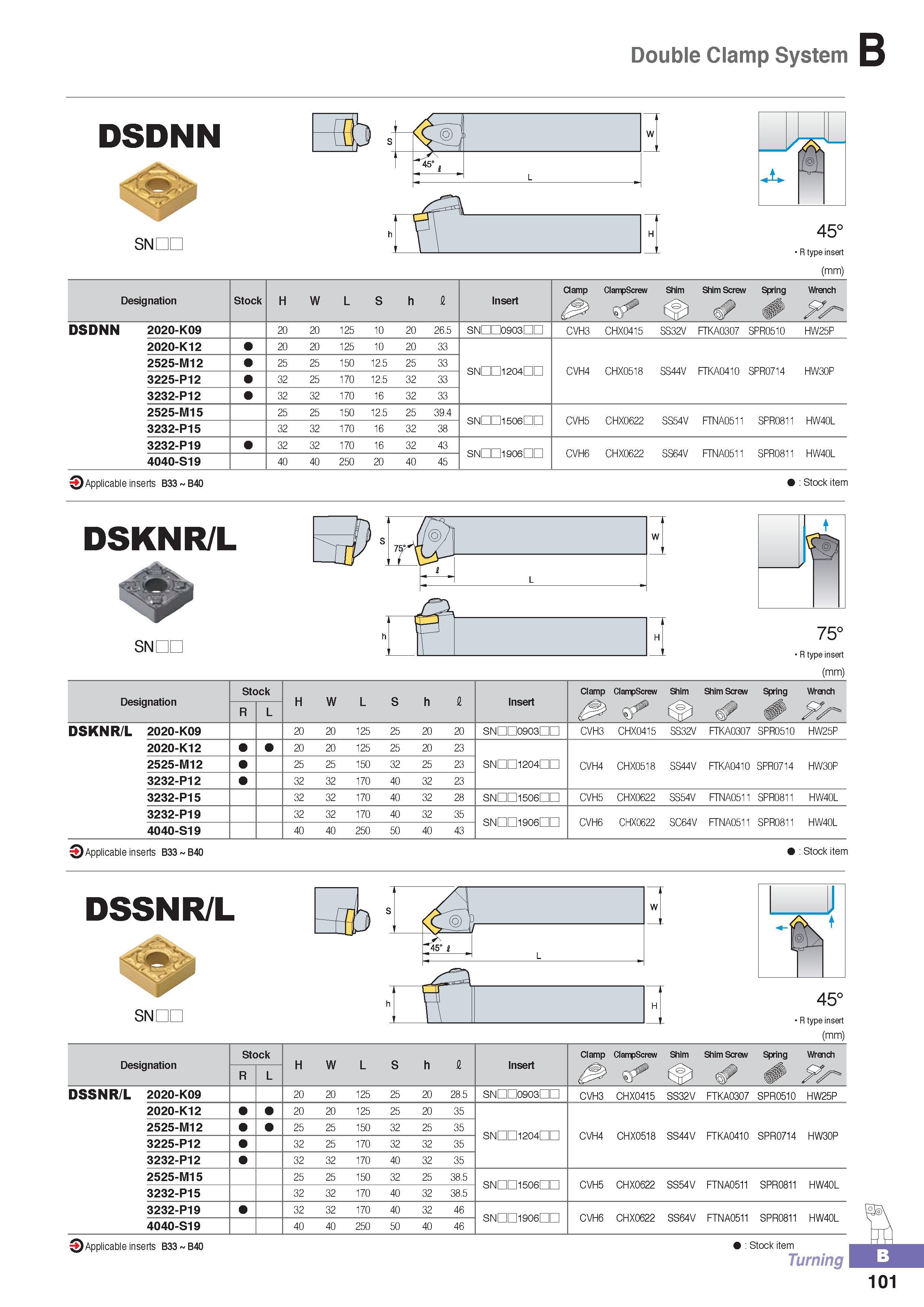

Double Clamp System DSDNN ji W v 1 L SNDC 45° R type insert (mm) Designation Stock H W L S h fi Insert Clamp ClampScrew Shim Shim Screw Spring Wrench DSDNN 2020-K09 20 20 125 10 20 26.5 SNnn0903nn CVH3 CHX0415 SS32V FTKA0307 SPR0510 HW25P 2020-K12 20 20 125 10 20 33 2525-M12 25 25 150 12.5 25 33 SNnni204nn CVH4 CHX0518 SS44V FTKA0410 SPR0714 HW30P 3225-P12 32 25 170 12.5 32 33 3232-P12 32 32 170 16 32 33 2525-M15 25 25 150 12.5 25 39.4 SNnni506nn CVH5 CHX0622 SS54V FTNA051" SPR081- HW40L 3232-P15 32 32 170 16 32 38 3232-P19 32 32 170 16 32 43 SNnni906nn CVH6 CHX0622 SS64V FTNA051- SPR081- HW40L 4040-S19 40 40 250 20 40 45 O Applicable inserts B33 B40 Stock item DSKNR/L SNDIZ 75° R type insert (mm) Designation Stock H W L S h fi Insert Clamp ClampScrew Shim Shim Screw Spring Wrench R L >5 DSKNR/L 2020-K09 20 20 125 25 20 20 SNDD0903nn CVH3 CHX0415 SS32V FTKA0307 SPR0510 HW25P 2020-K12 20 20 125 25 20 23 2525-M12 25 25 150 32 25 23 SNnni204nn CVH4 CHX0518 SS44V FTKA0410 SPR0714 HW30P 3232-P12 32 32 170 40 32 23 3232-P15 32 32 170 40 32 28 SNnni506nn CVH5 CHX0622 SS54V FTNA0511 SPR0811 HW40L 3232-P19 32 32 170 40 32 35 SNnni906nn CVH6 CHX0622 SC64V FTNA051- SPR081- HW40L 4040-S19 40 40 250 50 40 43 O Applicable inserts B33 B40 Stock item DSSNR/L SNDIZ R type insert (mm) Designation Stock H W L S h fi Insert Clamp ClampScrew Shim Shim Screw Spring Wrench R L er DSSNR/L 2020-K09 20 20 125 25 20 28.5 SNnn0903DD CVH3 CHX04i5 SS32V FTKA0307 SPR05i0 HW25P 2020-K12 20 20 125 25 20 35 2525-M12 25 25 150 32 25 35 SNnni204nn CVH4 CHX05i8 SS44V FTKA04i0 SPR07i4 HW30P 3225-P12 32 25 170 32 32 35 3232-P12 32 32 170 40 32 35 2525-M15 25 25 150 32 25 38.5 SNnni506nn CVH5 CHX0622 SS54V FTNA05ii SPR08ii HW40L 3232-P15 32 32 170 40 32 38.5 3232-P19 32 32 170 40 32 46 SNnni906nn CVH6 CHX0622 SS64V FTNA05ii SPR08ii HW40L 4040-S19 40 40 250 50 40 46 3 Applicable inserts B33 B40 Stock item Turning 101
