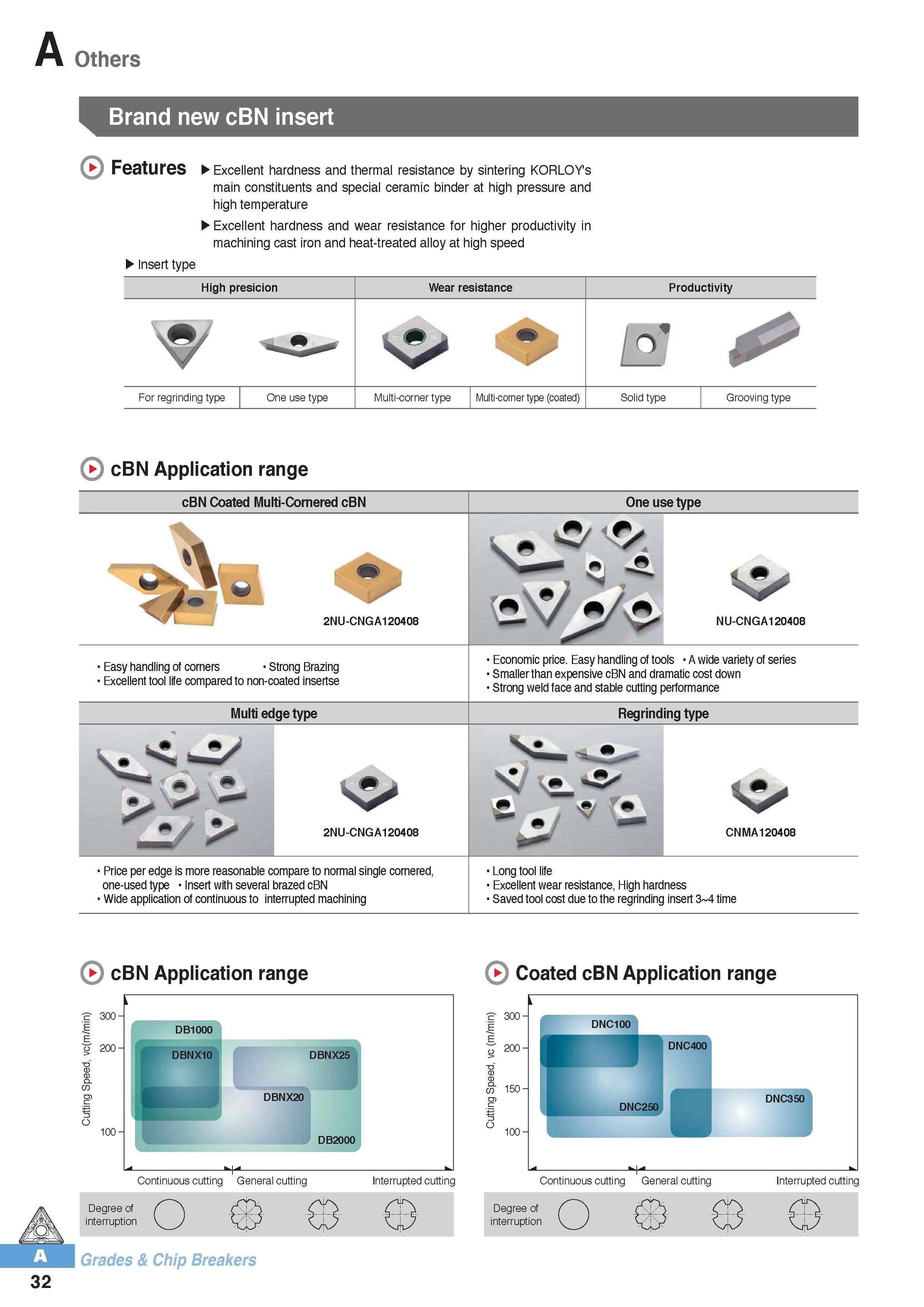

Others Brand new cBN insert Features Excellent hardness and thermal resistance by sintering KORLOYs main constituents and special ceramic binder at high pressure and high temperature Excellent hardness and wear resistance for higher productivity in machining cast iron and heat-treated alloy at high speed Insert type High presicion Wear resistance Productivity 0 For regrinding type One use type Multi-corner type Multi-corner type (coated) Solid type Grooving type cBN Application range cBN Coated Multi-Cornered cBN One use type 2NU-CNGA120408 A NU-CNGA120408 Easy handling of corners Strong Brazing Excellent tool life compared to non-coated insertse Economic price. Easy handling of tools A wide variety of series Smallerthan expensive cBN and dramatic cost down Strong weld face and stable cutting performance Multi edge type Regrinding type 2NU-CNGA120408 CNMA120408 Price per edge is more reasonable compare to normal single cornered, one-used type Insert with several brazed cBN Wide application of continuous to interrupted machining Long tool life Excellent wear resistance, High hardness Saved tool cost due to the regrinding insert 3 4 time cBN Application range Coated cBN Application range 32
