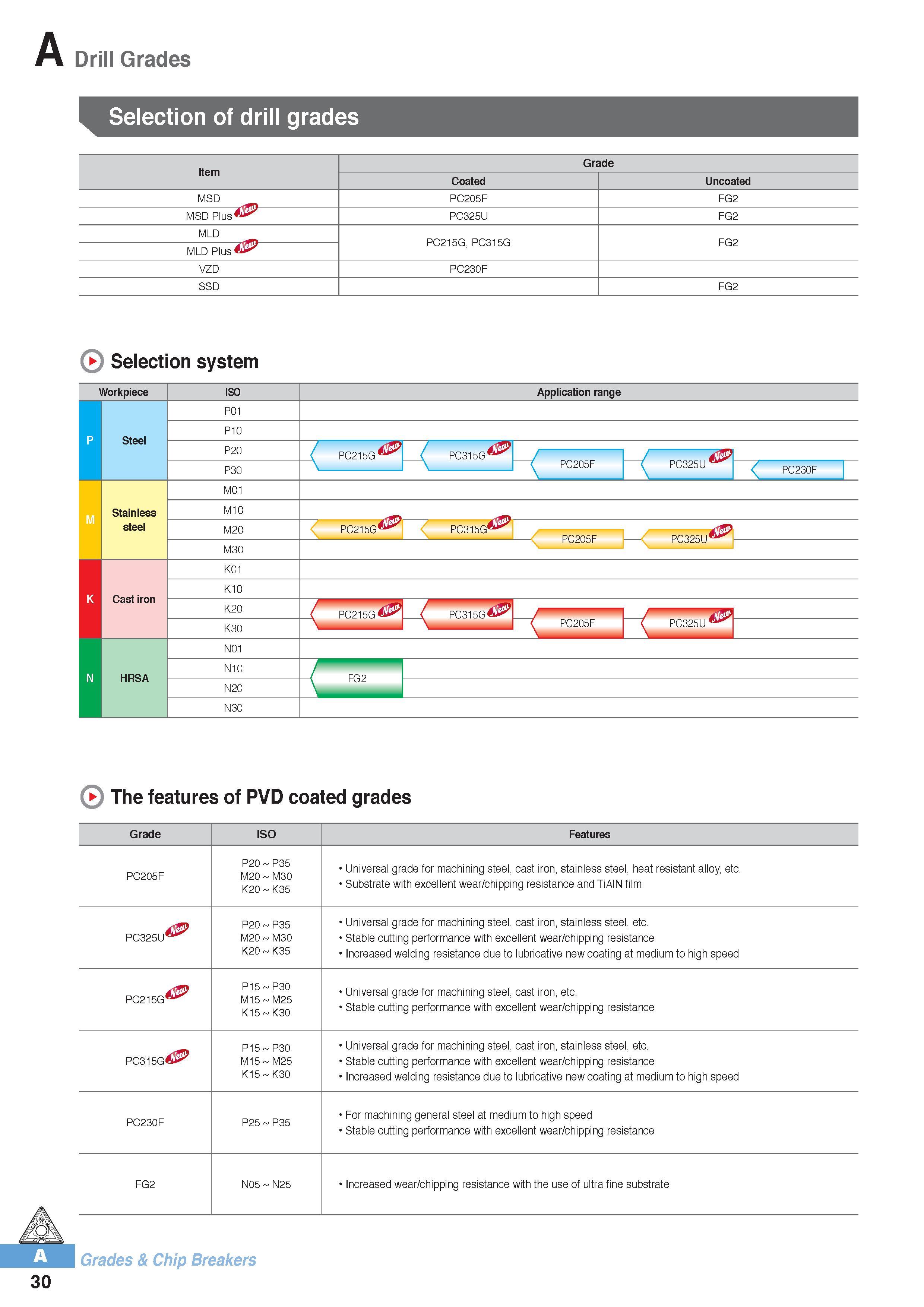

Drill Grades Selection of drill grades Item Grade Coated Uncoated MSD PC205F FG2 MSD Plus PC325U FG2 MLD PC215G, PC315G FG2 MLD Plus VZD PC230F SSD FG2 Selection system Workpiece ISO Application range Steel P01 P10 P20 P30 PC215G PC315G PC205F PC325U fM PC230F Stainless steel M01 M1C M2C M30 PC215G PC315G PC205F PC325U Cast iron HRSA K01 K10 N01 N10 N20 N30 FG2 K N The features of PVD coated grades Grade ISO Features PC205F P20 P35 M20 M30 K20 K35 Universal grade for machining steel, cast iron, stainless steel, heat resistant alloy, etc. Substrate with excellent wear/chipping resistance and TiAIN film PC325UA' P20 P35 M20 M30 K20 K35 Universal grade for machining steel, cast iron, stainless steel, etc. Stable cutting performance with excellent wear/chipping resistance Increased welding resistance due to lubricative new coating at medium to high speed PC215G P15 P30 M15 M25 K15 K30 Universal grade for machining steel, cast iron, etc. Stable cutting performance with excellent wear/chipping resistance PC315G P15 P30 M15 M25 K15 K30 Universal grade for machining steel, cast iron, stainless steel, etc. Stable cutting performance with excellent wear/chipping resistance Increased welding resistance due to lubricative new coating at medium to high speed PC230F P25 P35 For machining general steel at medium to high speed Stable cutting performance with excellent wear/chipping resistance FG2 N05 N25 Increased wear/chipping resistance with the use of ultra fine substrate A Grades & Chip Breakers 30
