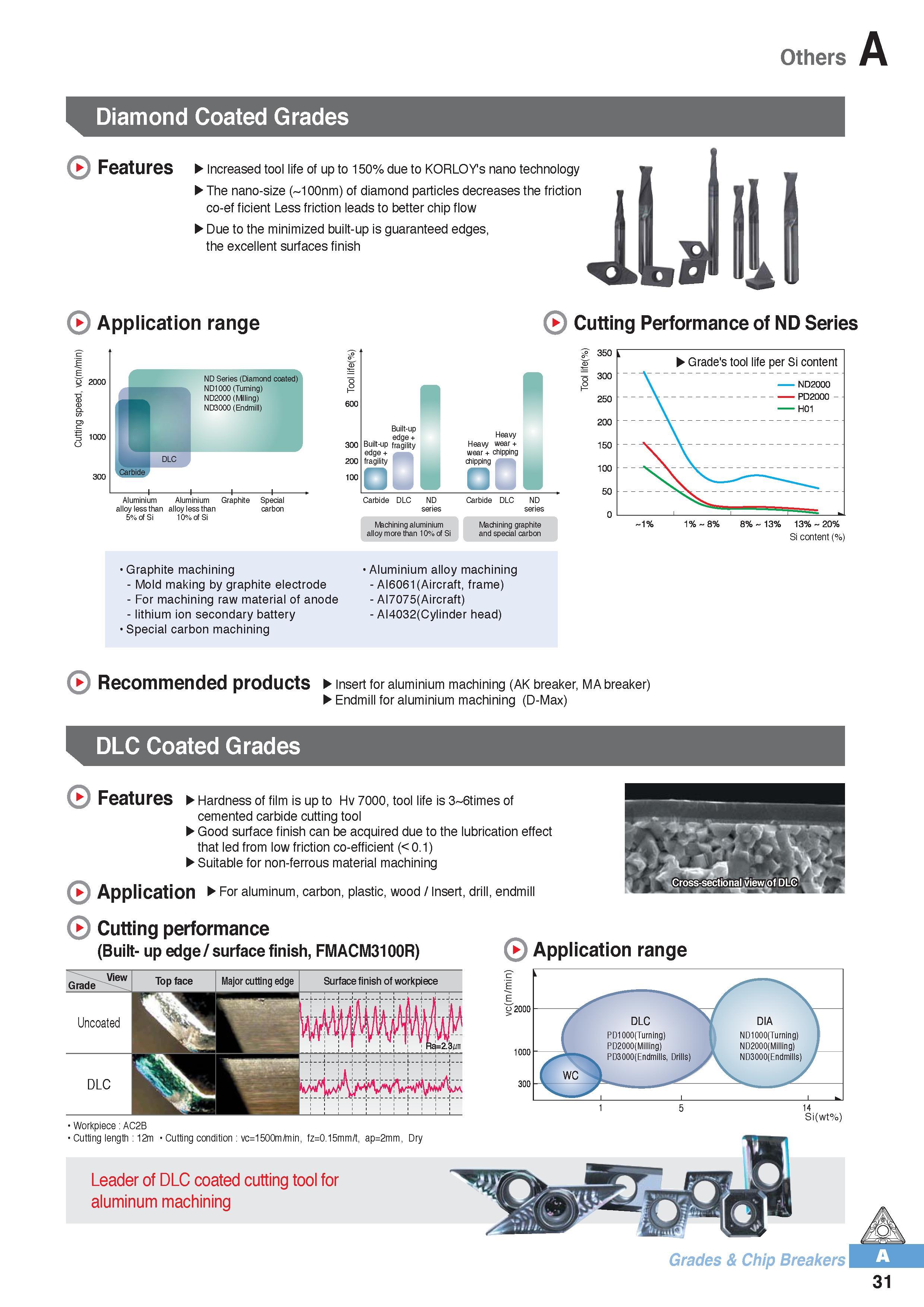

Others Diamond Coated Grades Features Increased tool life of up to 150% due to KORLOYs nano technology The nano-size ( 100nm) of diamond particles decreases the friction co-ef ficient Less friction leads to better chip flow Due to the minimized built-up is guaranteed edges, the excellent surfaces finish Application range Cutting Performance of ND Series E E 2000 ND Series (Diamond coated) ND1000 (Turning) ND2000 (Milling) ND3000 (Endmill) Carbide 300 200 100 Built-up edge + Built-up fragility edge + fragility oQI i Heavy wear + chipping ol Heavy Heavy wear wear + chipping Aluminium Aluminium Graphite Special alloy less than alloy less than carbon 5% of Si 10% of Si Carbide DLC ND series Carbide DLC ND series Machining aluminium alloy more than 10% of Si Machining graphite and special carbon Graphite machining Aluminium alloy machining - Mold making by graphite electrode - AI6061(Aircraft, frame) - For machining raw material of anode - AI7075(Aircraft) - lithium ion secondary battery - AI4032(Cylinder head) Special carbon machining Si content (%) Recommended products Insert for aluminium machining (AK breaker, MA breaker) Endmill for aluminium machining (D-Max) DLC Coated Grades Features Hardness of film is up to Hv 7000, tool life is 3 6times of cemented carbide cutting tool Good surface finish can be acquired due to the lubrication effect that led from low friction co-efficient (< 0.1) Suitable for non-ferrous material machining Application For aluminum, carbon, plastic, wood / Insert, drill, endmill Application range Cutting performance (Built- up edge / surface finish, FMACM3100R) E i o 2000 k DLC DIA PD1000(Turning) ND1000(Turning) PD2000(Milling) ND2000(Milling) PD3000(Endmills, Drills) ND3000(Endmills) Workpiece: AC2B Cutting length 12m Cutting condition vc=1500m/min, fz=0.15mm/t, ap=2mm, Dry Leader of DLC coated cutting tool for aluminum machining 14 Si(wt%) Grades & Chip Breakers 31
