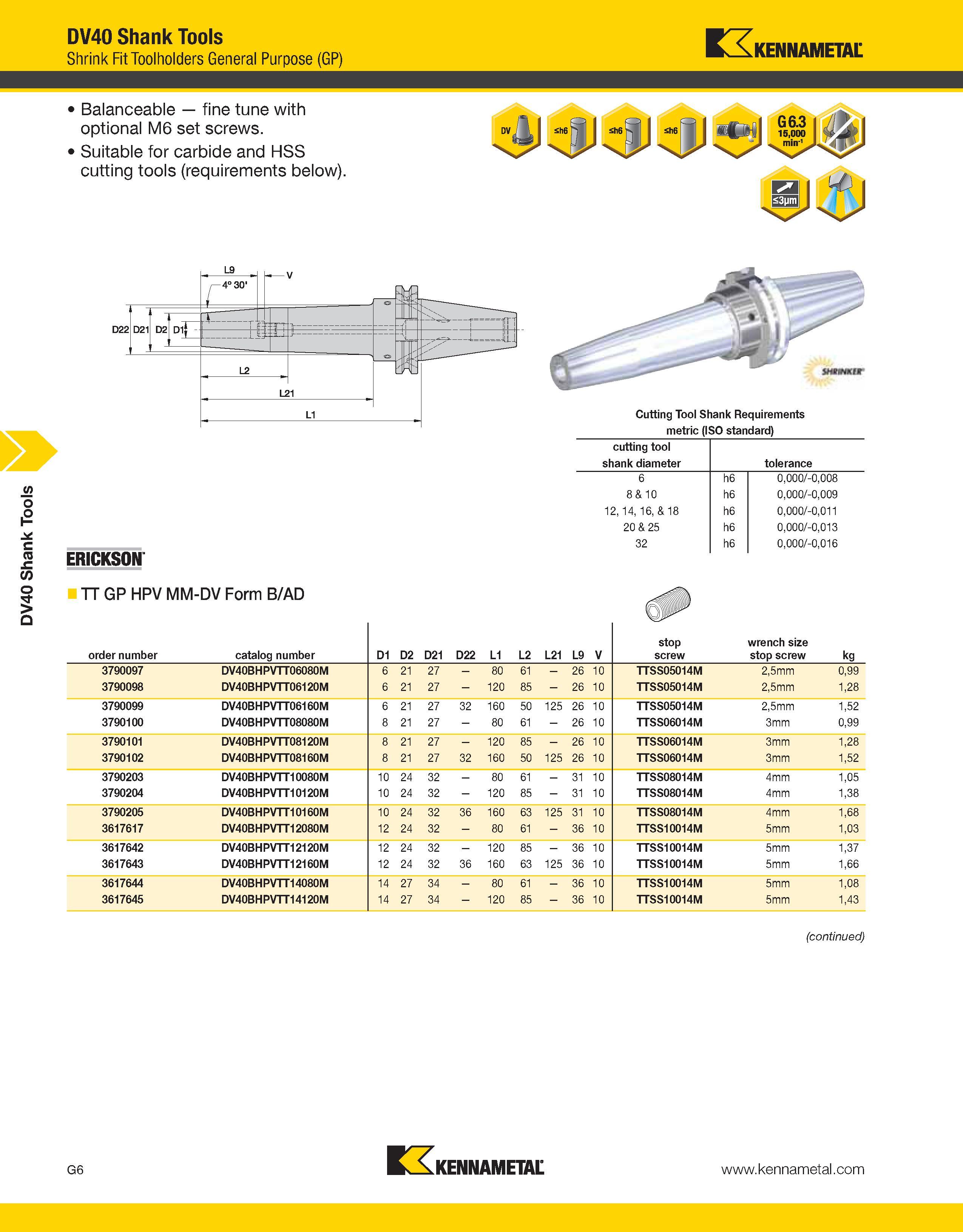

DV40 Shank Tools DV40 Shank Tools Shrink Fit Toolholders General Purpose (GP) Kennametal Balanceable fine tune with optional M6 set screws. Suitable for carbide and HSS cutting tools (requirements below). Cutting Tool Shank Requirements metric (ISO standard) ERICKSON cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT GP HPV MM-DV Form B/AD order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V stop screw wrench size stop screw kg 3790097 DV40BHPVTT06080M 6 21 27 80 61 26 10 TTSS05014M 2,5mm 0,99 3790098 DV40BHPVTT06120M 6 21 27 120 85 26 10 TTSS05014M 2,5mm 1,28 3790099 DV40BHPVTT06160M 6 21 27 32 160 50 125 26 10 TTSS05014M 2,5mm 1,52 3790100 DV40BHPVTT08080M 8 21 27 80 61 26 10 TTSS06014M 3mm 0,99 3790101 DV40BHPVTT08120M 8 21 27 120 85 26 10 TTSS06014M 3mm 1,28 3790102 DV40BHPVTT08160M 8 21 27 32 160 50 125 26 10 TTSS06014M 3mm 1,52 3790203 DV40BHPVTT10080M 10 24 32 80 61 31 10 TTSS08014M 4mm 1,05 3790204 DV40BHPVTT10120M 10 24 32 120 85 31 10 TTSS08014M 4mm 1,38 3790205 DV40BHPVTT10160M 10 24 32 36 160 63 125 31 10 TTSS08014M 4mm 1,68 3617617 DV40BHPVTT12080M 12 24 32 80 61 36 10 TTSS10014M 5mm 1,03 3617642 DV40BHPVTT12120M 12 24 32 120 85 36 10 TTSS10014M 5mm 1,37 3617643 DV40BHPVTT12160M 12 24 32 36 160 63 125 36 10 TTSS10014M 5mm 1,66 3617644 DV40BHPVTT14080M 14 27 34 80 61 36 10 TTSS10014M 5mm 1,08 3617645 DV40BHPVTT14120M 14 27 34 120 85 36 10 TTSS10014M 5mm 1,43 (continued) G6 n, KENNAMETAL
