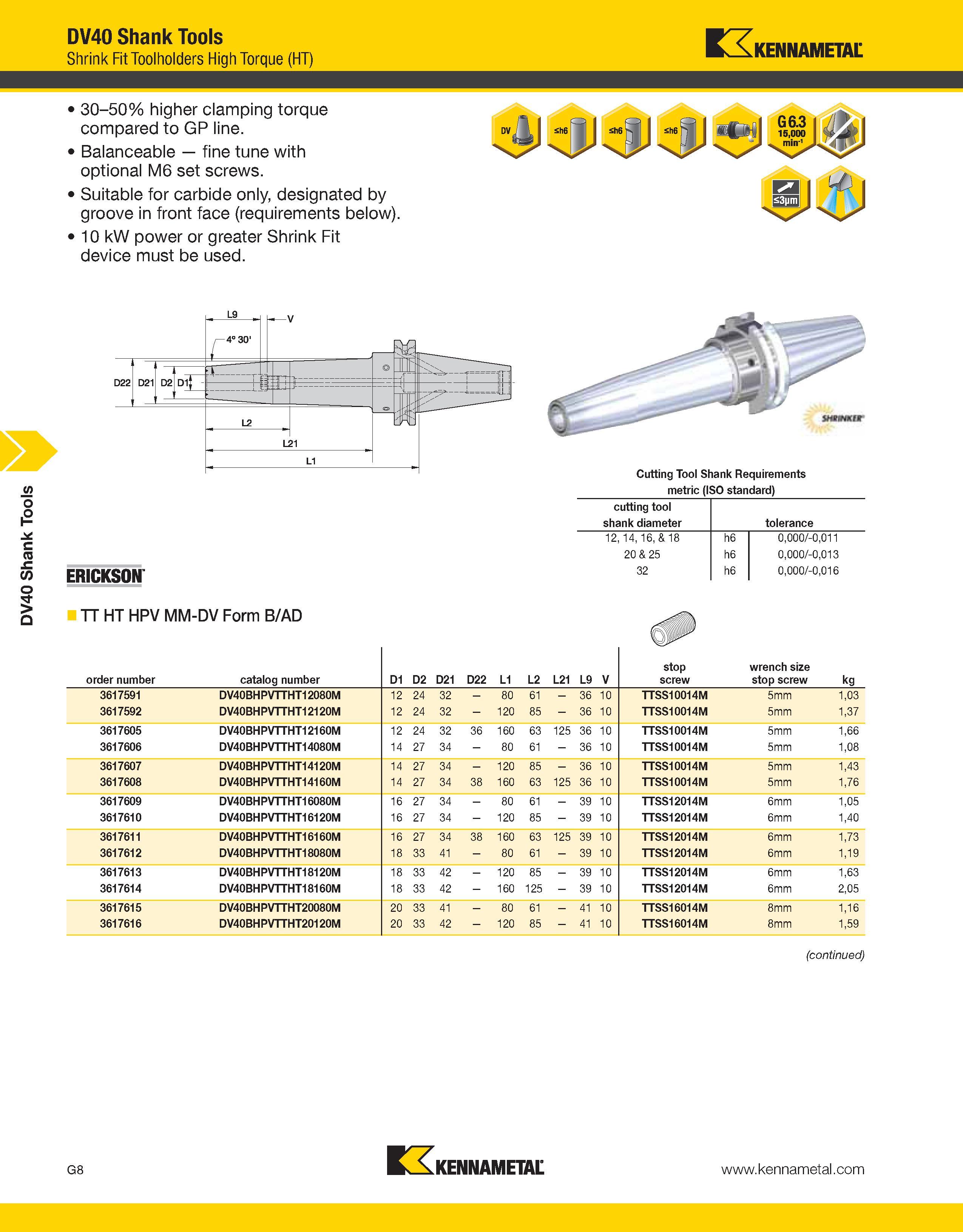

DV40 Shank Tools DV40 Shank Tools Shrink Fit Toolholders High Torque (HT) Kennametal 30-50% higher clamping torque compared to GP line. Balanceable fine tune with optional M6 set screws. Suitable for carbide only, designated by groove in front face (requirements below). 10 kW power or greater Shrink Fit device must be used. G6.3 15,000 -r D22 D21 D2|Dt Cutting Tool Shank Requirements metric (ISO standard) ERICKSON cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT HT HPV MM-DV Form B/AD (continued) G8 n KENNAMETAL
