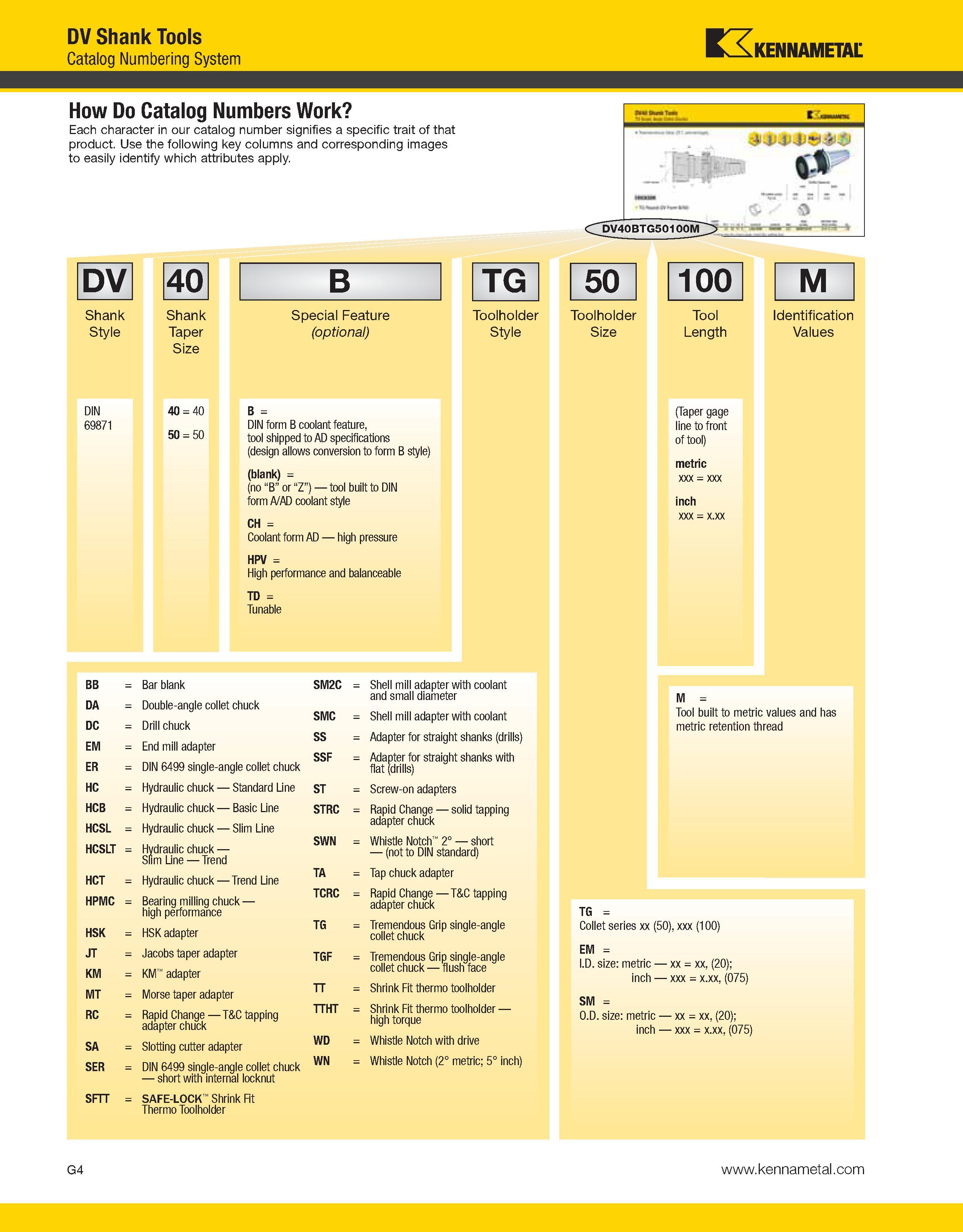

DV Shank Tools Catalog Numbering System Kennametal How Do Catalog Numbers Work Each character in our catalog number signifies a specific trait of that product. Use the following key columns and corresponding images to easily identify which attributes apply. DV 40 Shank Style Shank Taper Size B Special Feature (optional) TG 50 100 Toolholder Style Toolholder Size Tool Length Identification Values DIN 69871 40 = 40 50 = 50 B = DIN form B coolant feature, tool shipped to AD specifications (design allows conversion to form B style) (blank) = (no “B” or “Z”) tool built to DIN form A/AD coolant style CH = Coolant form AD high pressure HPV = High performance and balanceable TD = Tunable (Taper gage line to front of tool) metric xxx = xxx inch xxx = x.xx BB = Bar blank DA = Double-angle collet chuck DC = Drill chuck EM = End mill adapter ER = DIN 6499 single-angle collet chuck HC = Hydraulic chuck Standard Line HCB = Hydraulic chuck Basic Line HCSL = Hydraulic chuck Slim Line HCSLT = Hydraulic chuck Slim Line Trend HCT = Hydraulic chuck Trend Line HPMC = Bearing milling chuck high performance HSK = HSK adapter JT = Jacobs taper adapter KM = KM adapter MT = Morse taper adapter RC = Rapid Change T&C tapping adapter chuck SA = Slotting cutter adapter SER = DIN 6499 single-angle collet chuck short with internal locknut SFTT = SAFE-LOCK Shrink Fit Thermo Toolholder SM2C = Shell mill adapter with coolant and small diameter SMC = Shell mill adapter with coolant SS = Adapter for straight shanks (drills) SSF = Adapter for straight shanks with flat (drills) ST = Screw-on adapters STRC = Rapid Change solid tapping adapter chuck SWN = Whistle Notch 2° short (not to DIN standard) TA = Tap chuck adapter TCRC = Rapid Change T&C tapping adapter chuck TG = Tremendous Grip single-angle collet chuck TGF = Tremendous Grip single-angle collet chuck flush face TT = Shrink Fit thermo toolholder TTHT = Shrink Fit thermo toolholder high torque WD = Whistle Notch with drive WN = Whistle Notch (2° metric; 5° inch) M= Tool built to metric values and has metric retention thread TG = Collet series xx (50), xxx (100) EM = I.D. size: metric xx = xx, (20); inch xxx = x.xx, (075) SM = O.D. size: metric xx = xx, (20); inch xxx = x.xx, (075) M G4
