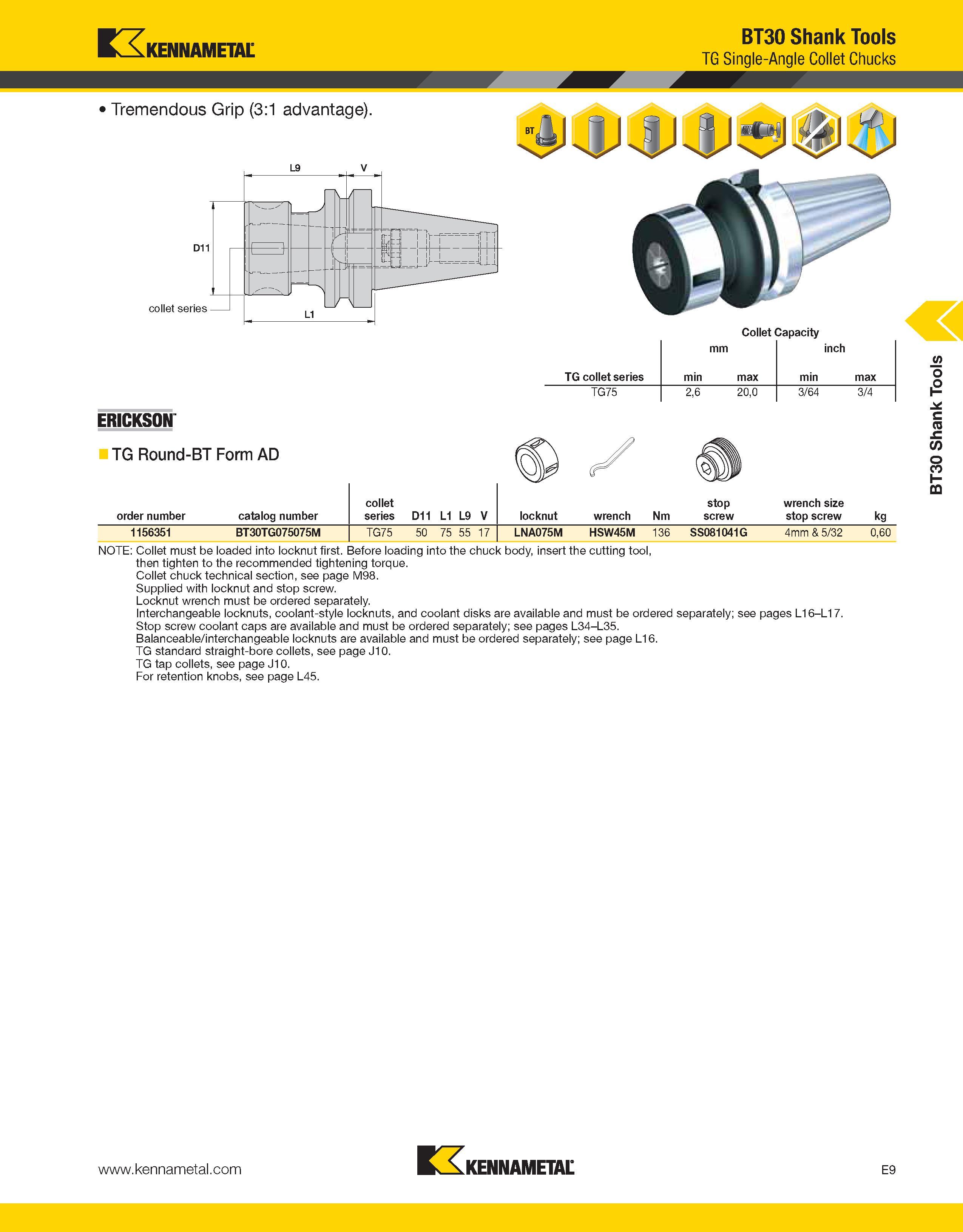

Kennametal BT30 Shank Tools TG Single-Angle Collet Chucks Tremendous Grip (3:1 advantage). collet series Collet Capacity mm inch TG collet series min max min max TG75 2,6 20,0 3/64 3/4 ERICKSON TG Round-BT Form AD order number catalog number collet series D11 L1 L9 V locknut wrench Nm stop screw wrench size stop screw kg 1156351 BT30TG075075M TG75 50 75 55 17 LNA075M HSW45M 136 SS081041G 4mm & 5/32 0,60 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page M98. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see pages L16-L17. Stop screw coolant caps are available and must be ordered separately; see pages L34-L35. Balanceable/interchangeable locknuts are available and must be ordered separately; see page L16. TG standard straight-bore collets, see page J10. TG tap collets, see page J10. For retention knobs, see page L45. Kennametal E9 BT30 Shank Tools
