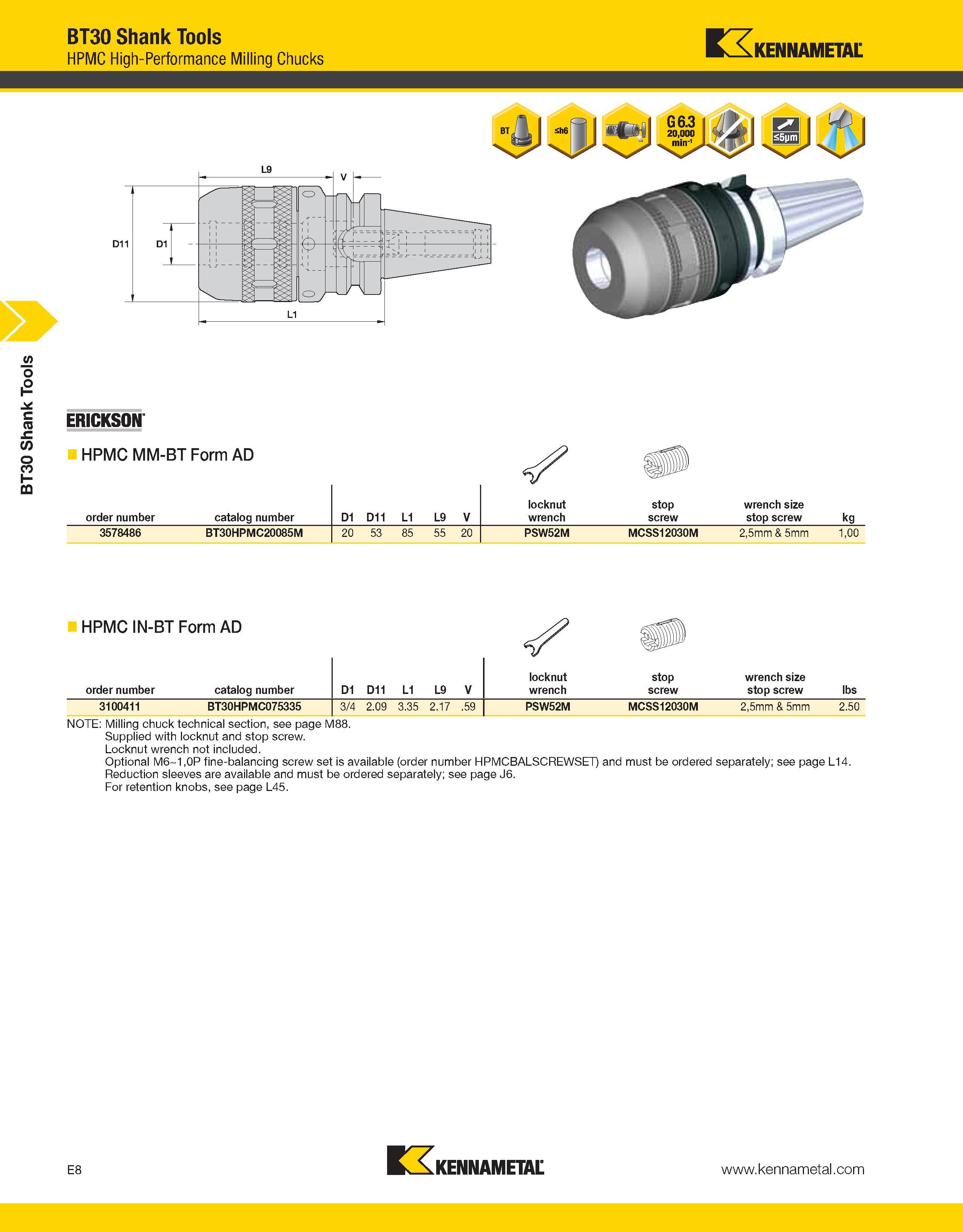

BT30 Shank Tools BT30 Shank Tools HPMC High-Performance Milling Chucks Kennametal ERICKSON HPMC MM-BT Form AD locknut stop wrench size order number catalog number D1 D11 L1 L9 V wrench screw stop screw kg 3578486 BT30HPMC20085M 20 53 85 55 20 PSW52M MCSS12030M 2,5mm & 5mm 1,00 HPMC IN-BT Form AD locknut stop wrench size order number catalog number D1 D11 L1 L9 V wrench screw stop screw lbs 3100411 BT30HPMC075335 3/4 2.09 3.35 2.17 .59 PSW52M MCSS12030M 2,5mm & 5mm 2.50 NOTE: Milling chuck technical section, see page M88. Supplied with locknut and stop screw. Locknut wrench not included. Optional M6 1,0P fine-balancing screw set is available (order number HPMCBALSCREWSET) and must be ordered separately; see page L14. Reduction sleeves are available and must be ordered separately; see page J6. For retention knobs, see page L45. E8 Kennametal
