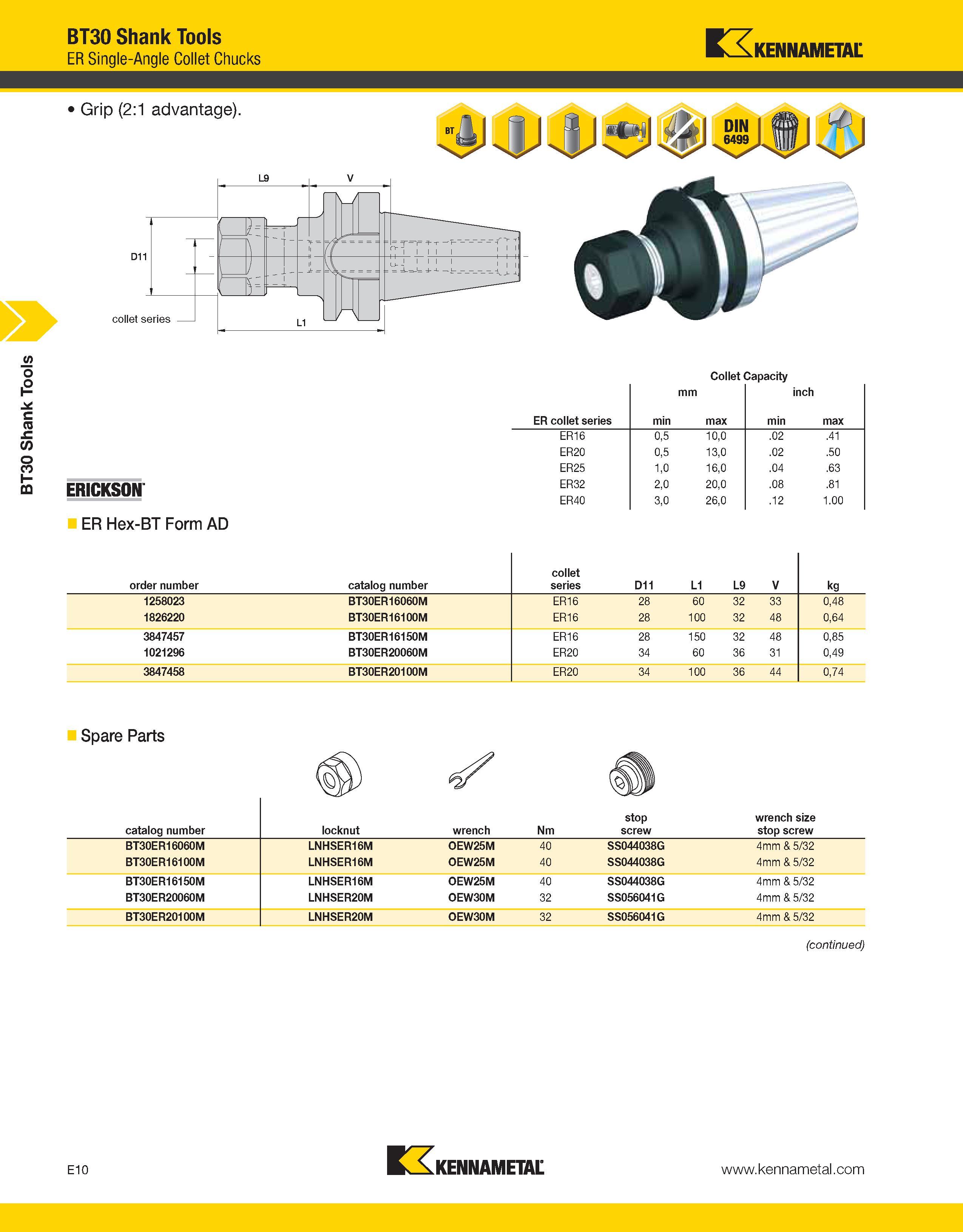

BT30 Shank Tools BT30 Shank Tools ER Single-Angle Collet Chucks Kennametal Grip (2:1 advantage). Collet Capacity mm inch ER collet series min max min max ER16 0,5 10,0 .02 .41 ER20 0,5 13,0 .02 .50 ER25 1,0 16,0 .04 .63 ERICKSON ER32 2,0 20,0 .08 .81 ER40 3,0 26,0 .12 1.00 ER Hex-BT Form AD collet order number catalog number series D11 L1 L9 V kg 1258023 BT30ER16060M ER16 28 60 32 33 0,48 1826220 BT30ER16100M ER16 28 100 32 48 0,64 3847457 BT30ER16150M ER16 28 150 32 48 0,85 1021296 BT30ER20060M ER20 34 60 36 31 0,49 3847458 BT30ER20100M ER20 34 100 36 44 0,74 Spare Parts catalog number locknut wrench Nm stop screw wrench size stop screw BT30ER16060M LNHSER16M OEW25M 40 SS044038G 4mm & 5/32 BT30ER16100M LNHSER16M OEW25M 40 SS044038G 4mm & 5/32 BT30ER16150M LNHSER16M OEW25M 40 SS044038G 4mm & 5/32 BT30ER20060M LNHSER20M 0EW30M 32 SS056041G 4mm & 5/32 BT30ER20100M LNHSER20M OEW30M 32 SS056041G 4mm & 5/32 (continued) E10 n, KENNAMETAL
