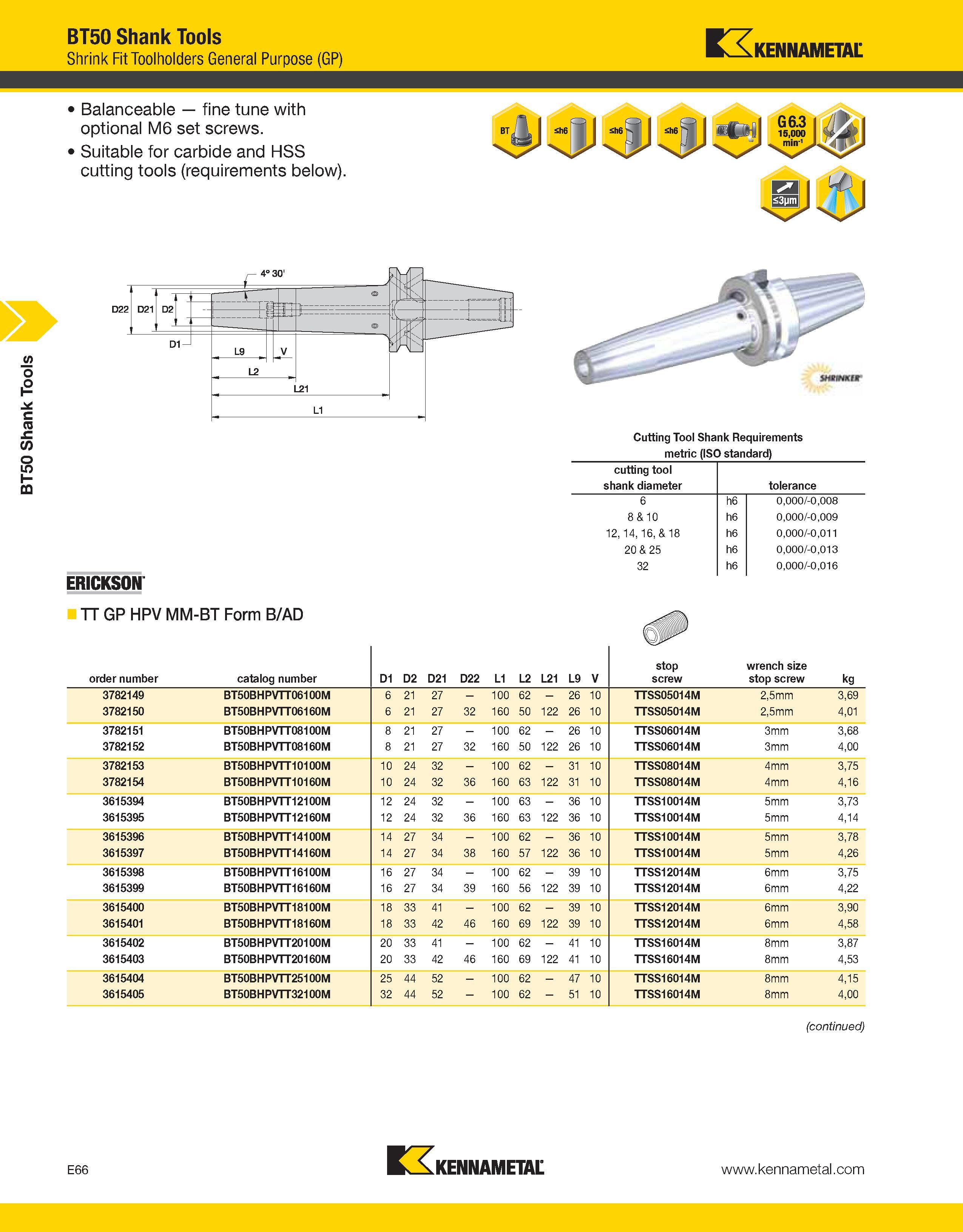

BT50 Shank Tools BT50 Shank Tools Shrink Fit Toolholders General Purpose (GP) Kennametal Balanceable fine tune with optional M6 set screws. Suitable for carbide and HSS cutting tools (requirements below). ERICKSON Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT GP HPV MM-BT Form B/AD order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V stop screw wrench size stop screw kg 3782149 BT50BHPVTT06100M 6 21 27 100 62 26 10 TTSS05014M 2,5mm 3,69 3782150 BT50BHPVTT06160M 6 21 27 32 160 50 122 26 10 TTSS05014M 2,5mm 4,01 3782151 BT50BHPVTT08100M 8 21 27 100 62 26 10 TTSS06014M 3mm 3,68 3782152 BT50BHPVTT08160M 8 21 27 32 160 50 122 26 10 TTSS06014M 3mm 4,00 3782153 BT50BHPVTT10100M 10 24 32 100 62 31 10 TTSS08014M 4mm 3,75 3782154 BT50BHPVTT10160M 10 24 32 36 160 63 122 31 10 TTSS08014M 4mm 4,16 3615394 BT50BHPVTT12100M 12 24 32 100 63 36 10 TTSS10014M 5mm 3,73 3615395 BT50BHPVTT12160M 12 24 32 36 160 63 122 36 10 TTSS10014M 5mm 4,14 3615396 BT50BHPVTT14100M 14 27 34 100 62 36 10 TTSS10014M 5mm 3,78 3615397 BT50BHPVTT14160M 14 27 34 38 160 57 122 36 10 TTSS10014M 5mm 4,26 3615398 BT50BHPVTT16100M 16 27 34 100 62 39 10 TTSS12014M 6mm 3,75 3615399 BT50BHPVTT16160M 16 27 34 39 160 56 122 39 10 TTSS12014M 6mm 4,22 3615400 BT50BHPVTT18100M 18 33 41 100 62 39 10 TTSS12014M 6mm 3,90 3615401 BT50BHPVTT18160M 18 33 42 46 160 69 122 39 10 TTSS12014M 6mm 4,58 3615402 BT50BHPVTT20100M 20 33 41 100 62 41 10 TTSS16014M 8mm 3,87 3615403 BT50BHPVTT20160M 20 33 42 46 160 69 122 41 10 TTSS16014M 8mm 4,53 3615404 BT50BHPVTT25100M 25 44 52 100 62 47 10 TTSS16014M 8mm 4,15 3615405 BT50BHPVTT32100M 32 44 52 100 62 51 10 TTSS16014M 8mm 4,00 (continued) E66 n, KENNAMETAL
