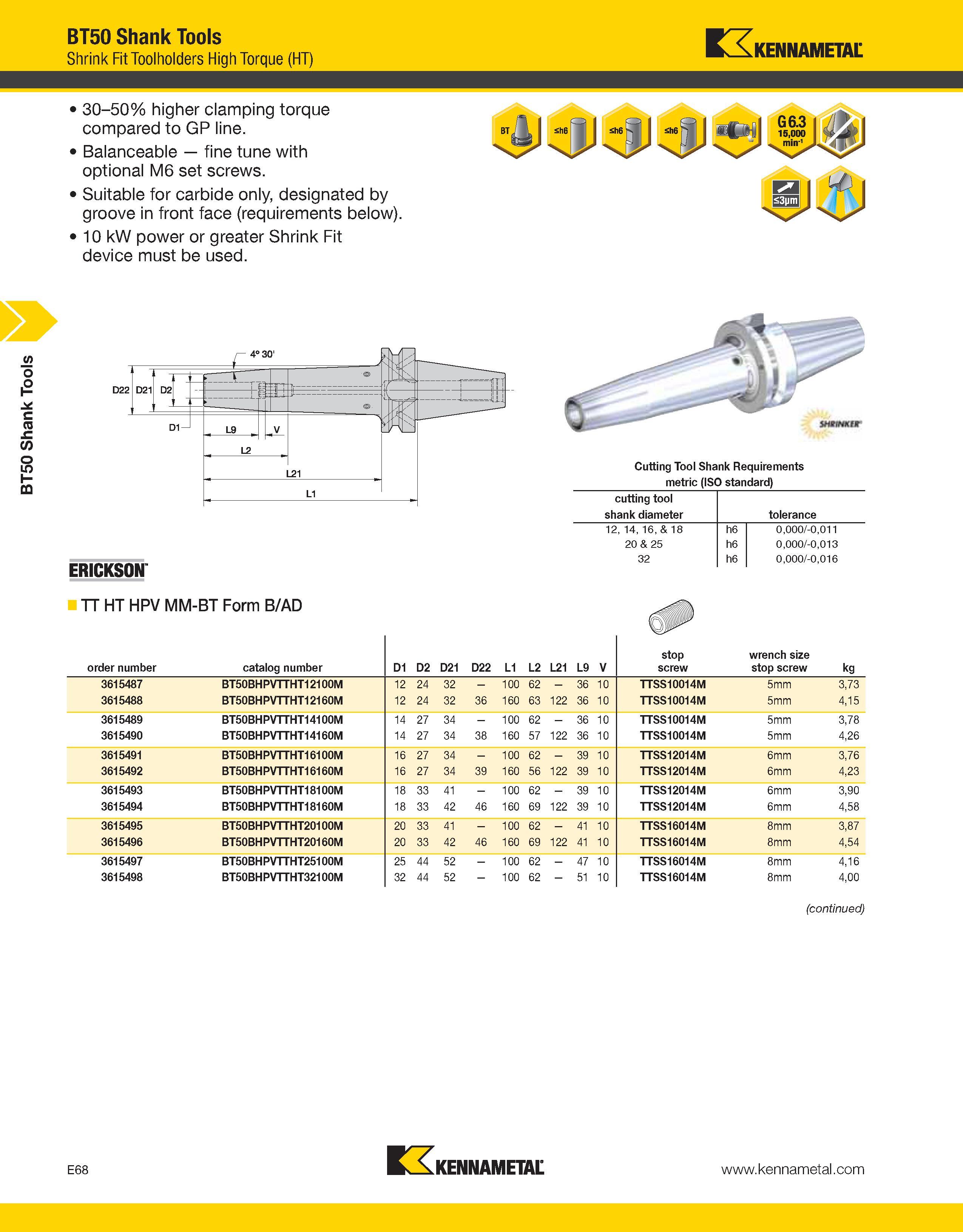

BT50 Shank Tools BT50 Shank Tools Shrink Fit Toolholders High Torque (HT) Kennametal 30-50% higher clamping torque compared to GP line. Balanceable fine tune with optional M6 set screws. Suitable for carbide only, designated by groove in front face (requirements below). 10 kW power or greater Shrink Fit device must be used. 'J Cutting Tool Shank Requirements metric (ISO standard) ERICKSON cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT HT HPV MM-BT Form B/AD order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V stop screw wrench size stop screw kg 3615487 BT50BHPVTTHT12100M 12 24 32 100 62 36 10 TTSS10014M 5mm 3,73 3615488 BT50BHPVTTHT12160M 12 24 32 36 160 63 122 36 10 TTSS10014M 5mm 4,15 3615489 BT50BHPVTTHT14100M 14 27 34 100 62 36 10 TTSS10014M 5mm 3,78 3615490 BT50BHPVTTHT14160M 14 27 34 38 160 57 122 36 10 TTSS10014M 5mm 4,26 3615491 BT50BHPVTTHT16100M 16 27 34 100 62 39 10 TTSS12014M 6mm 3,76 3615492 BT50BHPVTTHT16160M 16 27 34 39 160 56 122 39 10 TTSS12014M 6mm 4,23 3615493 BT50BHPVTTHT18100M 18 33 41 100 62 39 10 TTSS12014M 6mm 3,90 3615494 BT50BHPVTTHT18160M 18 33 42 46 160 69 122 39 10 TTSS12014M 6mm 4,58 3615495 BT50BHPVTTHT20100M 20 33 41 100 62 41 10 TTSS16014M 8mm 3,87 3615496 BT50BHPVTTHT20160M 20 33 42 46 160 69 122 41 10 TTSS16014M 8mm 4,54 3615497 BT50BHPVTTHT25100M 25 44 52 100 62 47 10 TTSS16014M 8mm 4,16 3615498 BT50BHPVTTHT32100M 32 44 52 100 62 51 10 TTSS16014M 8mm 4,00 (continued) n, E68 KENNAMETAL
