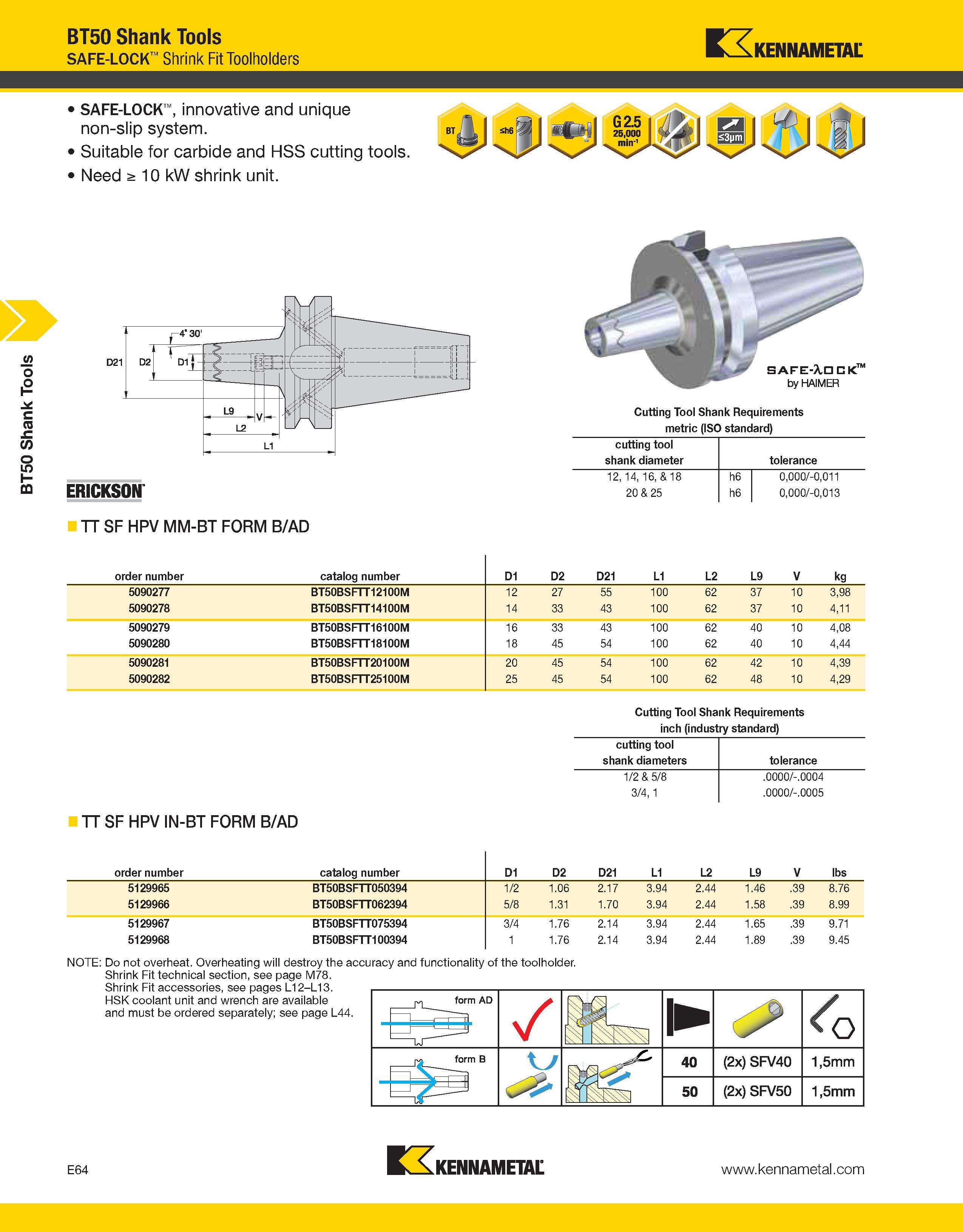

BT50 Shank Tools BT50 Shank Tools SAFE-LOCK Shrink Fit Toolholders Kennametal SAFE-LOCK , innovative and unique non-slip system. Suitable for carbide and HSS cutting tools. Need > 10 kW shrink unit. Cutting Tool Shank Requirements metric (ISO standard) ERICKSON cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 TT SF HPV MM-BT FORM B/AD order number catalog number D1 D2 D21 L1 L2 L9 V kg 5090277 BT50BSFTT12100M 12 27 55 100 62 37 10 3,98 5090278 BT50BSFTT14100M 14 33 43 100 62 37 10 4,11 5090279 BT50BSFTT16100M 16 33 43 100 62 40 10 4,08 5090280 BT50BSFTT18100M 18 45 54 100 62 40 10 4,44 5090281 BT50BSFTT20100M 20 45 54 100 62 42 10 4,39 5090282 BT50BSFTT25100M 25 45 54 100 62 48 10 4,29 Cutting Tool Shank Requirements inch (industry standard) cutting tool shank diameters tolerance 1/2 & 5/8 .0000/-.0004 3/4, 1 .0000/-.0005 TT SF HPV IN-BT FORM B/AD order number catalog number D1 D2 D21 L1 L2 L9 V lbs 5129965 BT50BSFTT050394 1/2 1.06 2.17 3.94 2.44 1.46 .39 8.76 5129966 BT50BSFTT062394 5/8 1.31 1.70 3.94 2.44 1.58 .39 8.99 5129967 BT50BSFTT075394 3/4 1.76 2.14 3.94 2.44 1.65 .39 9.71 5129968 BT50BSFTT100394 1 1.76 2.14 3.94 2.44 1.89 .39 9.45 NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page M78. Shrink Fit accessories, see pages L12-L13. HSK coolant unit and wrench are available and must be ordered separately; see page L44. form AD UJ 1 <0 pA form B 40 (2x) SFV40 1,5mm 50 (2x) SFV50 1,5mm E64 n, KENNAMETAL
