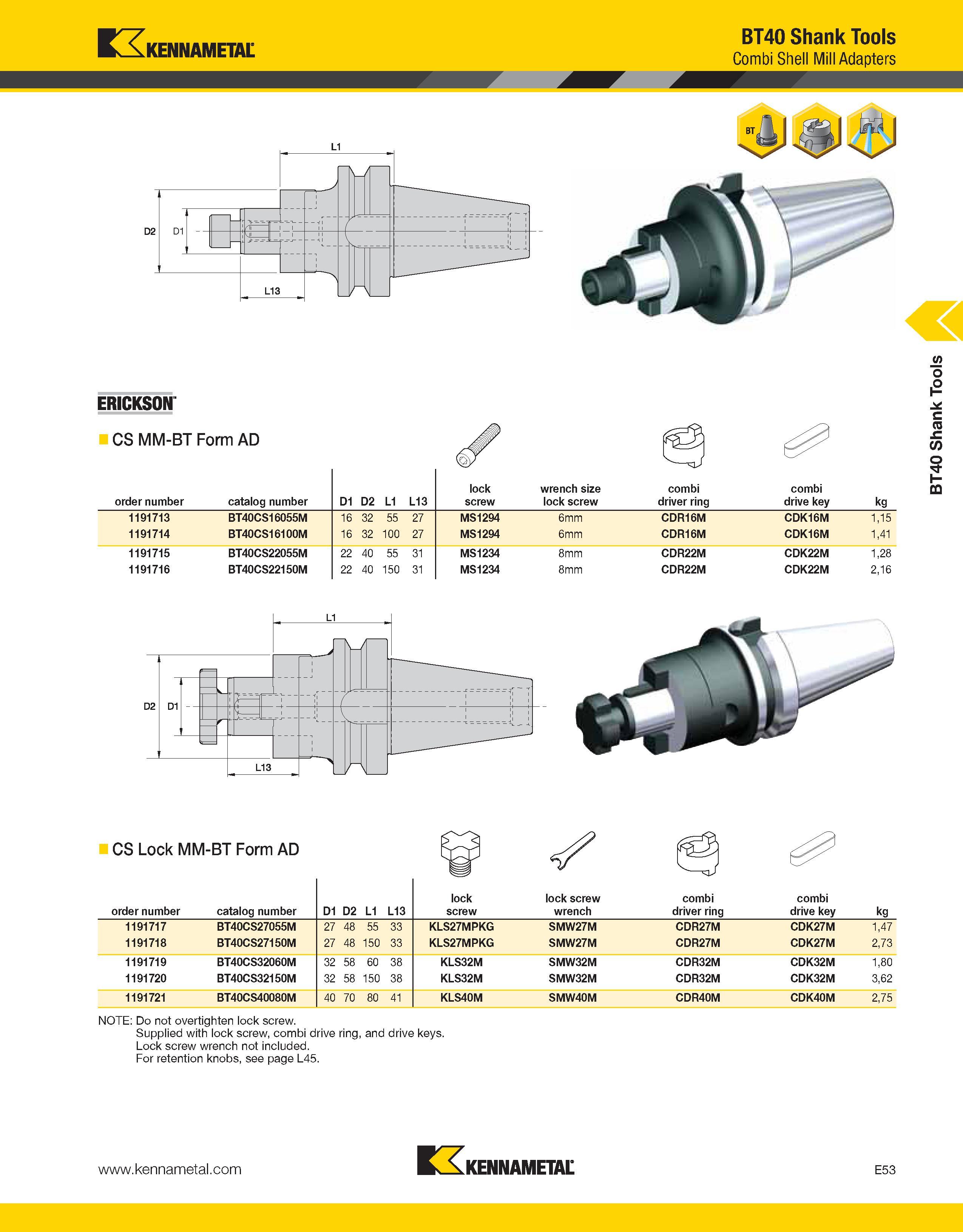

Kennametal BT40 Shank Tools Combi Shell Mill Adapters ERICKSON CS MM-BT Form AD order number catalog number D1 D2 L1 L13 lock screw wrench size lock screw combi driver ring combi drive key kg 1191713 BT40CS16055M 16 32 55 27 MS1294 6mm CDR16M CDK16M 1,15 1191714 BT40CS16100M 16 32 100 27 MS1294 6mm CDR16M CDK16M 1,41 1191715 BT40CS22055M 22 40 55 31 MS1234 8mm CDR22M CDK22M 1,28 1191716 BT40CS22150M 22 40 150 31 MS1234 8mm CDR22M CDK22M 2,16 CS Lock MM-BT Form AD order number catalog number D1 D2 L1 L13 lock screw lock screw wrench combi driver ring combi drive key kg 1191717 BT40CS27055M 27 48 55 33 KLS27MPKG SMW27M CDR27M CDK27M 1,47 1191718 BT40CS27150M 27 48 150 33 KLS27MPKG SMW27M CDR27M CDK27M 2,73 1191719 BT40CS32060M 32 58 60 38 KLS32M SMW32M CDR32M CDK32M 1,80 1191720 BT40CS32150M 32 58 150 38 KLS32M SMW32M CDR32M CDK32M 3,62 1191721 BT40CS40080M 40 70 80 41 KLS40M SMW40M CDR40M CDK40M 2,75 NOTE: Do not overtighten lock screw. Supplied with lock screw, combi drive ring, and drive keys. Lock screw wrench not included. For retention knobs, see page L45. n, KENNAMETAL E53 BT40 Shank Tools
