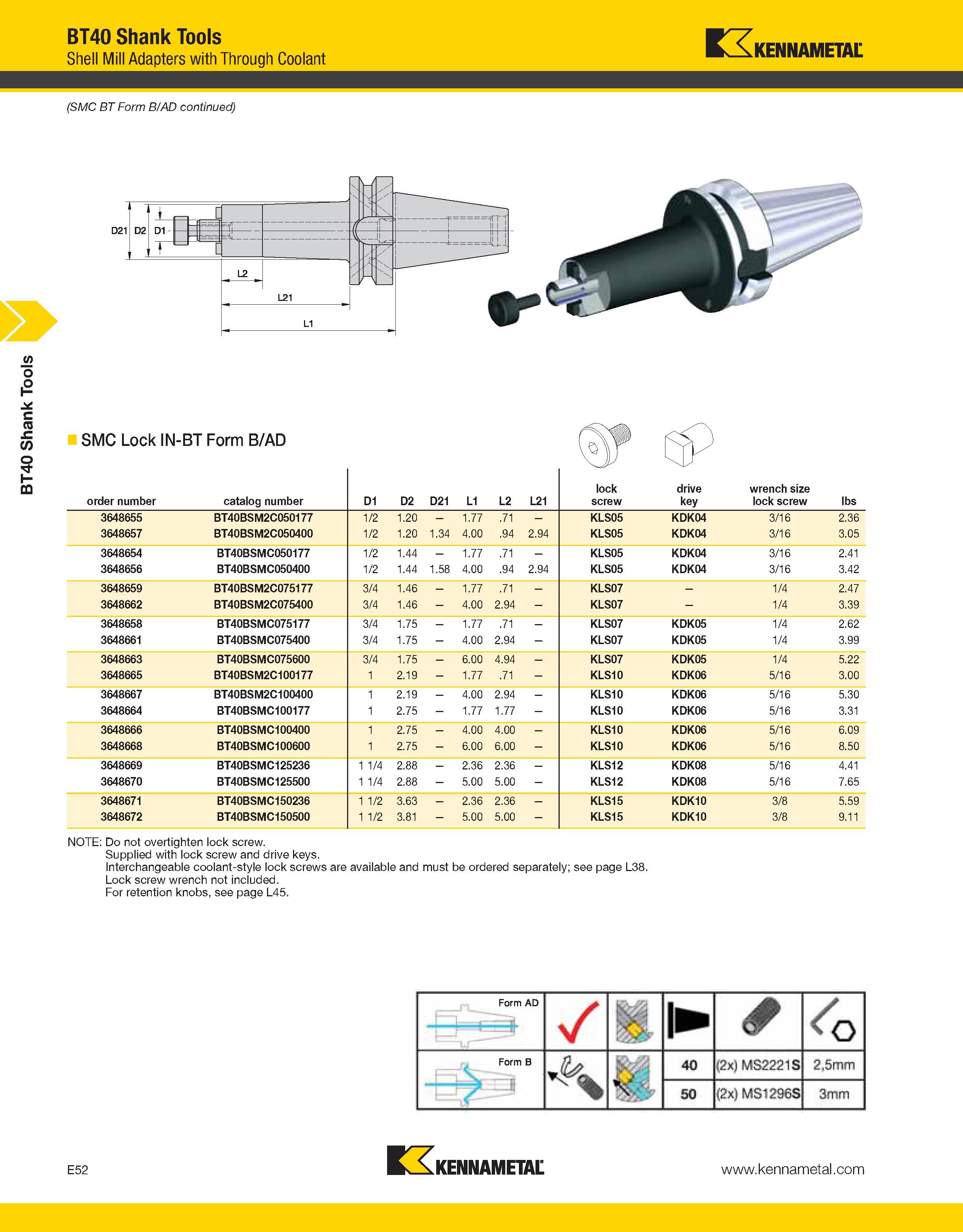

BT40 Shank Tools BT40 Shank Tools Shell Mill Adapters with Through Coolant Kennametal (SMC BT Form B/AD continued) order number catalog number D1 D2 D21 L1 L2 L21 lock screw drive key wrench size lock screw lbs 3648655 BT40BSM2C050177 1/2 1.20 - 1.77 .71 - KLS05 KDK04 3/16 2.36 3648657 BT40BSM2C050400 1/2 1.20 1.34 4.00 .94 2.94 KLS05 KDK04 3/16 3.05 3648654 BT40BSMC050177 1/2 1.44 - 1.77 .71 - KLS05 KDK04 3/16 2.41 3648656 BT40BSMC050400 1/2 1.44 1.58 4.00 .94 2.94 KLS05 KDK04 3/16 3.42 3648659 BT40BSM2C075177 3/4 1.46 - 1.77 .71 - KLS07 - 1/4 2.47 3648662 BT40BSM2C075400 3/4 1.46 - 4.00 2.94 - KLS07 - 1/4 3.39 3648658 BT40BSMC075177 3/4 1.75 - 1.77 .71 - KLS07 KDK05 1/4 2.62 3648661 BT40BSMC075400 3/4 1.75 - 4.00 2.94 - KLS07 KDK05 1/4 3.99 3648663 BT40BSMC075600 3/4 1.75 - 6.00 4.94 - KLS07 KDK05 1/4 5.22 3648665 BT40BSM2C100177 1 2.19 - 1.77 .71 - KLS10 KDK06 5/16 3.00 3648667 BT40BSM2C100400 1 2.19 - 4.00 2.94 - KLS10 KDK06 5/16 5.30 3648664 BT40BSMC100177 1 2.75 - 1.77 1.77 - KLS10 KDK06 5/16 3.31 3648666 BT40BSMC100400 1 2.75 - 4.00 4.00 - KLS10 KDK06 5/16 6.09 3648668 BT40BSMC100600 1 2.75 - 6.00 6.00 - KLS10 KDK06 5/16 8.50 3648669 BT40BSMC125236 1 1/4 2.88 - 2.36 2.36 - KLS12 KDK08 5/16 4.41 3648670 BT40BSMC125500 1 1/4 2.88 - 5.00 5.00 - KLS12 KDK08 5/16 7.65 3648671 BT40BSMC150236 1 1/2 3.63 - 2.36 2.36 - KLS15 KDK10 3/8 5.59 3648672 BT40BSMC150500 1 1/2 3.81 - 5.00 5.00 - KLS15 KDK10 3/8 9.11 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page L38. Lock screw wrench not included. For retention knobs, see page L45. E52 Kennametal
