986 Каталог KENNAMETAL 2013 Инструментальная оснастка для металлорежущих станков Стр.E56

Каталог KENNAMETAL 2013 Инструментальная оснастка Стр. E56 0986 Lab2u

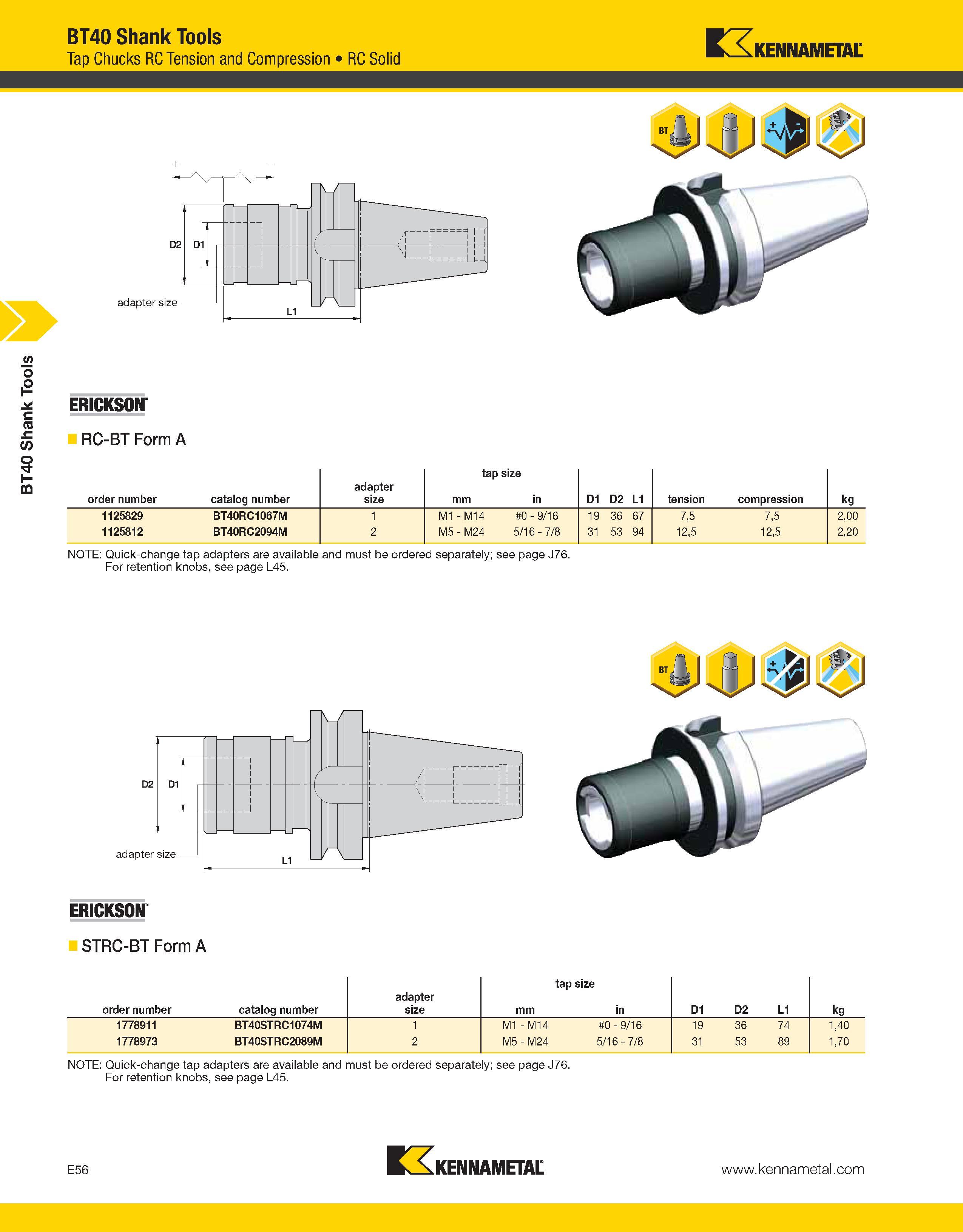

BT40 Shank Tools BT40 Shank Tools Tap Chucks RC Tension and Compression RC Solid EX KENNAMETAL ERICKSON RC-BT Form A order number catalog number adapter size tap size mm in D1 D2 L1 tension compression kg 1125829 BT40RC1067M 1 M1 - M14 0 - 9/16 19 36 67 7,5 7,5 2,00 1125812 BT40RC2094M 2 M5 - M24 5/16 - 7/8 31 53 94 12,5 12,5 2,20 NOTE: Quick-change tap adapters are available and must be ordered separately; see page J76. For retention knobs, see page L45. ERICKSON STRC-BT Form A order number catalog number er te - a tap size mm in D1 D2 L1 kg 1778911 BT40STRC1074M 1 M1 - M14 0 - 9/16 19 36 74 1,40 1778973 BT40STRC2089M 2 M5 - M24 5/16 - 7/8 31 53 89 1,70 NOTE: Quick-change tap adapters are available and must be ordered separately; see page J76. For retention knobs, see page L45. E56 n, KENNAMETAL
