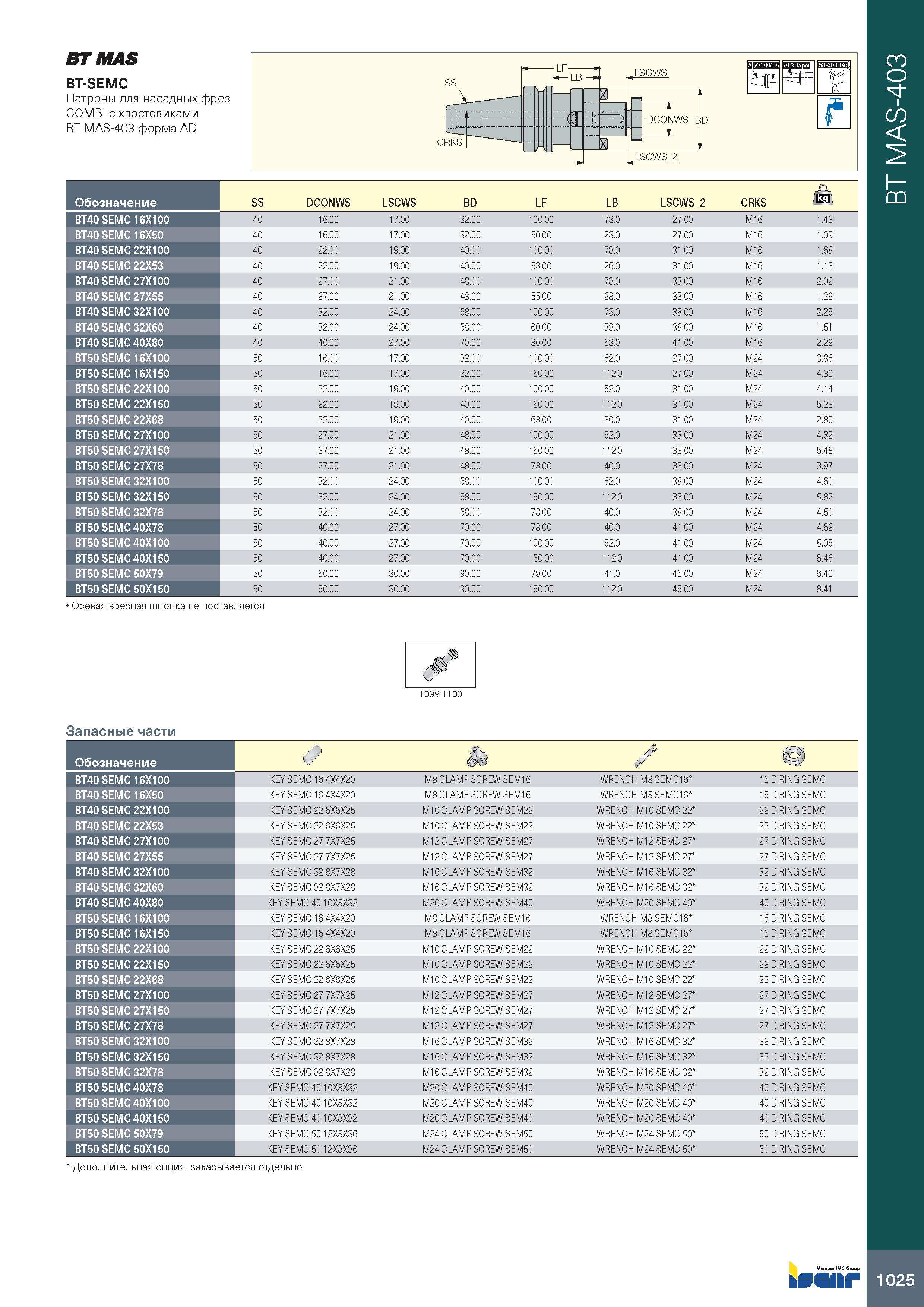

ВТ MAS BT-SEMC Патроны для насадных фрез COMBI с хвостовиками BT MAS-403 форма AD f Обозначение SS DCONWS LSCWS BD LF LB LSCWS 2 CRKS lkg BT40 SEMC 16X100 40 16.00 17.00 32.00 100.00 73.0 27.00 M16 1.42 BT40 SEMC 16X50 40 16.00 17.00 32.00 50.00 23.0 27.00 M16 1.09 BT40 SEMC 22X100 40 22.00 19.00 40.00 100.00 73.0 31.00 M16 1.68 BT40 SEMC 22X53 40 22.00 19.00 40.00 53.00 26.0 31.00 M16 1.18 BT40 SEMC 27X100 40 27.00 21.00 48.00 100.00 73.0 33.00 M16 2.02 BT40 SEMC 27X55 40 27.00 21.00 48.00 55.00 28.0 33.00 M16 1.29 BT40 SEMC 32X100 40 32.00 24.00 58.00 100.00 73.0 38.00 M16 2.26 BT40 SEMC 32X60 40 32.00 24.00 58.00 60.00 33.0 38.00 M16 1.51 BT40 SEMC 40X80 40 40.00 27.00 70.00 80.00 53.0 41.00 M16 2.29 BT50 SEMC 16X100 50 16.00 17.00 32.00 100.00 62.0 27.00 M24 3.86 BT50 SEMC 16X150 50 16.00 17.00 32.00 150.00 112.0 27.00 M24 4.30 BT50 SEMC 22X100 50 22.00 19.00 40.00 100.00 62.0 31.00 M24 4.14 BT50 SEMC 22X150 50 22.00 19.00 40.00 150.00 112.0 31.00 M24 5.23 BT50 SEMC 22X68 50 22.00 19.00 40.00 68.00 30.0 31.00 M24 2.80 BT50 SEMC 27X100 50 27.00 21.00 48.00 100.00 62.0 33.00 M24 4.32 BT50 SEMC 27X150 50 27.00 21.00 48.00 150.00 112.0 33.00 M24 5.48 BT50 SEMC 27X78 50 27.00 21.00 48.00 78.00 40.0 33.00 M24 3.97 BT50 SEMC 32X100 50 32.00 24.00 58.00 100.00 62.0 38.00 M24 4.60 BT50 SEMC 32X150 50 32.00 24.00 58.00 150.00 112.0 38.00 M24 5.82 BT50 SEMC 32X78 50 32.00 24.00 58.00 78.00 40.0 38.00 M24 4.50 BT50 SEMC 40X78 50 40.00 27.00 70.00 78.00 40.0 41.00 M24 4.62 BT50 SEMC 40X100 50 40.00 27.00 70.00 100.00 62.0 41.00 M24 5.06 BT50 SEMC 40X150 50 40.00 27.00 70.00 150.00 112.0 41.00 M24 6.46 BT50 SEMC 50X79 50 50.00 30.00 90.00 79.00 41.0 46.00 M24 6.40 BT50 SEMC 50X150 50 50.00 30.00 90.00 150.00 112.0 46.00 M24 8.41 Осевая врезная шпонка не поставляется. 1099-1100 Запасные части Обозначение m BT40 SEMC 16X100 KEY SEMC 16 4X4X20 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16 16 D.RING SEMC BT40 SEMC 16X50 KEY SEMC 16 4X4X20 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16 16 D.RING SEMC BT40 SEMC 22X100 KEY SEMC 22 6X6X25 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22 22 D.RING SEMC BT40 SEMC 22X53 KEY SEMC 22 6X6X25 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22 22 D.RING SEMC BT40 SEMC 27X100 KEY SEMC 27 7X7X25 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27 27 D.RING SEMC BT40 SEMC 27X55 KEY SEMC 27 7X7X25 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27 27 D.RING SEMC BT40 SEMC 32X100 KEY SEMC 32 8X7X28 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32 32 D.RING SEMC BT40 SEMC 32X60 KEY SEMC 32 8X7X28 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32 32 D.RING SEMC BT40 SEMC 40X80 KEY SEMC 40 10X8X32 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40 40 D.RING SEMC BT50 SEMC 16X100 KEY SEMC 16 4X4X20 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16 16 D.RING SEMC BT50 SEMC 16X150 KEY SEMC 16 4X4X20 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16 16 D.RING SEMC BT50 SEMC 22X100 KEY SEMC 22 6X6X25 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22 22 D.RING SEMC BT50 SEMC 22X150 KEY SEMC 22 6X6X25 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22 22 D.RING SEMC BT50 SEMC 22X68 KEY SEMC 22 6X6X25 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22 22 D.RING SEMC BT50 SEMC 27X100 KEY SEMC 27 7X7X25 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27 27 D.RING SEMC BT50 SEMC 27X150 KEY SEMC 27 7X7X25 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27 27 D.RING SEMC BT50 SEMC 27X78 KEY SEMC 27 7X7X25 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27 27 D.RING SEMC BT50 SEMC 32X100 KEY SEMC 32 8X7X28 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32 32 D.RING SEMC BT50 SEMC 32X150 KEY SEMC 32 8X7X28 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32 32 D.RING SEMC BT50 SEMC 32X78 KEY SEMC 32 8X7X28 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32 32 D.RING SEMC BT50 SEMC 40X78 KEY SEMC 40 10X8X32 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40 40 D.RING SEMC BT50 SEMC 40X100 KEY SEMC 40 10X8X32 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40 40 D.RING SEMC BT50 SEMC 40X150 KEY SEMC 40 10X8X32 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40 40 D.RING SEMC BT50 SEMC 50X79 KEY SEMC 50 12X8X36 M24 CLAMP SCREW SEM50 WRENCH M24 SEMC 50 50 D.RING SEMC BT50 SEMC 50X150 KEY SEMC 50 12X8X36 M24 CLAMP SCREW SEM50 WRENCH M24 SEMC 50 50 D.RING SEMC Дополнительная опция, заказывается отдельно 1025 BT MAS-403
