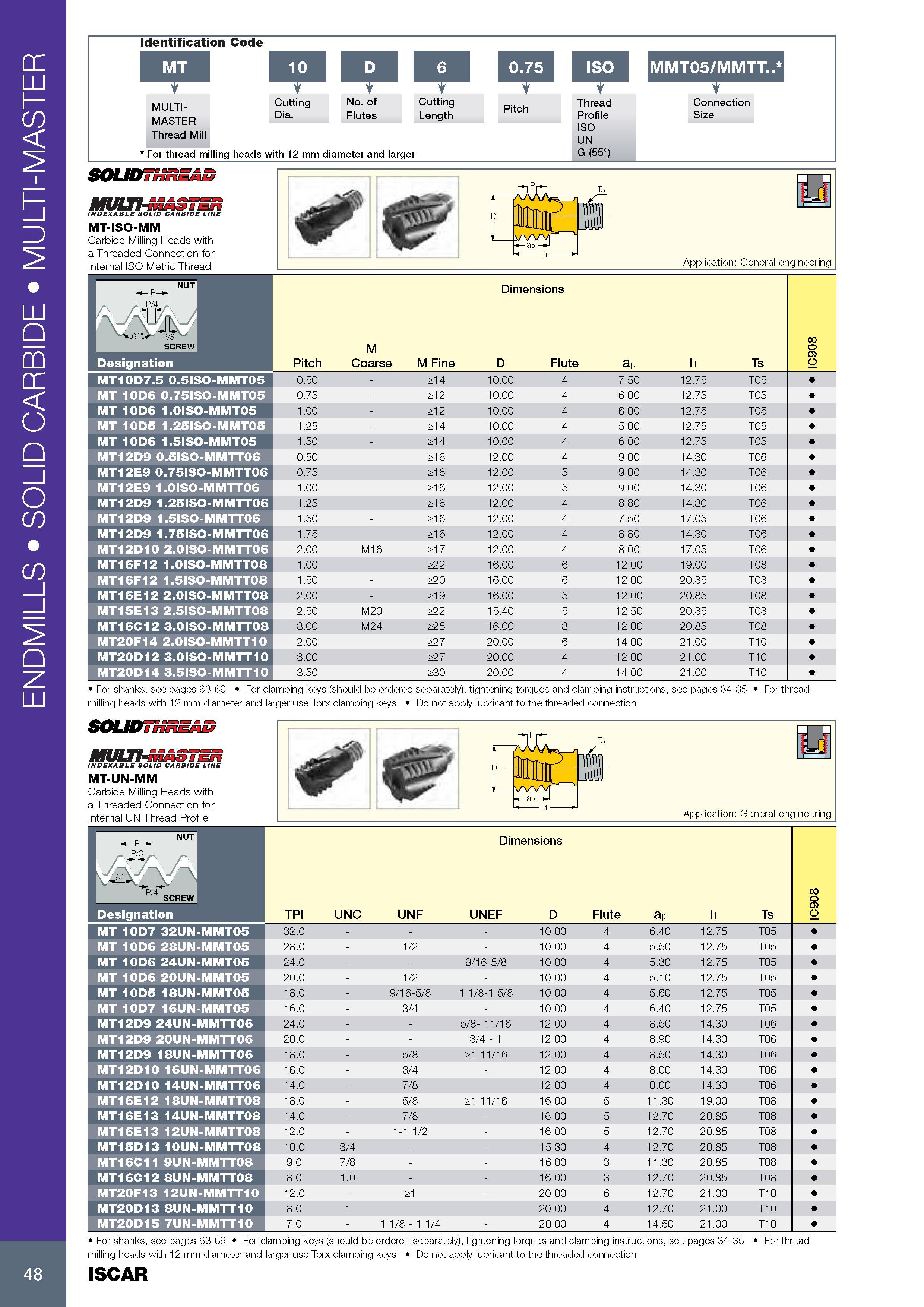

Сменные режущие твердосплавные головки Iscar с резьбовым разъемом для фрезерования Обозначение Основные размеры Комплектующие Изображение ENDMILLS _ SOLID CARBIDE MULTI-MASTER Identification Code MT 10 d 6 1 0.75 1 ISO lMMT05/MMTT.. MULTIMASTER Thread Mill Cutting Dia. No. of Cutting Flutes Length Pitch Thread Profile Connection Size ISO UN For thread milling heads with 12 mm diameter and larger G (55°) SOUDTHRi MULTI- INDEXABLE SOLID CARBIDE LINE MT-ISO-MM Carbide Milling Heads with a Threaded Connection for Internal ISO Metric Thread Application: General engineering Размеры в мм Dimensions Обозначение Designation Pitch Coarse M Fine D Flute ap l1 Ts 05 o MT10D7.5 0.5ISO-MMT05 0.50 - >14 10.00 4 7.50 12.75 T05 MT 10D6 0.75ISO-MMT05 0.75 - >12 10.00 4 6.00 12.75 T05 MT 10D6 1.0ISO-MMT05 1.00 - >12 10.00 4 6.00 12.75 T05 MT 10D5 1.25ISO-MMT05 1.25 - >14 10.00 4 5.00 12.75 T05 MT 10D6 1.5ISO-MMT05 1.50 - >14 10.00 4 6.00 12.75 T05 MT12D9 0.5ISO-MMTT06 0.50 >16 12.00 4 9.00 14.30 T06 MT12E9 0.75ISO-MMTT06 0.75 >16 12.00 5 9.00 14.30 T06 MT12E9 1.0ISO-MMTT06 1.00 >16 12.00 5 9.00 14.30 T06 MT12D9 1.25ISO-MMTT06 1.25 >16 12.00 4 8.80 14.30 T06 MT12D9 1.5ISO-MMTT06 1.50 - >16 12.00 4 7.50 17.05 T06 MT12D9 1.75ISO-MMTT06 1.75 >16 12.00 4 8.80 14.30 T06 MT12D10 2.0ISO-MMTT06 2.00 M16 >17 12.00 4 8.00 17.05 T06 MT16F12 1.0ISO-MMTT08 1.00 >22 16.00 6 12.00 19.00 T08 MT16F12 1.5ISO-MMTT08 1.50 - >20 16.00 6 12.00 20.85 T08 MT16E12 2.0ISO-MMTT08 2.00 - >19 16.00 5 12.00 20.85 T08 MT15E13 2.5ISO-MMTT08 2.50 M20 >22 15.40 5 12.50 20.85 T08 MT16C12 3.0ISO-MMTT08 3.00 M24 >25 16.00 3 12.00 20.85 T08 MT20F14 2.0ISO-MMTT10 2.00 >27 20.00 6 14.00 21.00 T10 MT20D12 3.0ISO-MMTT10 3.00 >27 20.00 4 12.00 21.00 T10 MT20D14 3.5ISO-MMTT10 3.50 >30 20.00 4 14.00 21.00 T10 8 For shanks, see pages 63-69 milling heads with 12 mm diameter SOLIDTt MULTI-i INDEXABLE SOLID CARBIDE LINE MT-UN-MM Carbide Milling Heads with a Threaded Connection for Internal UN Thread Profile For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 For thread and larger use Torx clamping keys Do not apply lubricant to the threaded connection Application: General engineering Размеры в мм Dimensions Обозначение Designation TPI UNC UNF UNEF D Flute ap l1 Ts 05 o MT 10D7 32UN-MMT05 32.0 - 10.00 4 6.40 12.75 T05 MT 10D6 28UN-MMT05 28.0 - 1/2 - 10.00 4 5.50 12.75 T05 MT 10D6 24UN-MMT05 24.0 9/16-5/8 10.00 4 5.30 12.75 T05 MT 10D6 20UN-MMT05 20.0 - 1/2 - 10.00 4 5.10 12.75 T05 MT 10D5 18UN-MMT05 18.0 - 9/16-5/8 1 1/8-1 5/8 10.00 4 5.60 12.75 T05 MT 10D7 16UN-MMT05 16.0 - 3/4 - 10.00 4 6.40 12.75 T05 MT12D9 24UN-MMTT06 24.0 5/8- 11/16 12.00 4 8.50 14.30 T06 MT12D9 20UN-MMTT06 20.0 3/4 - 1 12.00 4 8.90 14.30 T06 MT12D9 18UN-MMTT06 18.0 - 5/8 >1 11/16 12.00 4 8.50 14.30 T06 MT12D10 16UN-MMTT06 16.0 - 3/4 - 12.00 4 8.00 14.30 T06 MT12D10 14UN-MMTT06 14.0 - 7/8 12.00 4 0.00 14.30 T06 MT16E12 18UN-MMTT08 18.0 - 5/8 >1 11/16 16.00 5 11.30 19.00 T08 MT16E13 14UN-MMTT08 14.0 - 7/8 - 16.00 5 12.70 20.85 T08 MT16E13 12UN-MMTT08 12.0 - 1-1 1/2 - 16.00 5 12.70 20.85 T08 MT15D13 10UN-MMTT08 10.0 3/4 15.30 4 12.70 20.85 T08 MT16C11 9UN-MMTT08 9.0 7/8 16.00 3 11.30 20.85 T08 MT16C12 8UN-MMTT08 8.0 1.0 16.00 3 12.70 20.85 T08 MT20F13 12UN-MMTT10 12.0 - >1 - 20.00 6 12.70 21.00 T10 MT20D13 8UN-MMTT10 8.0 1 20.00 4 12.70 21.00 T10 MT20D15 7UN-MMTT10 7.0 - 1 1/8 - 1 1/4 - 20.00 4 14.50 21.00 T10 8 For shanks, see pages 63-69 milling heads with 12 mm diameter ISCAR For clamping keys (should be and larger use Torx clamping ordered separately), tightening torques and clamping instructions, see pages 34-35 For thread keys Do not apply lubricant to the threaded connection Ts 48
