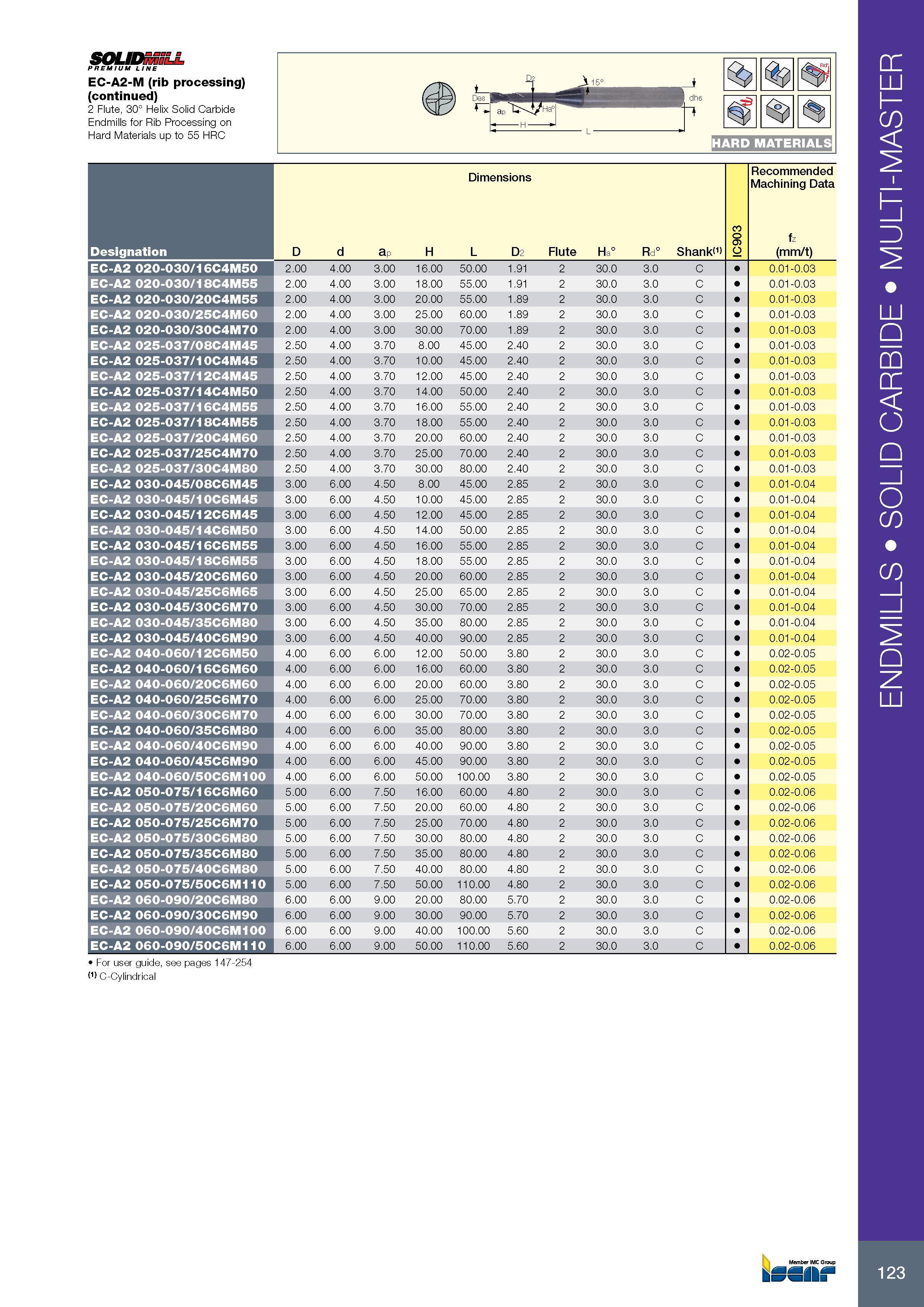

Концевые твердосплавные цельные фрезы Iscar Эскиз фрезерного инструмента с основными размерами Обозначение Режимы резания Подача на зуб PREMIUM LINE EC-A2-M

Концевые твердосплавные цельные фрезы Iscar Эскиз фрезерного инструмента с основными размерами Обозначение Режимы резания Подача на зуб PREMIUM LINE EC-A2-M (rib processing) (continued) 2 Flute, 30° Helix Solid Carbide Endmills for Rib Processing on Hard Materials up to 55 HRC HARD MATERIALS Размеры в мм Dimensions IC903 Режимы резания при металлообработке Recommended Machining Data Подача на зуб fz (mm/t) Обозначение Designation D d ap H L D2 Flute Ha° Rd° Shank EC-A2 020-030/16C4M50 2.00 4.00 3.00 16.00 50.00 1.91 2 30.0 3.0 C 0.01-0.03 EC-A2 020-030/18C4M55 2.00 4.00 3.00 18.00 55.00 1.91 2 30.0 3.0 C 0.01-0.03 EC-A2 020-030/20C4M55 2.00 4.00 3.00 20.00 55.00 1.89 2 30.0 3.0 C 0.01-0.03 EC-A2 020-030/25C4M60 2.00 4.00 3.00 25.00 60.00 1.89 2 30.0 3.0 C 0.01-0.03 EC-A2 020-030/30C4M70 2.00 4.00 3.00 30.00 70.00 1.89 2 30.0 3.0 C 0.01-0.03 EC-A2 025-037/08C4M45 2.50 4.00 3.70 8.00 45.00 2.40 2 30.0 3.0 C 0.01-0.03 EC-A2 025-037/10C4M45 2.50 4.00 3.70 10.00 45.00 2.40 2 30.0 3.0 C 0.01-0.03 EC-A2 025-037/12C4M45 2.50 4.00 3.70 12.00 45.00 2.40 2 30.0 3.0 C 0.01-0.03 EC-A2 025-037/14C4M50 2.50 4.00 3.70 14.00 50.00 2.40 2 30.0 3.0 C 0.01-0.03 EC-A2 025-037/16C4M55 2.50 4.00 3.70 16.00 55.00 2.40 2 30.0 3.0 C 0.01-0.03 EC-A2 025-037/18C4M55 2.50 4.00 3.70 18.00 55.00 2.40 2 30.0 3.0 C 0.01-0.03 EC-A2 025-037/20C4M60 2.50 4.00 3.70 20.00 60.00 2.40 2 30.0 3.0 C 0.01-0.03 EC-A2 025-037/25C4M70 2.50 4.00 3.70 25.00 70.00 2.40 2 30.0 3.0 C 0.01-0.03 EC-A2 025-037/30C4M80 2.50 4.00 3.70 30.00 80.00 2.40 2 30.0 3.0 C 0.01-0.03 EC-A2 030-045/08C6M45 3.00 6.00 4.50 8.00 45.00 2.85 2 30.0 3.0 C 0.01-0.04 EC-A2 030-045/10C6M45 3.00 6.00 4.50 10.00 45.00 2.85 2 30.0 3.0 C 0.01-0.04 EC-A2 030-045/12C6M45 3.00 6.00 4.50 12.00 45.00 2.85 2 30.0 3.0 C 0.01-0.04 EC-A2 030-045/14C6M50 3.00 6.00 4.50 14.00 50.00 2.85 2 30.0 3.0 C 0.01-0.04 EC-A2 030-045/16C6M55 3.00 6.00 4.50 16.00 55.00 2.85 2 30.0 3.0 C 0.01-0.04 EC-A2 030-045/18C6M55 3.00 6.00 4.50 18.00 55.00 2.85 2 30.0 3.0 C 0.01-0.04 EC-A2 030-045/20C6M60 3.00 6.00 4.50 20.00 60.00 2.85 2 30.0 3.0 C 0.01-0.04 EC-A2 030-045/25C6M65 3.00 6.00 4.50 25.00 65.00 2.85 2 30.0 3.0 C 0.01-0.04 EC-A2 030-045/30C6M70 3.00 6.00 4.50 30.00 70.00 2.85 2 30.0 3.0 C 0.01-0.04 EC-A2 030-045/35C6M80 3.00 6.00 4.50 35.00 80.00 2.85 2 30.0 3.0 C 0.01-0.04 EC-A2 030-045/40C6M90 3.00 6.00 4.50 40.00 90.00 2.85 2 30.0 3.0 C 0.01-0.04 EC-A2 040-060/12C6M50 4.00 6.00 6.00 12.00 50.00 3.80 2 30.0 3.0 C 0.02-0.05 EC-A2 040-060/16C6M60 4.00 6.00 6.00 16.00 60.00 3.80 2 30.0 3.0 C 0.02-0.05 EC-A2 040-060/20C6M60 4.00 6.00 6.00 20.00 60.00 3.80 2 30.0 3.0 C 0.02-0.05 EC-A2 040-060/25C6M70 4.00 6.00 6.00 25.00 70.00 3.80 2 30.0 3.0 C 0.02-0.05 EC-A2 040-060/30C6M70 4.00 6.00 6.00 30.00 70.00 3.80 2 30.0 3.0 C 0.02-0.05 EC-A2 040-060/35C6M80 4.00 6.00 6.00 35.00 80.00 3.80 2 30.0 3.0 C 0.02-0.05 EC-A2 040-060/40C6M90 4.00 6.00 6.00 40.00 90.00 3.80 2 30.0 3.0 C 0.02-0.05 EC-A2 040-060/45C6M90 4.00 6.00 6.00 45.00 90.00 3.80 2 30.0 3.0 C 0.02-0.05 EC-A2 040-060/50C6M100 4.00 6.00 6.00 50.00 100.00 3.80 2 30.0 3.0 C 0.02-0.05 EC-A2 050-075/16C6M60 5.00 6.00 7.50 16.00 60.00 4.80 2 30.0 3.0 C 0.02-0.06 EC-A2 050-075/20C6M60 5.00 6.00 7.50 20.00 60.00 4.80 2 30.0 3.0 C 0.02-0.06 EC-A2 050-075/25C6M70 5.00 6.00 7.50 25.00 70.00 4.80 2 30.0 3.0 C 0.02-0.06 EC-A2 050-075/30C6M80 5.00 6.00 7.50 30.00 80.00 4.80 2 30.0 3.0 C 0.02-0.06 EC-A2 050-075/35C6M80 5.00 6.00 7.50 35.00 80.00 4.80 2 30.0 3.0 C 0.02-0.06 EC-A2 050-075/40C6M80 5.00 6.00 7.50 40.00 80.00 4.80 2 30.0 3.0 C 0.02-0.06 EC-A2 050-075/50C6M110 5.00 6.00 7.50 50.00 110.00 4.80 2 30.0 3.0 C 0.02-0.06 EC-A2 060-090/20C6M80 6.00 6.00 9.00 20.00 80.00 5.70 2 30.0 3.0 C 0.02-0.06 EC-A2 060-090/30C6M90 6.00 6.00 9.00 30.00 90.00 5.70 2 30.0 3.0 C 0.02-0.06 EC-A2 060-090/40C6M100 6.00 6.00 9.00 40.00 100.00 5.60 2 30.0 3.0 C 0.02-0.06 EC-A2 060-090/50C6M110 6.00 6.00 9.00 50.00 110.00 5.60 2 30.0 3.0 C 0.02-0.06 For user guide, see pages 147-254 (1) C-Cylindrical Member IMC Group 123 ENDMILLS SOLID CARBIDE MULTI-MASTER
