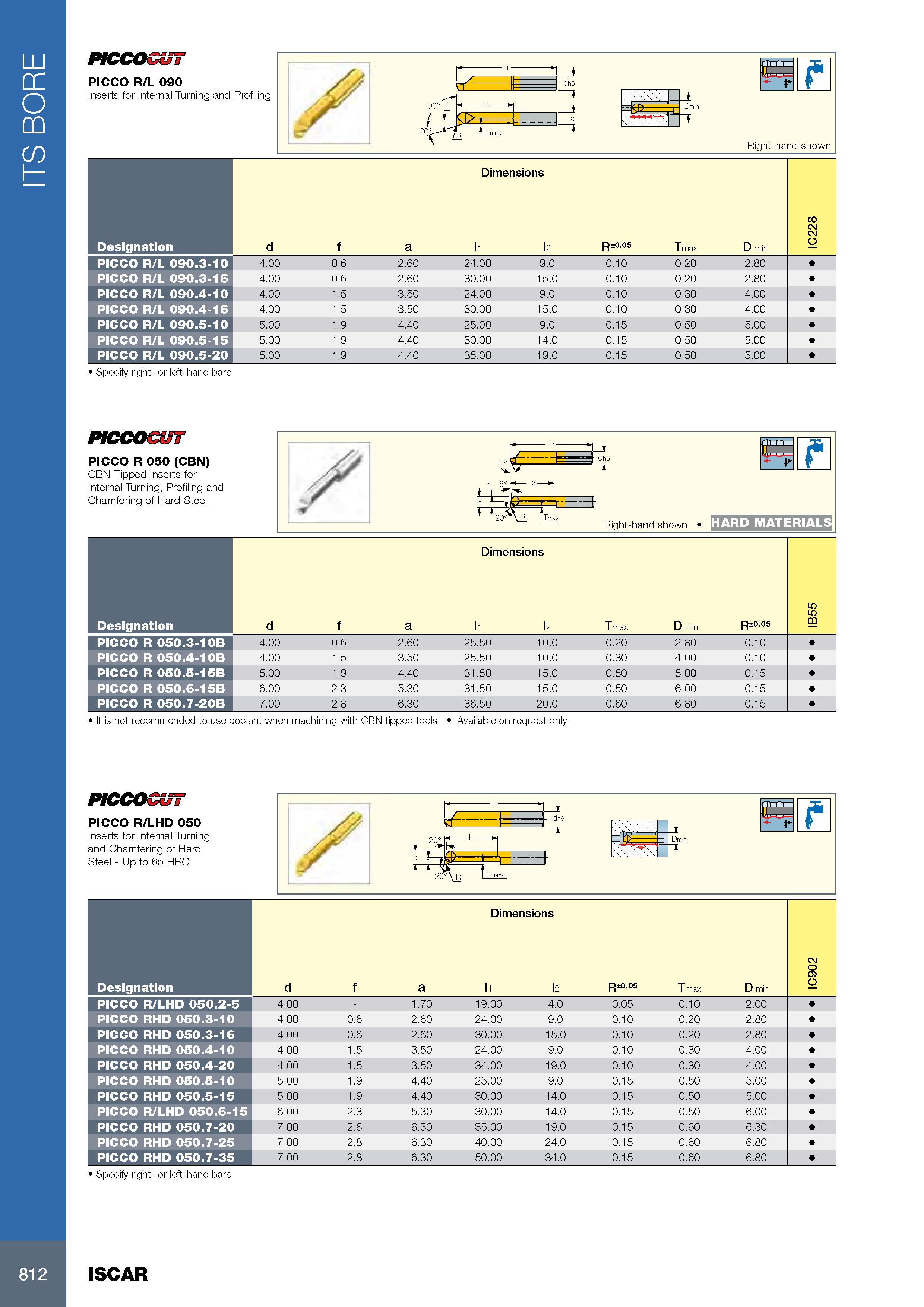

ITS BORE PICCOCUT PICCO R/L 090 Inserts for Internal Turning and Profiling H Right-hand shown Размеры в мм Dimensions Обозначение Designation d f a l1 l2 R±005 Tmax D min IC228 PICCO R/L 090.3-10 4.00 0.6 2.60 24.00 9.0 0.10 0.20 2.80 PICCO R/L 090.3-16 4.00 0.6 2.60 30.00 15.0 0.10 0.20 2.80 PICCO R/L 090.4-10 4.00 1.5 3.50 24.00 9.0 0.10 0.30 4.00 PICCO R/L 090.4-16 4.00 1.5 3.50 30.00 15.0 0.10 0.30 4.00 PICCO R/L 090.5-10 5.00 1.9 4.40 25.00 9.0 0.15 0.50 5.00 PICCO R/L 090.5-15 5.00 1.9 4.40 30.00 14.0 0.15 0.50 5.00 PICCO R/L 090.5-20 5.00 1.9 4.40 35.00 19.0 0.15 0.50 5.00 Specify right- or left-hand bars PICCOCUT PICCO R 050 (CBN) CBN Tipped Inserts for Internal Turning, Profiling and Chamfering of Hard Steel Размеры в мм Dimensions Обозначение Designation d f a l1 l2 T max D min R±°.°5 IB55 PICCO R 050.3-10B 4.00 0.6 2.60 25.50 10.0 0.20 2.80 0.10 PICCO R 050.4-10B 4.00 1.5 3.50 25.50 10.0 0.30 4.00 0.10 PICCO R 050.5-15B 5.00 1.9 4.40 31.50 15.0 0.50 5.00 0.15 PICCO R 050.6-15B 6.00 2.3 5.30 31.50 15.0 0.50 6.00 0.15 PICCO R 050.7-20B 7.00 2.8 6.30 36.50 20.0 0.60 6.80 0.15 It is not recommended to use coolant when machining with CBN tipped tools Available on request only PICCOCUT PICCO R/LHD 050 Inserts for Internal Turning and Chamfering of Hard Steel - Up to 65 HRC Размеры в мм Dimensions Обозначение Designation d f a l1 l2 R±°.°5 Tmax D min IC902 PICCO R/LHD 050.2-5 4.00 - 1.70 19.00 4.0 0.05 0.10 2.00 PICCO RHD 050.3-10 4.00 0.6 2.60 24.00 9.0 0.10 0.20 2.80 PICCO RHD 050.3-16 4.00 0.6 2.60 30.00 15.0 0.10 0.20 2.80 PICCO RHD 050.4-10 4.00 1.5 3.50 24.00 9.0 0.10 0.30 4.00 PICCO RHD 050.4-20 4.00 1.5 3.50 34.00 19.0 0.10 0.30 4.00 PICCO RHD 050.5-10 5.00 1.9 4.40 25.00 9.0 0.15 0.50 5.00 PICCO RHD 050.5-15 5.00 1.9 4.40 30.00 14.0 0.15 0.50 5.00 PICCO R/LHD 050.6-15 6.00 2.3 5.30 30.00 14.0 0.15 0.50 6.00 PICCO RHD 050.7-20 7.00 2.8 6.30 35.00 19.0 0.15 0.60 6.80 PICCO RHD 050.7-25 7.00 2.8 6.30 40.00 24.0 0.15 0.60 6.80 PICCO RHD 050.7-35 7.00 2.8 6.30 50.00 34.0 0.15 0.60 6.80 Specify right- or left-hand bars 812 ISCAR
