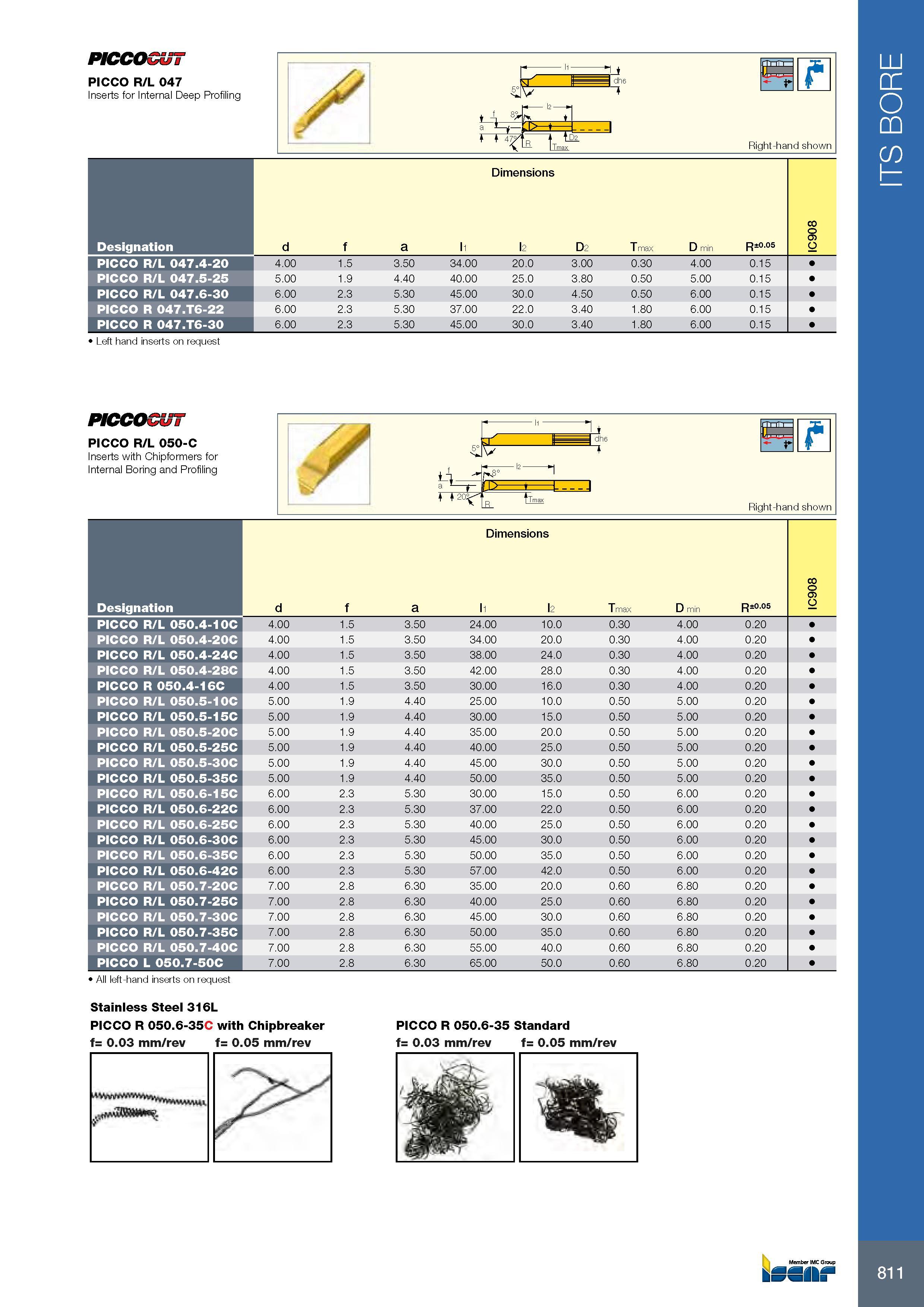

PICCOCUT PICCO R/L 047 Inserts for Internal Deep Profiling Размеры в мм Dimensions Обозначение Designation d f a ll l2 D2 T max D min R±0.05 IC908 PICCO R/L 047.4-20 4.00 1.5 3.50 34.00 20.0 3.00 0.30 4.00 0.15 PICCO R/L 047.5-25 5.00 1.9 4.40 40.00 25.0 3.80 0.50 5.00 0.15 PICCO R/L 047.6-30 6.00 2.3 5.30 45.00 30.0 4.50 0.50 6.00 0.15 PICCO R 047.T6-22 6.00 2.3 5.30 37.00 22.0 3.40 1.80 6.00 0.15 PICCO R 047.T6-30 6.00 2.3 5.30 45.00 30.0 3.40 1.80 6.00 0.15 Left hand inserts on request PICCOCUT PICCO R/L 050-C Inserts with Chipformers for Internal Boring and Profiling Размеры в мм Dimensions Обозначение Designation d f a l1 l2 Tmax D min R±°.°5 IC908 PICCO R/L 050.4-10C 4.00 1.5 3.50 24.00 10.0 0.30 4.00 0.20 PICCO R/L 050.4-20C 4.00 1.5 3.50 34.00 20.0 0.30 4.00 0.20 PICCO R/L 050.4-24C 4.00 1.5 3.50 38.00 24.0 0.30 4.00 0.20 PICCO R/L 050.4-28C 4.00 1.5 3.50 42.00 28.0 0.30 4.00 0.20 PICCO R 050.4-16C 4.00 1.5 3.50 30.00 16.0 0.30 4.00 0.20 PICCO R/L 050.5-10C 5.00 1.9 4.40 25.00 10.0 0.50 5.00 0.20 PICCO R/L 050.5-15C 5.00 1.9 4.40 30.00 15.0 0.50 5.00 0.20 PICCO R/L 050.5-20C 5.00 1.9 4.40 35.00 20.0 0.50 5.00 0.20 PICCO R/L 050.5-25C 5.00 1.9 4.40 40.00 25.0 0.50 5.00 0.20 PICCO R/L 050.5-30C 5.00 1.9 4.40 45.00 30.0 0.50 5.00 0.20 PICCO R/L 050.5-35C 5.00 1.9 4.40 50.00 35.0 0.50 5.00 0.20 PICCO R/L 050.6-15C 6.00 2.3 5.30 30.00 15.0 0.50 6.00 0.20 PICCO R/L 050.6-22C 6.00 2.3 5.30 37.00 22.0 0.50 6.00 0.20 PICCO R/L 050.6-25C 6.00 2.3 5.30 40.00 25.0 0.50 6.00 0.20 PICCO R/L 050.6-30C 6.00 2.3 5.30 45.00 30.0 0.50 6.00 0.20 PICCO R/L 050.6-35C 6.00 2.3 5.30 50.00 35.0 0.50 6.00 0.20 PICCO R/L 050.6-42C 6.00 2.3 5.30 57.00 42.0 0.50 6.00 0.20 PICCO R/L 050.7-20C 7.00 2.8 6.30 35.00 20.0 0.60 6.80 0.20 PICCO R/L 050.7-25C 7.00 2.8 6.30 40.00 25.0 0.60 6.80 0.20 PICCO R/L 050.7-30C 7.00 2.8 6.30 45.00 30.0 0.60 6.80 0.20 PICCO R/L 050.7-35C 7.00 2.8 6.30 50.00 35.0 0.60 6.80 0.20 PICCO R/L 050.7-40C 7.00 2.8 6.30 55.00 40.0 0.60 6.80 0.20 PICCO L 050.7-50C 7.00 2.8 6.30 65.00 50.0 0.60 6.80 0.20 All left-hand inserts on request Stainless Steel 316L PICCO R 050.6-35C with Chipbreaker PICCO R 050.6-35 Standard f= 0.03 mm/rev f= 0.05 mm/rev f= 0.03 mm/rev f= 0.05 mm/rev 811 ITS BORE
