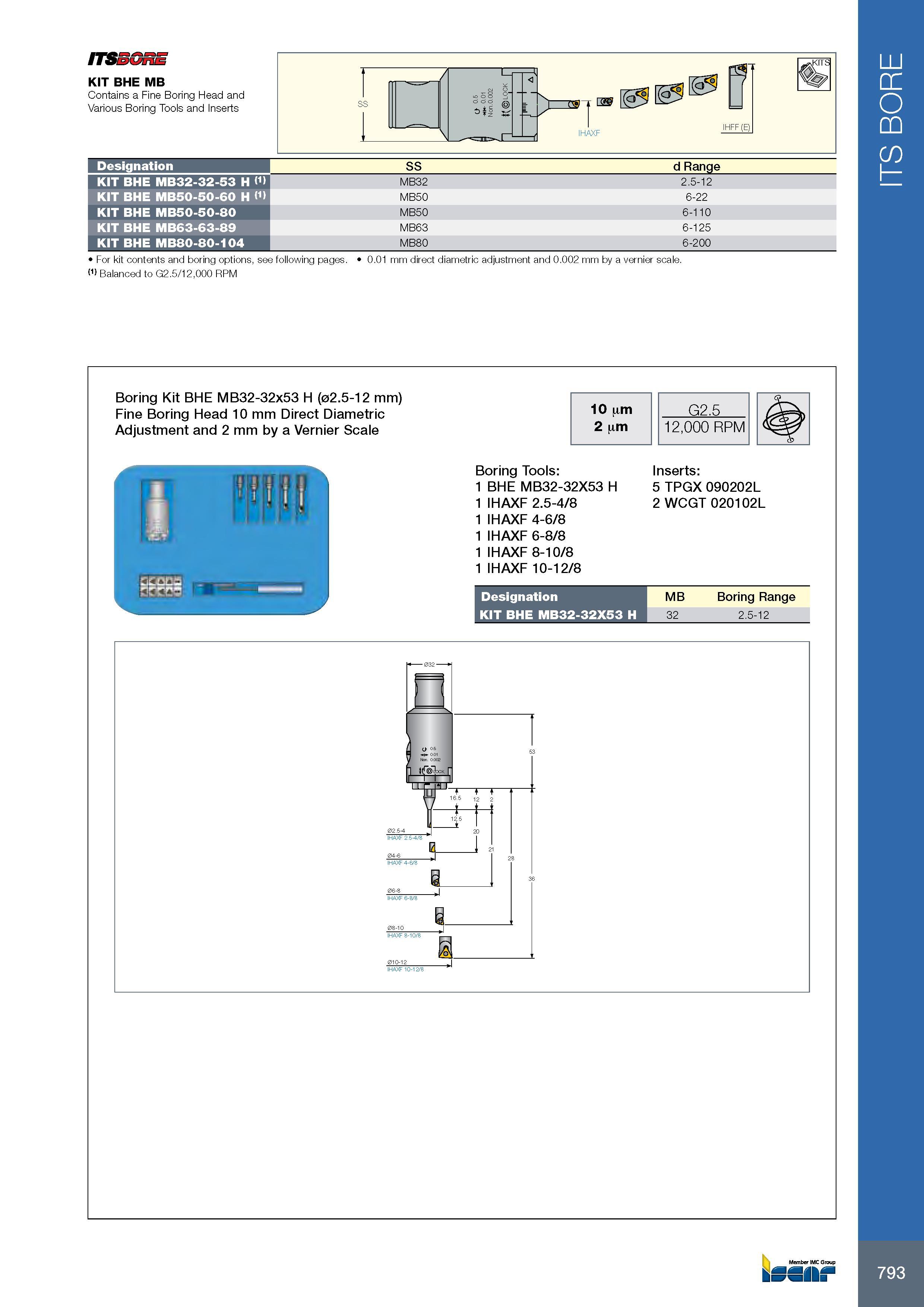

Designation SS d Range KIT BHE MB32-32-53 H <1> MB32 2.5-12 KIT BHE MB50-50-60 H <1> MB50 6-22 KIT BHE MB50-50-80 MB50 6-110 KIT BHE MB63-63-89 MB63 6-125 KIT BHE MB80-80-104 MB80 6-200 For kit contents and boring options, see following pages. 0.01 mm direct diametric adjustment and 0.002 mm by a vernier scale. (1) Balanced to G2.5/12,000 RPM Boring Kit BHE MB32-32x53 H (02.5-12 mm) Fine Boring Head 10 mm Direct Diametric Adjustment and 2 mm by a Vernier Scale G2.5 12,000 RPM Boring Tools: Inserts: 1 BHE MB32-32X53 H 5 TPGX 090202L 1 IHAXF 2.5-4/8 2 WCGT 020102L 1 IHAXF 4-6/8 1 IHAXF 6-8/8 1 IHAXF 8-10/8 1 IHAXF 10-12/8 Обозначение Designation MB Boring Range KIT BHE MB32-32X53 H 32 2.5-12 793 i I i ITS BORE
