794 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.790

Каталог ISCAR 2017 Ротационный инструмент Стр. 790 0794 ENG Lab2u

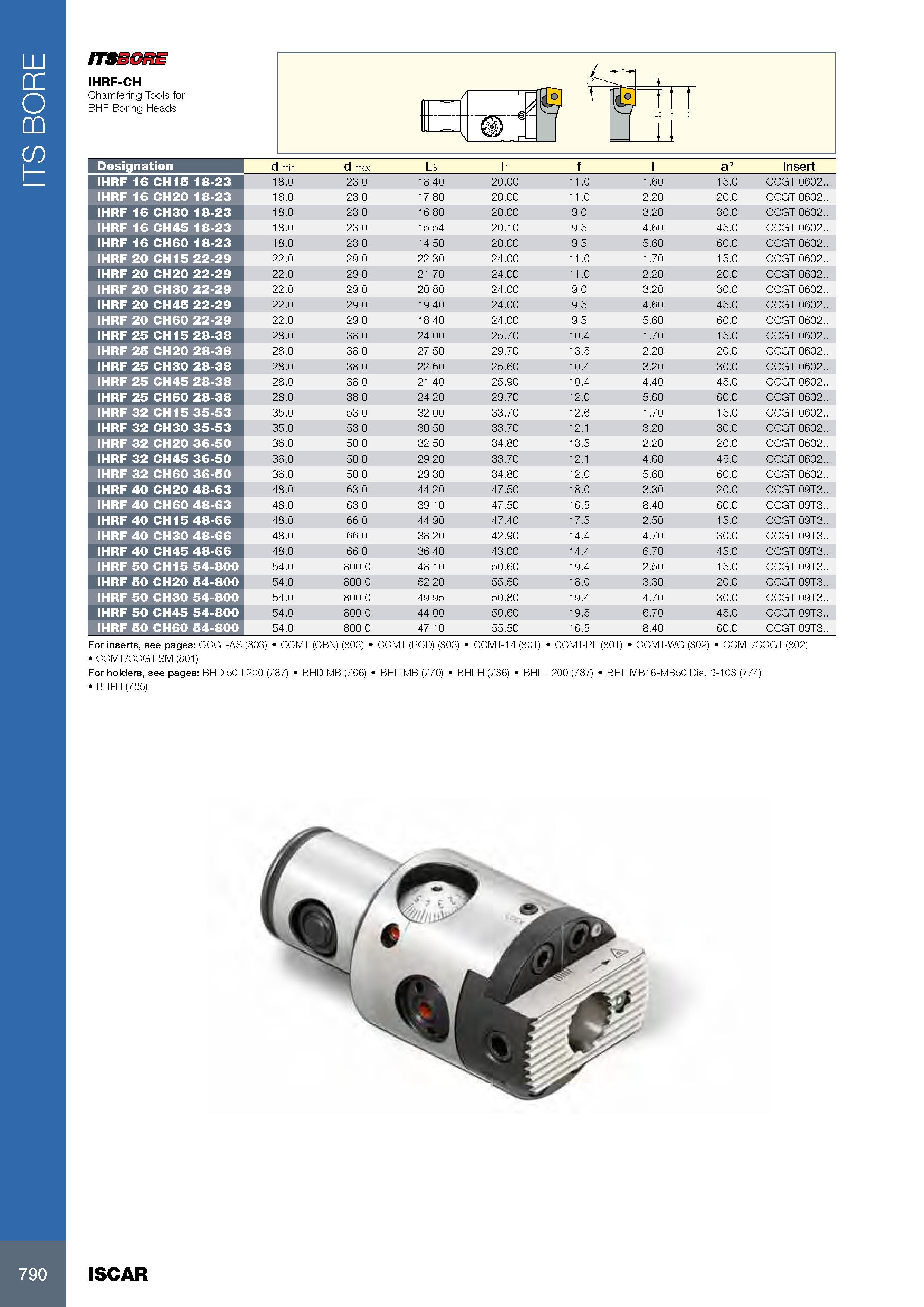

ITS BORE ITSBGRE IHRF-CH Chamfering Tools for BHF Boring Heads Обозначение Designation d min d max L3 l1 f l a° Insert IHRF 16 CH15 18-23 18.0 23.0 18.40 20.00 11.0 1.60 15.0 CCGT 0602... IHRF 16 CH20 18-23 18.0 23.0 17.80 20.00 11.0 2.20 20.0 CCGT 0602... IHRF 16 CH30 18-23 18.0 23.0 16.80 20.00 9.0 3.20 30.0 CCGT 0602... IHRF 16 CH45 18-23 18.0 23.0 15.54 20.10 9.5 4.60 45.0 CCGT 0602... IHRF 16 CH60 18-23 18.0 23.0 14.50 20.00 9.5 5.60 60.0 CCGT 0602... IHRF 20 CH15 22-29 22.0 29.0 22.30 24.00 11.0 1.70 15.0 CCGT 0602... IHRF 20 CH20 22-29 22.0 29.0 21.70 24.00 11.0 2.20 20.0 CCGT 0602... IHRF 20 CH30 22-29 22.0 29.0 20.80 24.00 9.0 3.20 30.0 CCGT 0602... IHRF 20 CH45 22-29 22.0 29.0 19.40 24.00 9.5 4.60 45.0 CCGT 0602... IHRF 20 CH60 22-29 22.0 29.0 18.40 24.00 9.5 5.60 60.0 CCGT 0602... IHRF 25 CH15 28-38 28.0 38.0 24.00 25.70 10.4 1.70 15.0 CCGT 0602... IHRF 25 CH20 28-38 28.0 38.0 27.50 29.70 13.5 2.20 20.0 CCGT 0602... IHRF 25 CH30 28-38 28.0 38.0 22.60 25.60 10.4 3.20 30.0 CCGT 0602... IHRF 25 CH45 28-38 28.0 38.0 21.40 25.90 10.4 4.40 45.0 CCGT 0602... IHRF 25 CH60 28-38 28.0 38.0 24.20 29.70 12.0 5.60 60.0 CCGT 0602... IHRF 32 CH15 35-53 35.0 53.0 32.00 33.70 12.6 1.70 15.0 CCGT 0602... IHRF 32 CH30 35-53 35.0 53.0 30.50 33.70 12.1 3.20 30.0 CCGT 0602... IHRF 32 CH20 36-50 36.0 50.0 32.50 34.80 13.5 2.20 20.0 CCGT 0602... IHRF 32 CH45 36-50 36.0 50.0 29.20 33.70 12.1 4.60 45.0 CCGT 0602... IHRF 32 CH60 36-50 36.0 50.0 29.30 34.80 12.0 5.60 60.0 CCGT 0602... IHRF 40 CH20 48-63 48.0 63.0 44.20 47.50 18.0 3.30 20.0 CCGT 09T3... IHRF 40 CH60 48-63 48.0 63.0 39.10 47.50 16.5 8.40 60.0 CCGT 09T3... IHRF 40 CH15 48-66 48.0 66.0 44.90 47.40 17.5 2.50 15.0 CCGT 09T3... IHRF 40 CH30 48-66 48.0 66.0 38.20 42.90 14.4 4.70 30.0 CCGT 09T3... IHRF 40 CH45 48-66 48.0 66.0 36.40 43.00 14.4 6.70 45.0 CCGT 09T3... IHRF 50 CH15 54-800 54.0 800.0 48.10 50.60 19.4 2.50 15.0 CCGT 09T3... IHRF 50 CH20 54-800 54.0 800.0 52.20 55.50 18.0 3.30 20.0 CCGT 09T3... IHRF 50 CH30 54-800 54.0 800.0 49.95 50.80 19.4 4.70 30.0 CCGT 09T3... IHRF 50 CH45 54-800 54.0 800.0 44.00 50.60 19.5 6.70 45.0 CCGT 09T3... IHRF 50 CH60 54-800 54.0 800.0 47.10 55.50 16.5 8.40 60.0 CCGT 09T3... For inserts, see pages: CCGT-AS (803) CCMT (CBN) (803) CCMT (PCD) (803) CCMT-14 (801) CCMT-PF (801) CCMT-WG (802) CCMT/CCGT (802) CCMT/CCGT-SM (801) For holders, see pages: BHD 50 00 (787) BHD MB (766) BHE MB (770) BHEH (786) BHF L200 (787) BHF MB16-MB50 Dia. 6-108 (774) BHFH (785) 790 ISCAR
