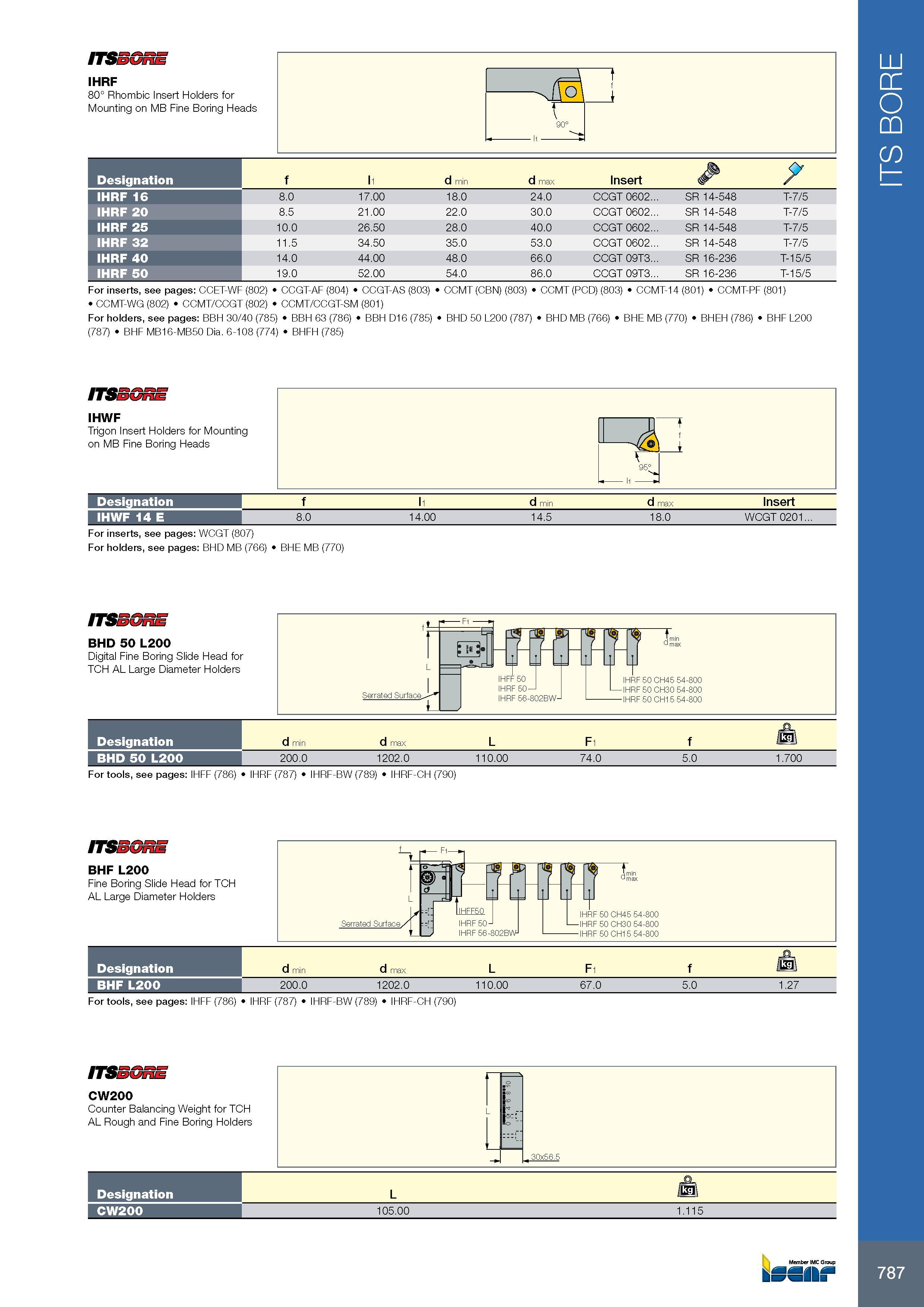

787 ITSEGnE IHRF 80° Rhombic Insert Holders for Mounting on MB Fine Boring Heads Обозначение Designation f l1 d min d max Insert & IHRF 16 8.0 17.00 18.0 24.0 CCGT 0602... SR 14-548 T-7/5 IHRF 20 8.5 21.00 22.0 30.0 CCGT 0602... SR 14-548 T-7/5 IHRF 25 10.0 26.50 28.0 40.0 CCGT 0602... SR 14-548 T-7/5 IHRF 32 11.5 34.50 35.0 53.0 CCGT 0602... SR 14-548 T-7/5 IHRF 40 14.0 44.00 48.0 66.0 CCGT 09T3... SR 16-236 T-15/5 IHRF 50 19.0 52.00 54.0 86.0 CCGT 09T3... SR 16-236 T-15/5 For inserts, see pages: CCET-WF (802) CCGT-AF (804) CCGT-AS (803) CCMT (CBN) (803) CCMT (PCD) (803) CCMT-14 (801) CCMT-PF (801) CCMT-WG (802) CCMT/CCGT (802) CCMT/CCGT-SM (801) For holders, see pages: BBH 30/40 (785) BBH 63 (786) BBH D16 (785) BHD 50 L200 (787) BHD MB (766) BHE MB (770) BHEH (786) BHF L200 (787) BHF MB16-MB50 Dia. 6-108 (774) BHFH (785) ITSEGnE IHWF Trigon Insert Holders for Mounting on MB Fine Boring Heads Обозначение Designation f 1 d min d max Insert 8.0 14.00 14.5 18.0 WCGT 0201... For inserts, see pages: WCGT (807) For holders, see pages: BHD MB (766) BHE MB (770) IHWF 14 E ITSEGnE BHD 50 L200 Digital Fine Boring Slide Head for TCH AL Large Diameter Holders Обозначение Designation BHD 50 L200 d min d max L F1 f 200.0 1202.0 110.00 74.0 5.0 1.700 For tools, see pages: IHFF (786) IHRF (787) IHRF-BW (789) IHRF-CH (790) ITSEGRE BHF L200 Fine Boring Slide Head for TCH AL Large Diameter Holders Обозначение Designation BHF L200 d min d max L F1 f 200.0 1202.0 110.00 67.0 5.0 1.27 For tools, see pages: IHFF (786) IHRF (787) IHRF-BW (789) IHRF-CH (790) ITSEGnE CW200 Counter Balancing Weight for TCH AL Rough and Fine Boring Holders -f 30x56.5 L (9) 105.00 1.115 Обозначение Designation CW200 ITS BORE
